Bracket, Engine Mount, Rear: Installation

Courtesy of CHRYSLER GROUP, LLC

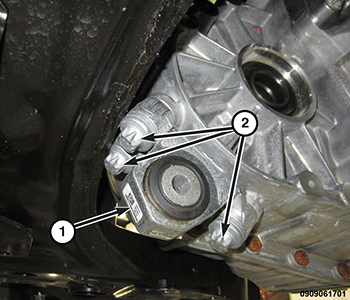

1. Install the rear engine mount bracket (1) and tighten the three bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
2. Install the rear engine mount insulator. Refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
3. Remove the support and lower the vehicle.
