Bracket, Engine Mount, Left: Installation

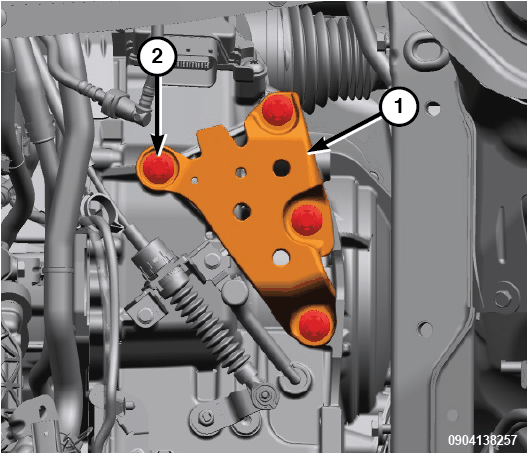

GC0186562Courtesy of CHRYSLER GROUP, LLC
  1. Install the left engine mount bracket (1) and tighten the four bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the left engine mount insulator. Refer to INSULATOR, ENGINE MOUNT, LEFT, INSTALLATION .
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
