Seal, Crankshaft Oil, Front: Installation

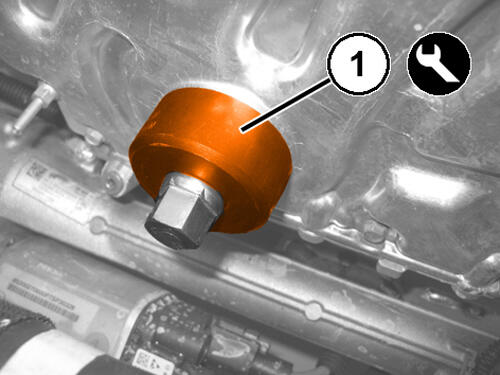

GC0180969Courtesy of CHRYSLER GROUP, LLC
  1. Install a new oil seal on the timing cover using the (special tool #9506, Installer, Oil Seal) (1).
  2. Install the vibration damper on the front of the crankshaft. Refer to DAMPER, VIBRATION, INSTALLATION .
