Plate, Skid, Side: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

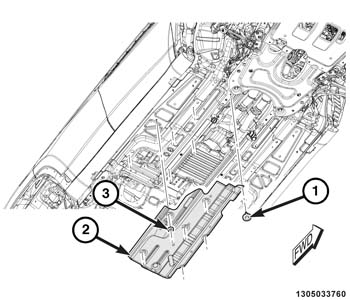

Right skid plate shown in illustration, left skid plate is similar.

Position the right skid plate (2). Install the bolts (1) and nut (3).
Tighten the skid plate fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
