Isolator, Front CROSSMEMBER, Torsion: Removal

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the exhaust pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL .
Remove the rear engine mount bracket. Refer to INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL .
NOTE:
Prior to using pressing tools, lubricate the screw-type threads to provide ease of use and promote tool longevity.

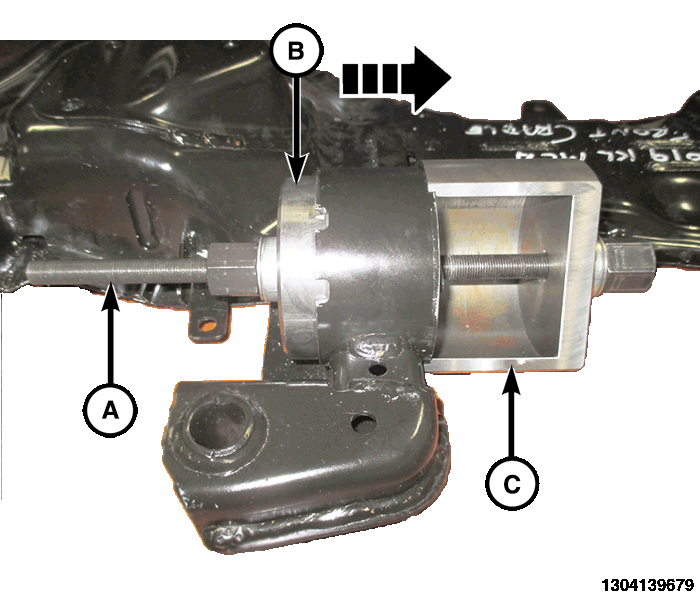

Assemble tools over isolator crossmember assembly as shown:
1. (special tool #2026900170, Kit, Pressing Tool)
2. (special tool #2054501130, Remover, Bushing)
3. (special tool #2054502130, Receiver, Bushing Removal)
Courtesy of CHRYSLER GROUP, LLC

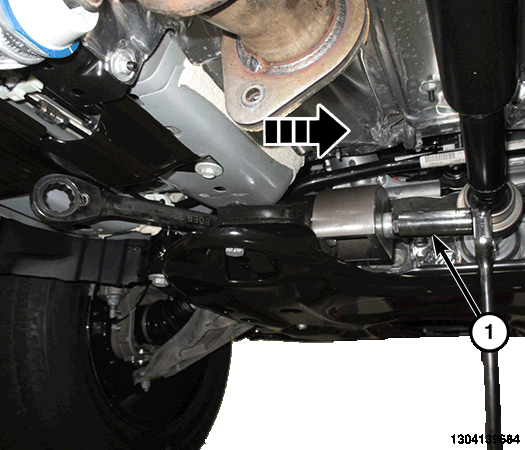

Tighten the pressing tool (1) and remove the isolator.
