Hook(S), Tow, Front: Installation

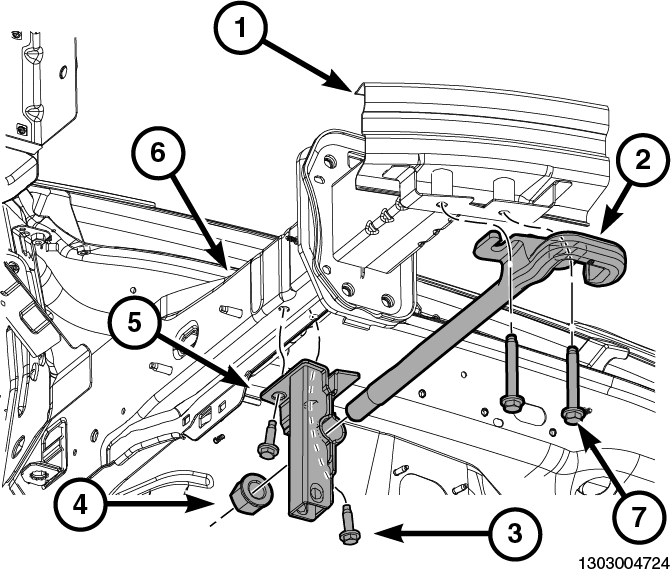

GC0187092Courtesy of CHRYSLER GROUP, LLC
  1. Install the bracket (5) and install the bolts (3).
  2. Install the hook (2).
  3. Install the bolts (7) and install the nut (4).
  4. Tighten the fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  5. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
