Module, Digital Audio Broadcasting Antenna: Description

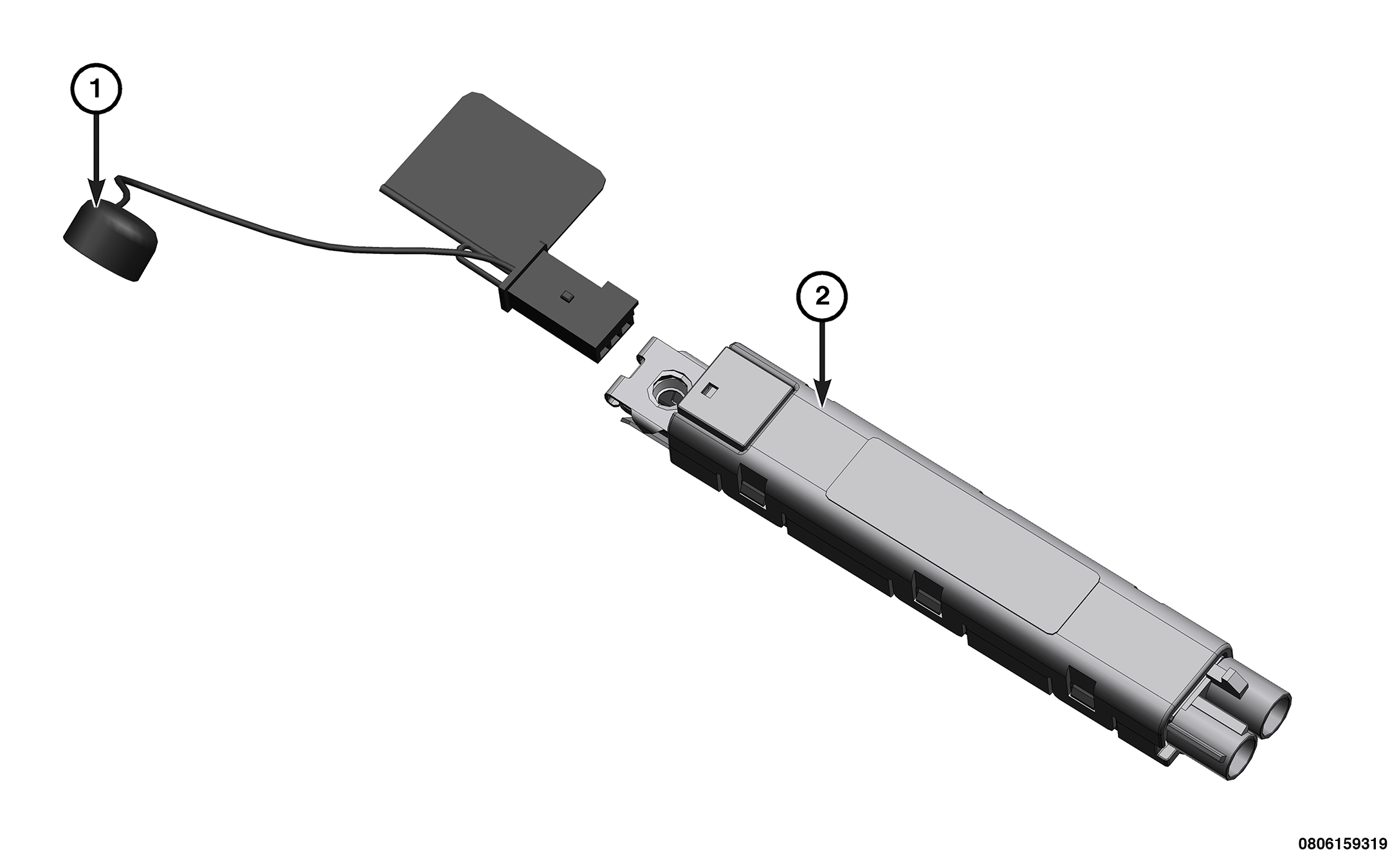

The digital audio broadcast antenna module (2) is an electronic circuit component designed to capture and enhance RF (Radio Frequency) signals in a digital audio broadcast band. The digital audio broadcast antenna module is mounted to the left C-pillar midway up the rear quarter glass. The module is grounded through the mounting bracket and fastener. The module has a one wire connector (1) that connects to the integrated digital audio broadcast antenna grid located on the left rear quarter window. There is also a coax cable connector coming from the radio. The radio supplies 9-volts to the module through the coax cable.
