Media Hub: Description

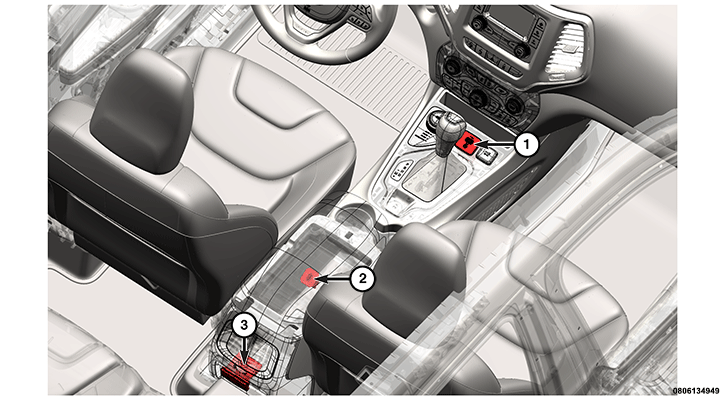

The media hub (1) is located in the front of the center console, below the Integrated Center Stack (ICS) Module.
The media hub is a centralized media connection point on the vehicle that contains the following connection points:
- USB port - Front media hub
- USB port - Inside console
- Auxiliary input jack (3.5 mm) - Front media hub
There is a full function on some models or charge only USB port (2) inside the center console. In addition, there is a second charge only USB hub (3) on the rear of the center console with two USB-C ports and two more standard USB-A ports.
The media hub USB ports provide 5-volts at 2.5 amps to charge the media device battery and will continue to charge for 60 minutes after the ignition switch is turned to the OFF position. The media hub is illuminated and dimmable, and incorporates the Apple Carplay, and Google Android Auto features for the audio system.
For additional information, refer to the Uconnect® Access Users' Manual.
