Muffler Heat Shield

WARNING: This page is about a different variant/trim than selected.
  1. Remove the muffler. Refer to MUFFLER, EXHAUST, REMOVAL .

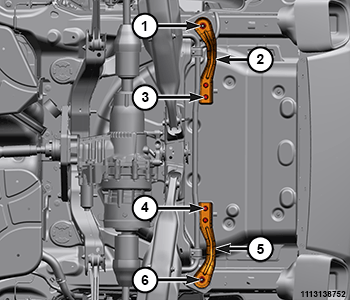

    GC0186727Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (3) and nut (1) and the bracket (2).
  3. Remove the bolts (4) and nut (6) and the bracket (5).

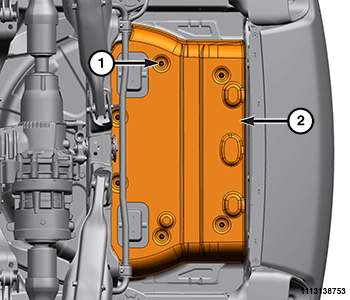

    GC0186673Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1) and the center heat shield (2).
