Front Heat Shield

WARNING: This page is about a different variant/trim than selected.
  1. Remove the propeller shaft. Refer to DRIVESHAFT, REMOVAL .

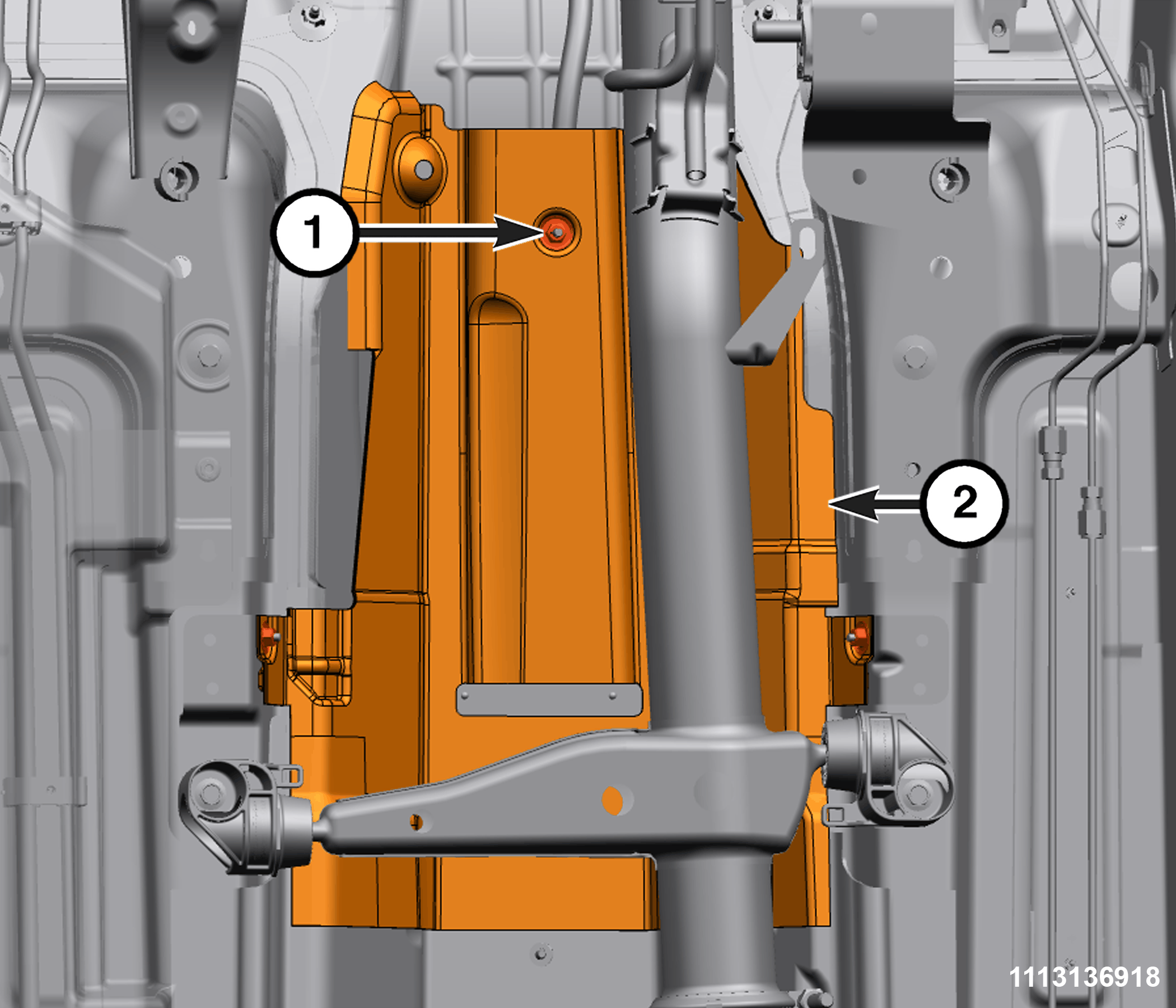

    GC0186960Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1) and the front heat shield (2).
