Center Heat Shield

WARNING: This page is about a different variant/trim than selected.

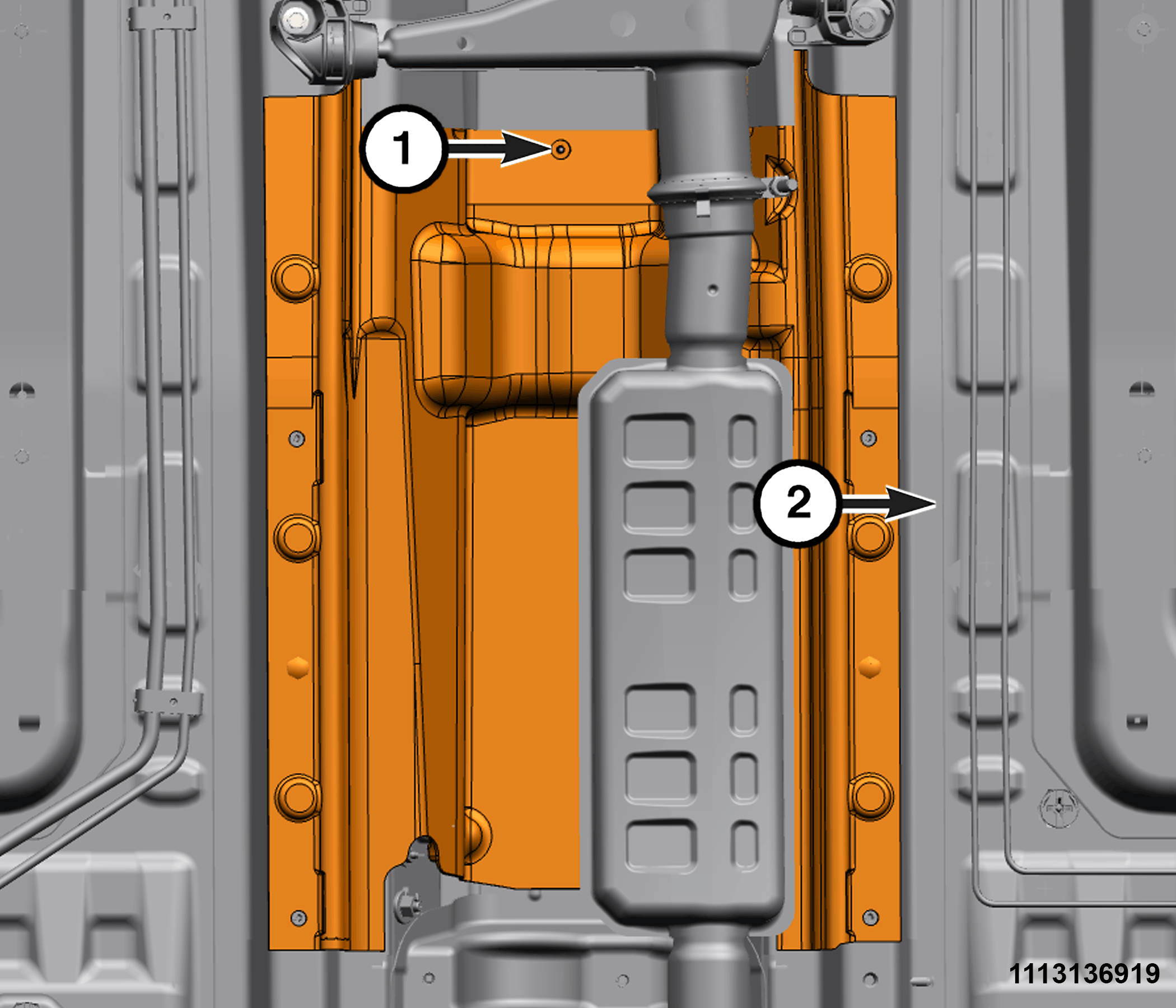

GC0187181Courtesy of CHRYSLER GROUP, LLC
  1. Install the center heat shield (2) and securely tighten the fasteners (1).
  2. Install the left side skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
  3. Install the right side skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
  4. Install the propeller shaft. Refer to DRIVESHAFT, INSTALLATION .
