Turbocharger Oil Supply Pipe
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the turbocharger oil return pipe from the turbocharger. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL .

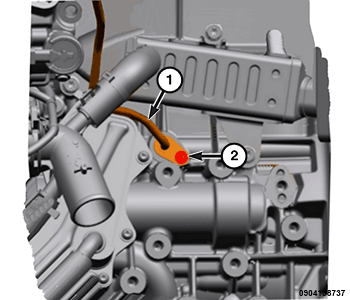

- Remove the bolt (2) and disconnect turbocharger oil supply pipe (1) from the crankcase.
- Remove the bolt (3) from the turbocharger oil supply pipe (1) on the turbocharger.
- Remove the nut (2) securing the oil dipstick tube, coolant return pipe and oil supply pipe (2) to the turbocharger.

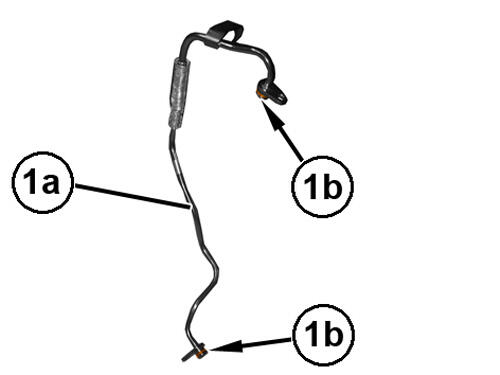

- Remove the turbocharger oil supply pipe (1a), complete with O-rings (1b).
