Oil Pump Pick-Up Except TRAILHAWK

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the oil pan. Refer to PAN, OIL, REMOVAL .

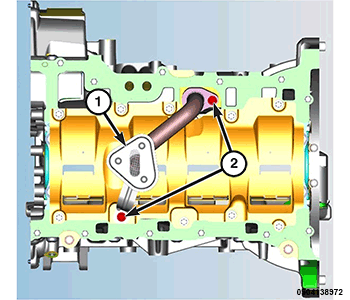

    GC0187175Courtesy of CHRYSLER GROUP, LLC
  4. Remove the screws (2) and remove oil pump pick-up tube (1).

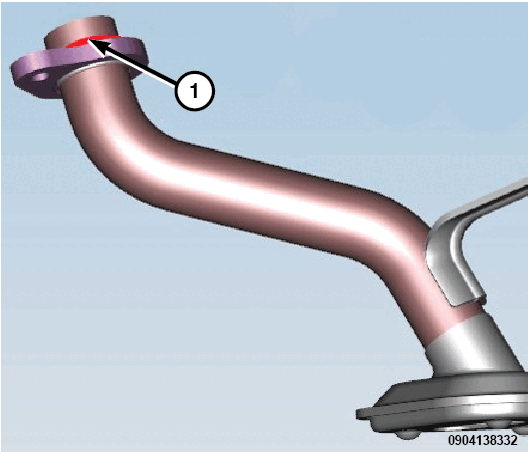

    GC0186864Courtesy of CHRYSLER GROUP, LLC
  5. Remove and discard the O-ring seal (1).
