Oil Pump Pick-Up - TRAILHAWK

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the lower oil pan. Refer to PAN, OIL, REMOVAL .

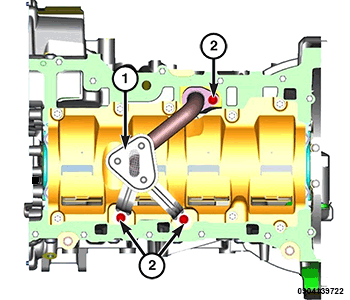

    GC0186543Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Shown in illustration with the upper oil pan removed for clarity. The oil pump pick-up tube can be removed though the lower oil pan opening.

  4. Remove the screws (2) and remove the oil pump pick-up tube (1).

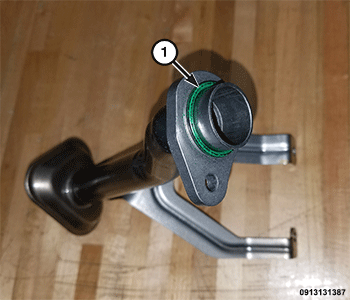

    GC0181878Courtesy of CHRYSLER GROUP, LLC
  5. Remove and discard the O-ring seal (1).
