Windage Tray - TRAILHAWK

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the upper oil pan. Refer to PAN, OIL, REMOVAL .
  4. Remove the oil pump pick-up. Refer to PICK-UP, OIL PUMP, REMOVAL .

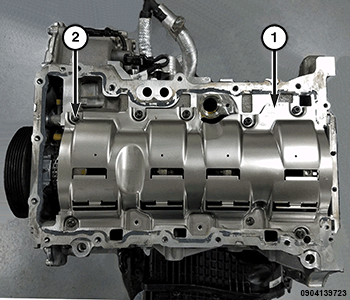

    GC0186973Courtesy of CHRYSLER GROUP, LLC
  5. Remove the eight bolts (2) and remove the windage tray (1).
