Oil Pan Except TRAILHAWK

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the oil dipstick tube. Refer to DIPSTICK TUBE, ENGINE OIL, REMOVAL .
  3. Remove the oil filter and drain the engine oil. Refer to ENGINE OIL, STANDARD PROCEDURE .
  4. Remove the cross under pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL .
    GC0187173Courtesy of CHRYSLER GROUP, LLC
  5. If equipped, remove the four bolts (2) and remove the acoustic cover (1) from the oil pan.
    GC0186619Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two bolts (2) from the electric vacuum pump mounting bracket and reposition the vacuum pump (1) away from the Power Transfer Unit (PTU) bracket.
    GC0187085Courtesy of CHRYSLER GROUP, LLC
  7. Remove the following bolts and remove the PTU support bracket (1):
    • Oil pan bolt (4).
    • Two engine block bolts (2).
    • Four PTU bolts (3).
    GC0186873Courtesy of CHRYSLER GROUP, LLC
  8. Remove the four screw covers (1).
    GC0186552Courtesy of CHRYSLER GROUP, LLC
  9. Remove the four oil pan to transmission bolts (1).
    GC0186984Courtesy of CHRYSLER GROUP, LLC
  10. Remove the seventeen oil pan to crankcase bolts (1).
    GC0187139Courtesy of CHRYSLER GROUP, LLC

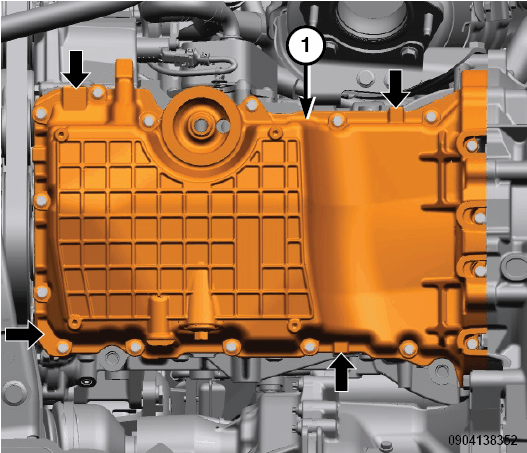

  11. Use a suitable tool at the four indicated pry points to release the oil pan (1) from the sealant.
    GC0187144Courtesy of CHRYSLER GROUP, LLC
  12. Remove the oil supply and return seal (2) from the oil pan flange.
  13. Remove sealant residues (1) from the oil pan flange and check the integrity of the locating dowels.
  14. Remove sealant residues from the lower engine crankcase flange.
