Windage Tray Except TRAILHAWK

WARNING: This page is about a different variant/trim than selected.

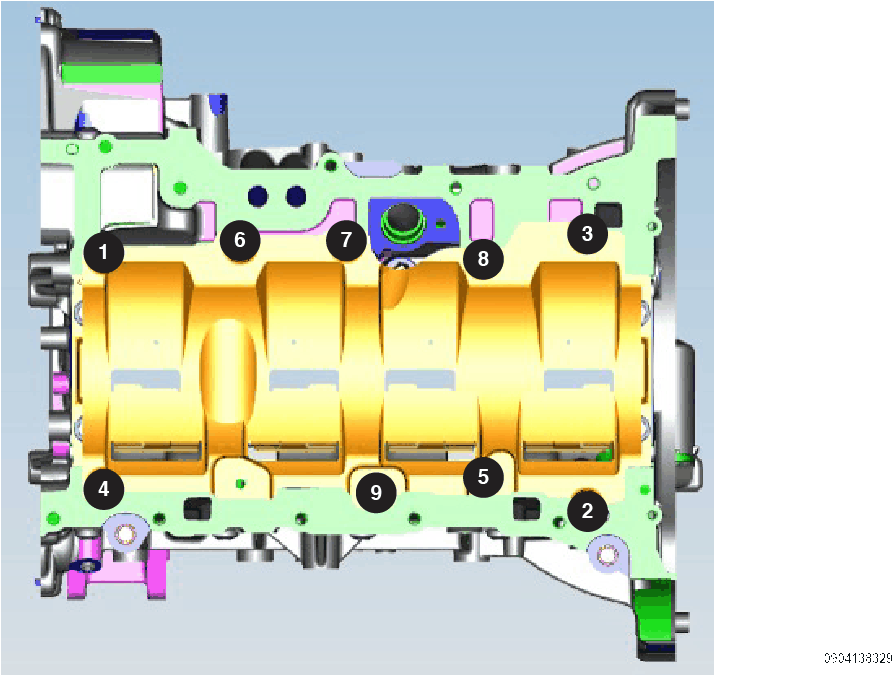

Fig 1: Windage Tray Bolts Tightening Sequence
GC0186826Courtesy of CHRYSLER GROUP, LLC
  1. Install the windage tray and nine bolts in the locations shown in illustration. The tenth bolt will be installed with the oil pump pick-up.
  2. Tighten the bolts in the sequence shown in illustration to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the oil pump pick-up. Refer to PICK-UP, OIL PUMP, INSTALLATION .
  4. Install the oil pan. Refer to PAN, OIL, INSTALLATION .
  5. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL, STANDARD PROCEDURE .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  7. Remove the support and lower the vehicle.
