Lower Oil Pan - TRAILHAWK
WARNING: This page is about a different variant/trim than selected.
- Clean the upper and lower oil pan sealing surfaces with isopropyl alcohol in preparation for sealant application.CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.
CAUTION:Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
- Apply a 2 to 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the lower oil pan sealing surface.NOTE:
The bead of sealant must be uninterrupted.

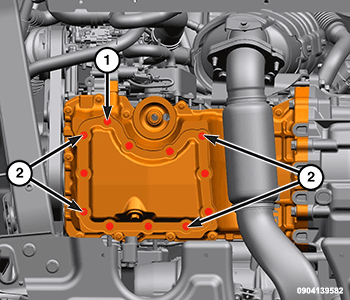

- Install the lower oil pan to the upper oil pan with eight bolts (1) and stud bolts (2) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL, STANDARD PROCEDURE .
- Install the skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
- Remove the support and lower the vehicle.
