Rear Knock Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .

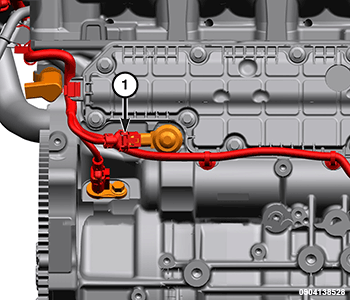

    GC0183347Courtesy of CHRYSLER GROUP, LLC
  3. Unlock and disconnect the knock sensor wire harness connector (1).

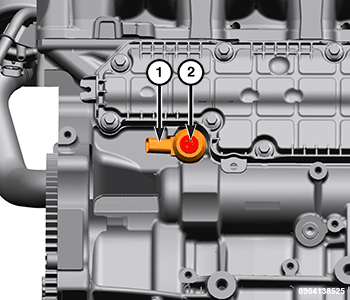

    GC0182126Courtesy of CHRYSLER GROUP, LLC
  4. Remove the mounting bolt (2) and knock sensor (1).
