Intake (#2) Camshaft Position Sensor

The Camshaft Position (CMP) sensors are located at the rear of the cylinder head and are bolted to the cylinder head.

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the top and side engine covers. Refer to COVER, ENGINE, REMOVAL .
3. Remove the air outlet pipe from turbocharger to throttle body. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

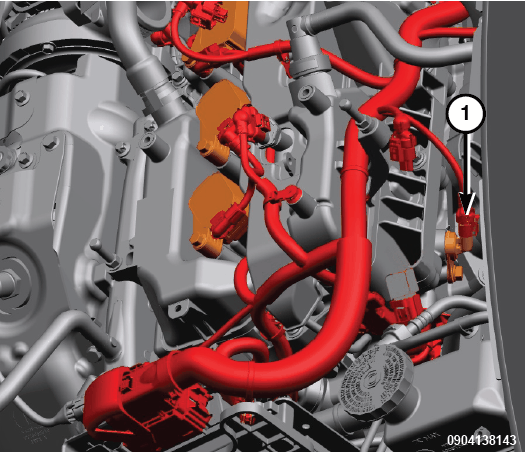

4. Unlock and disconnect the CMP sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

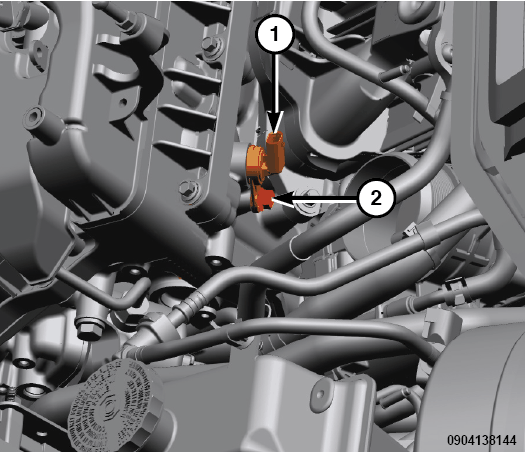

5. Remove the bolt (2) and the CMP sensor (1) from the cylinder head.
