Capacitor, Ignition: Installation

WARNING: This page is about a different variant/trim than selected.

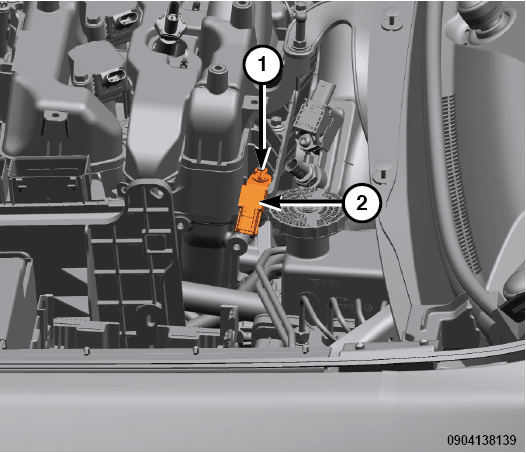

GC0186553Courtesy of CHRYSLER GROUP, LLC
  1. Install the ignition capacitor (2) with the nut (1) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

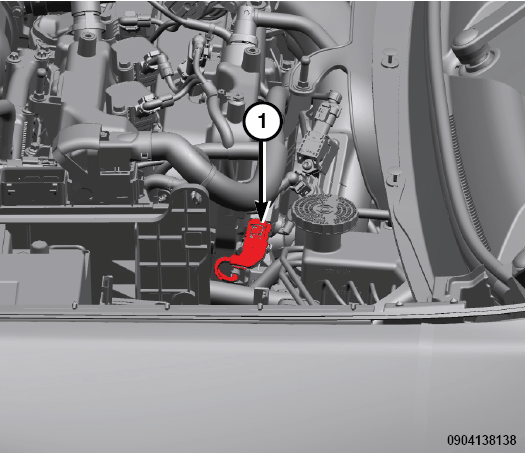

    GC0187210Courtesy of CHRYSLER GROUP, LLC
  2. Connect the ignition capacitor wire harness connector (1).
  3. Install the top engine cover. Refer to COVER, ENGINE, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
