Tube, Intake Air: Installation

WARNING: This page is about a different variant/trim than selected.

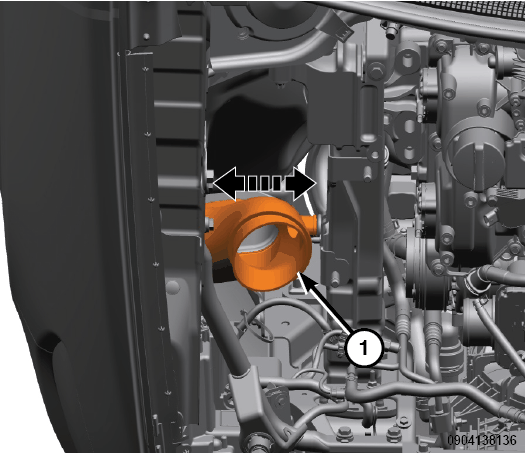

GC0186779Courtesy of CHRYSLER GROUP, LLC
  1. Place the intake air tube (1) back in position and engage the rubber grommet.

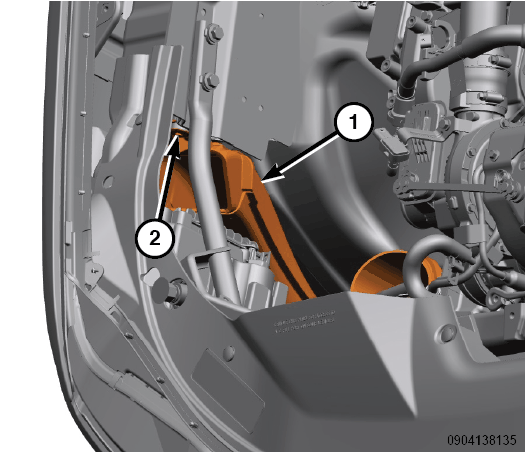

    GC0186417Courtesy of CHRYSLER GROUP, LLC
  2. Install the push pin (2) to the intake air tube (1).
  3. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
