Resonator, Air Cleaner: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

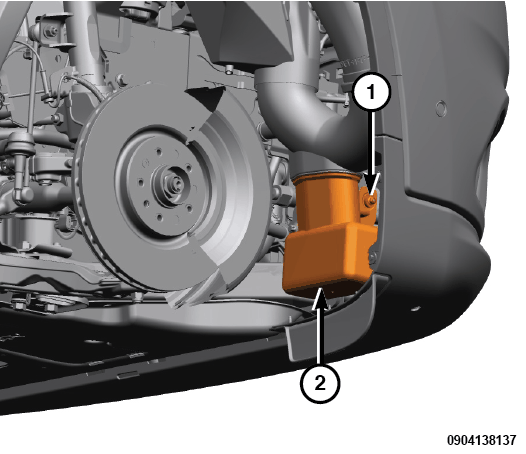

    GC0187095Courtesy of CHRYSLER GROUP, LLC
  2. Remove the nut (1) and remove the resonator (2).
