Temperature Sensor Housing
WARNING: This page is about a different variant/trim than selected.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Drain the cooling system. Refer to COOLING/STANDARD PROCEDURE .
- Remove the engine cover. Refer to COVER, ENGINE, REMOVAL
.
- Disconnect the charge air coolant temperature sensor wire harness connector (1).

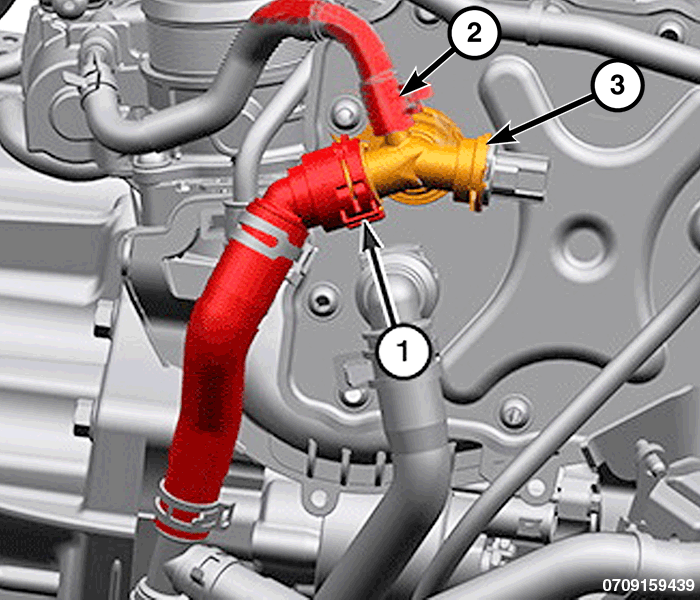

- Loosen the band clamp (2) and remove the coolant hose from the coolant temperature sensor housing (3).
- Disengage the quick-connect fitting (1) and remove coolant outlet hose from the coolant temperature sensor housing (3).

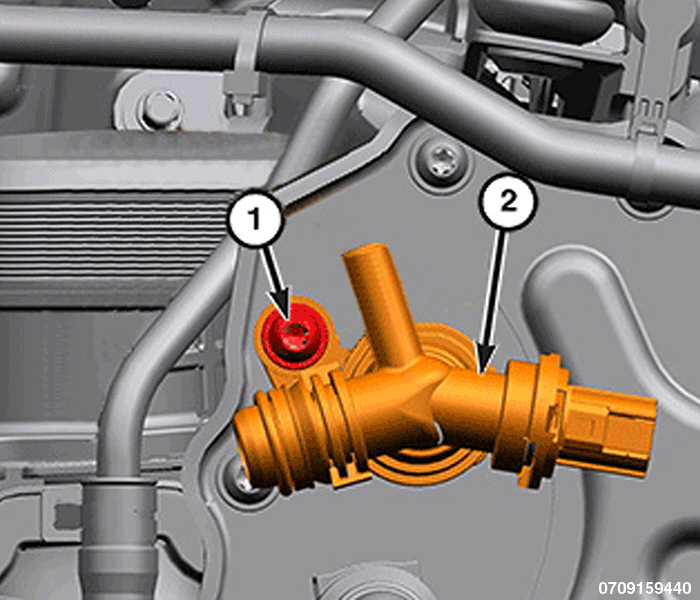

- Remove the bolt (1) securing coolant temperature sensor housing (2) to the charge air cooler.

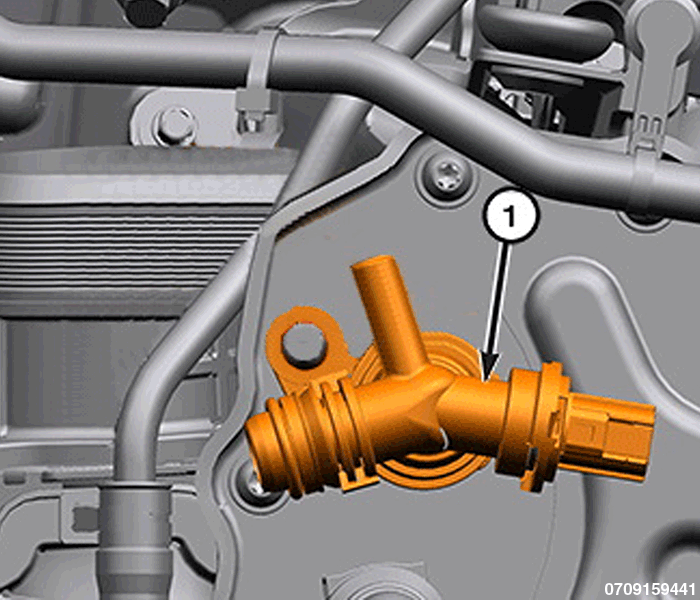

- Disengage the quick-connect fitting and remove the temperature sensor housing (1) from the charge air cooler.

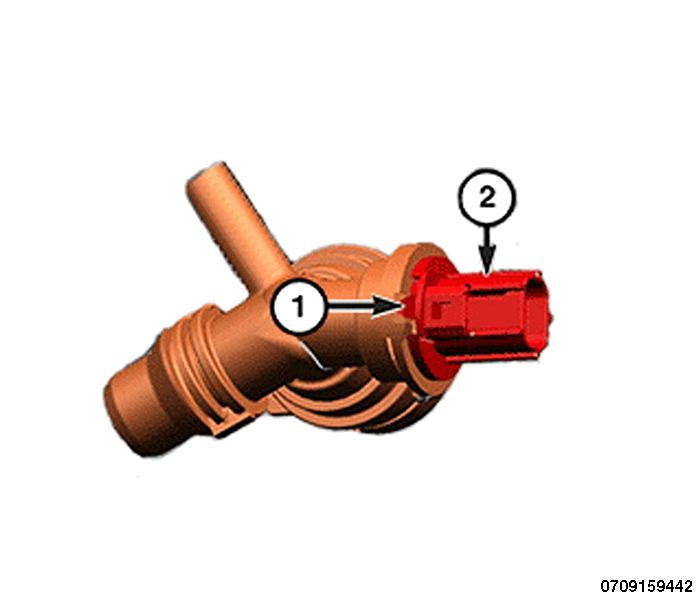

- If required, lift the locking clip (1) and remove the charge air water coolant temperature sensor (2).

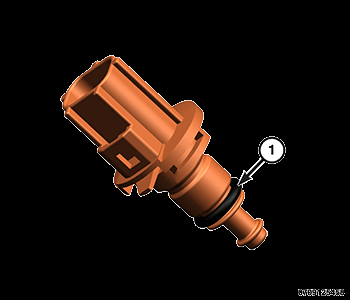

- The charge air water coolant temperature sensor O-ring (1) can be reused if not damaged.
