Pump, Coolant, Charge Air Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

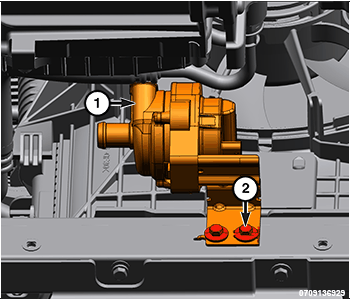

GC0186725Courtesy of CHRYSLER GROUP, LLC
  1. Install the coolant pump (1) and tighten the bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

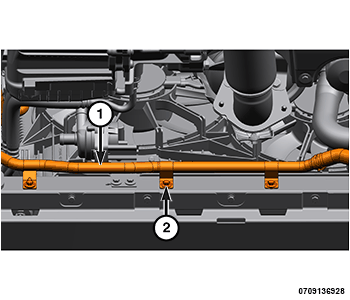

    GC0186672Courtesy of CHRYSLER GROUP, LLC
  2. Install the coolant tube (1) and tighten the bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0187002Courtesy of CHRYSLER GROUP, LLC
  3. Install the coolant pump outlet hose (1).
  4. Install the coolant pump inlet hose (3).

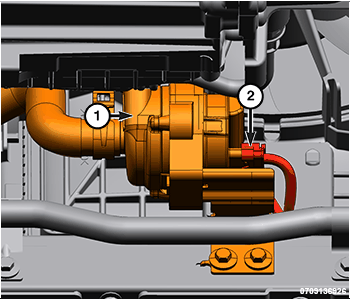

    GC0186662Courtesy of CHRYSLER GROUP, LLC
  5. Connect the coolant pump wire harness connector (2).
  6. Fill the cooling system. Refer to COOLING/STANDARD PROCEDURE .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
