Transmission Cooler
WARNING: This page is about a different variant/trim than selected.

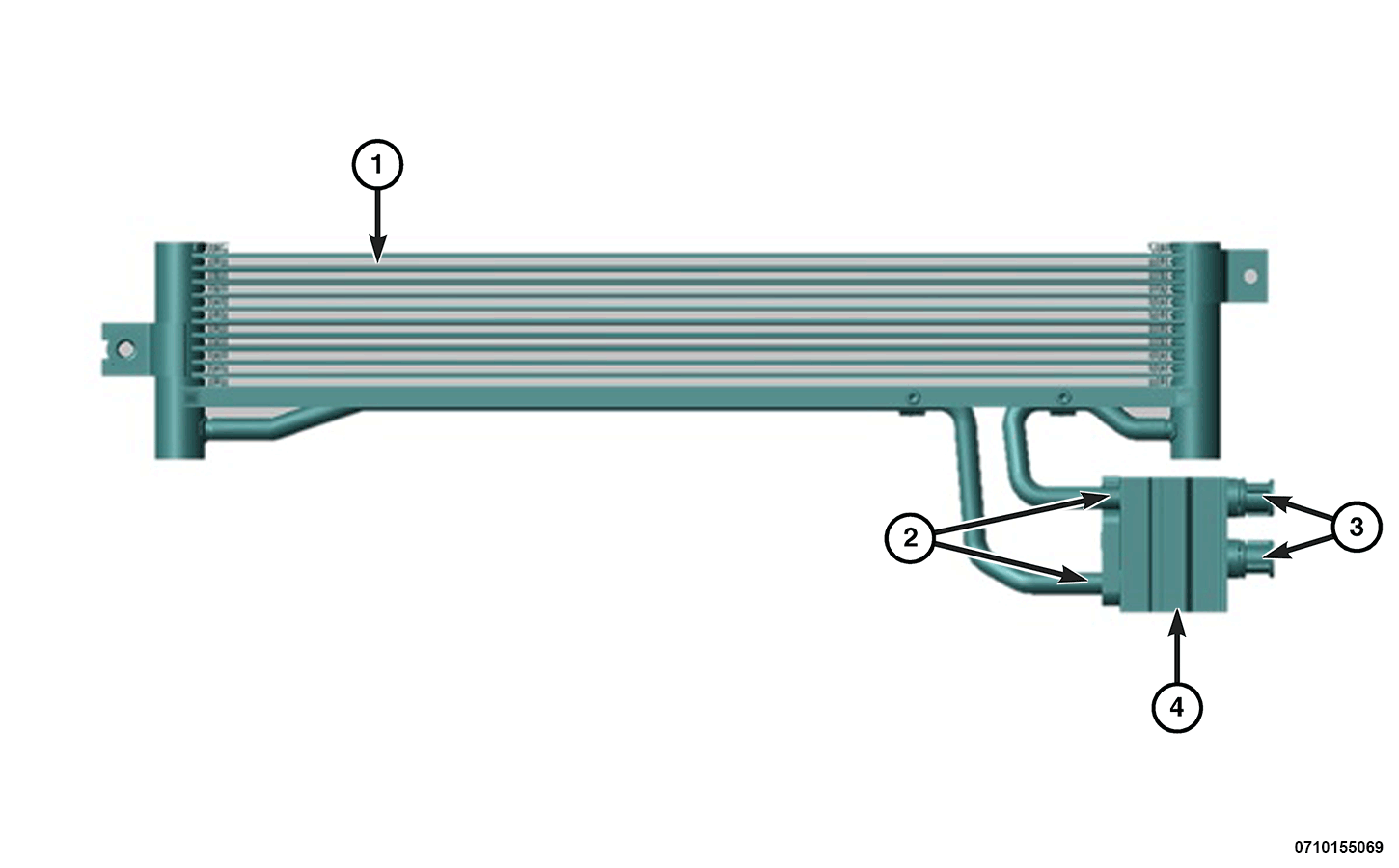

| 1. | Transmission Oil Cooler |
| 2. | Transmission Oil Cooler Fittings |
| 3. | Quick Connect Fittings |
| 4. | Thermal Bypass Valve |
NOTE:
Mark the leakage area if visible to assist in diagnosis and determination of the area where the leak has occurred.
| CONDITION | POSSIBLE CAUSE | CORRECTION |
|---|---|---|
| FLUID LEAK | 1. Damage or leak at transmission oil cooler. | 1. Replace transmission oil cooler. 2. Test drive and verify no additional fluid leaks. |
| 2. Leak at transmission oil cooler fittings. | 1. Replace transmission oil cooler. 2. Test drive and verify no additional fluid leaks. |
|
| 3. Leak at Quick connect fittings. | 1. Replace transmission lines. 2. Test drive and verify no additional fluid leaks. |
