Water Pump Inlet Tube

WARNING: This page is about a different variant/trim than selected.
WARNING:

Constant tension hose clamps are used on most cooling system hoses. When removing or installing, use only tools designed for servicing this type of clamp. Always wear safety glasses when servicing constant tension clamps.

CAUTION:

A number or letter is stamped into the tongue of constant tension clamps. If replacement is necessary, use only an original equipment clamp with matching number or letter.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Drain the cooling system into clean container for reuse. Refer to COOLING - STANDARD PROCEDURE .
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0186399Courtesy of CHRYSLER GROUP, LLC
  4. Remove the lower radiator hose (1) from the water pump inlet tube.
    GC0186823Courtesy of CHRYSLER GROUP, LLC

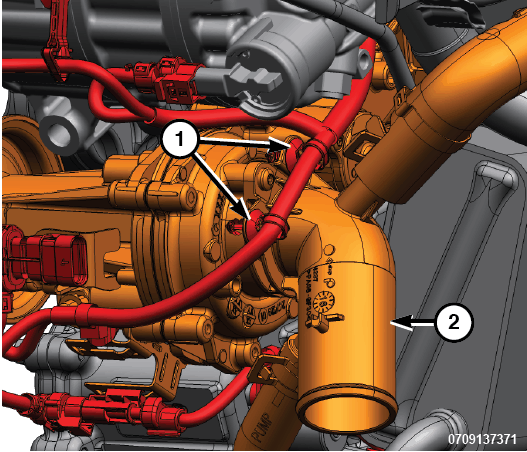

  5. Remove the two wire harness retainers (1) from the water pump inlet tube (2).
    GC0186657Courtesy of CHRYSLER GROUP, LLC

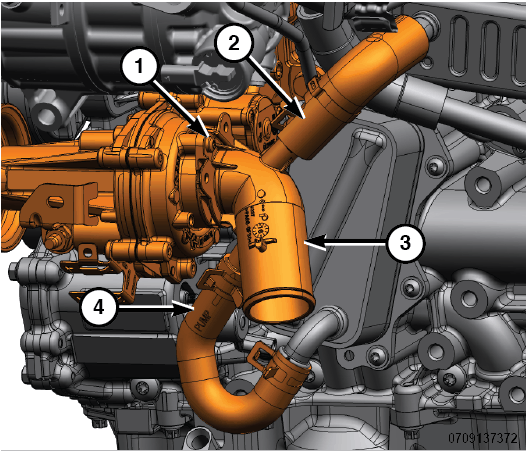

  6. Remove the EGR cooler hose (2) from the water pump inlet tube (3).
  7. Remove the oil cooler hose (4) from the water pump inlet tube (3).
  8. Remove the two screws (1) and the water pump inlet tube (3).
  9. Remove and discard the water pump inlet tube seal.
