Pedal, Accelerator: Installation
WARNING: This page is about a different variant/trim than selected.

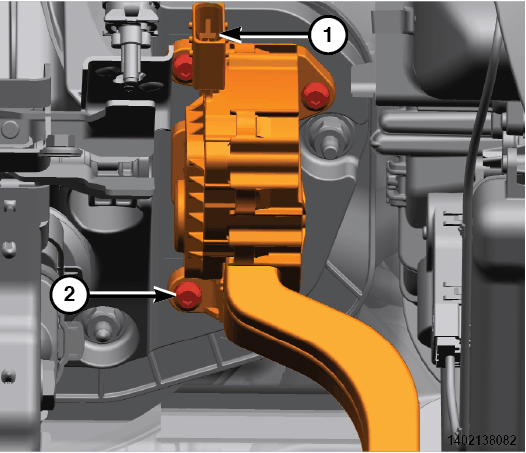

- Install the accelerator pedal. Tighten the three screws (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the accelerator pedal wire harness connector (1).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Use a scan tool and perform the APPS RELEARN function.
