Tube, Fuel Tank Filler: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the right rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL
.

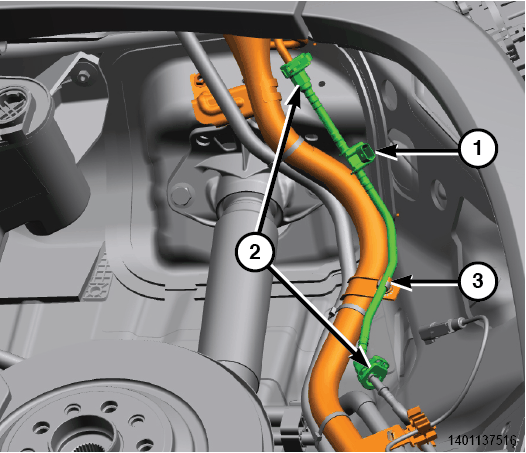

- Disconnect the fuel tank pressure sensor wire harness connector (1).
- Disconnect the fuel tube vent line (2) quick connect fitting and detach from retainer (3). Refer to
QUICK-CONNECT FITTINGS .

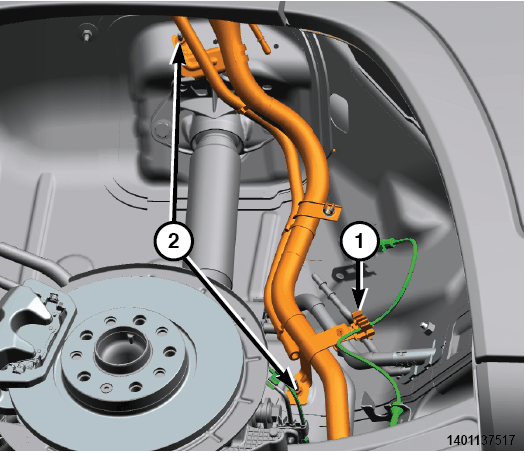

- Remove ABS wire harness from holder (1).
- Remove filler tube mounting bracket nuts (2).

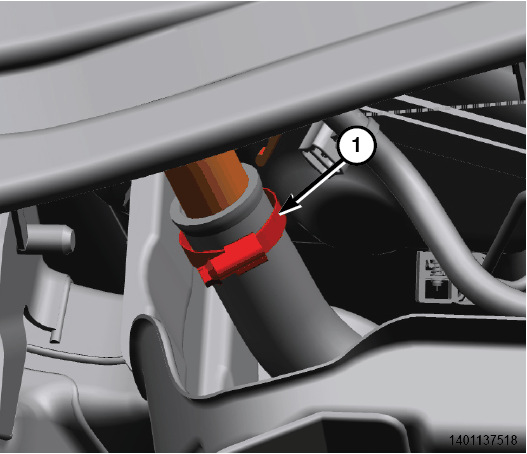

- Loosen the hose clamp (1) and remove the fuel filler tube from the fuel tank.
- Remove fuel filler tube from the fuel door housing assembly by pulling straight down to separate the tube from the housing opening.
