Glove Box, Instrument Panel: Installation

Courtesy of CHRYSLER GROUP, LLC

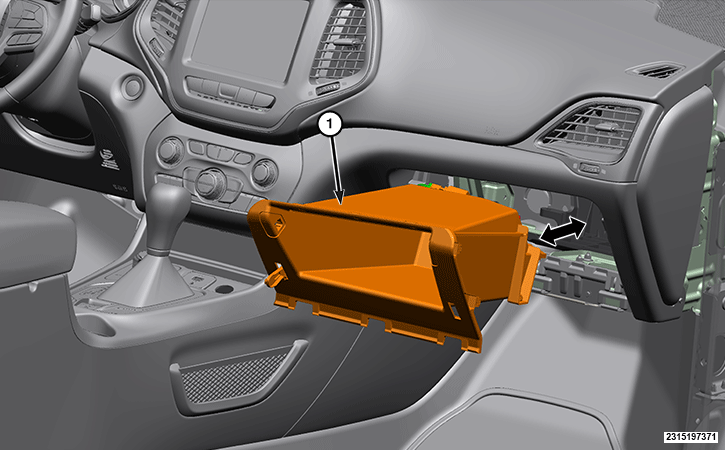

1. Position the glove box (1) into the instrument panel and seat the retaining clips fully.

   Courtesy of CHRYSLER GROUP, LLC

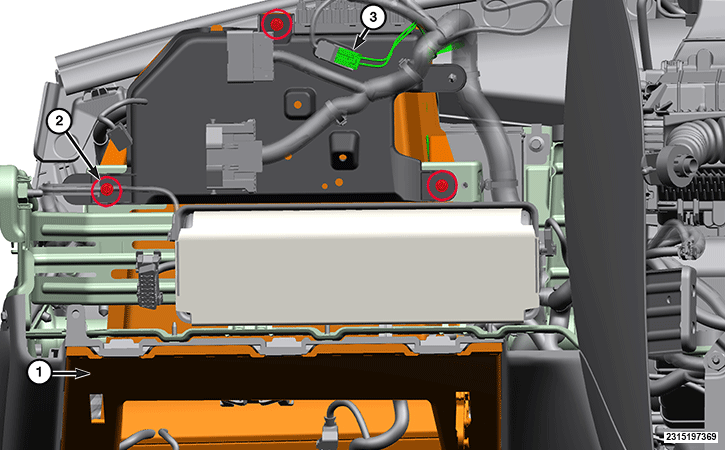

2. Working on the underside of the passenger side instrument panel, install the lower glove box fasteners (2) and tighten them securely.
3. Connect the wire harness connector (3).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the floor duct (2) and push fastener (1) below the glove box.

   Courtesy of CHRYSLER GROUP, LLC

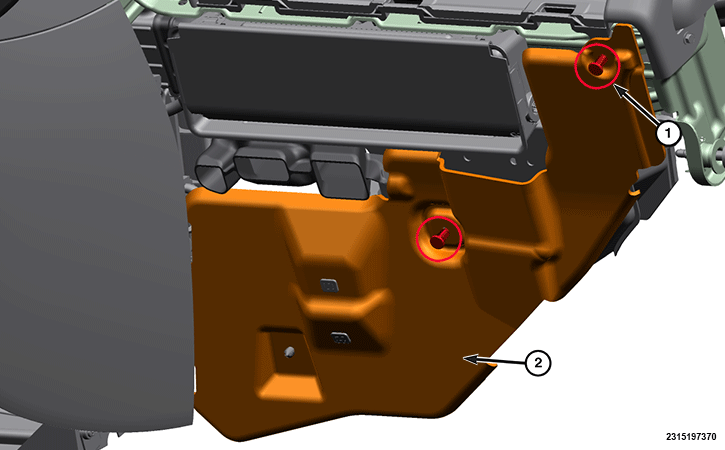

5. Install the silencer panel (2). Install the fasteners (1).

   Courtesy of CHRYSLER GROUP, LLC

6. Install the fasteners (3) and tighten them securely.

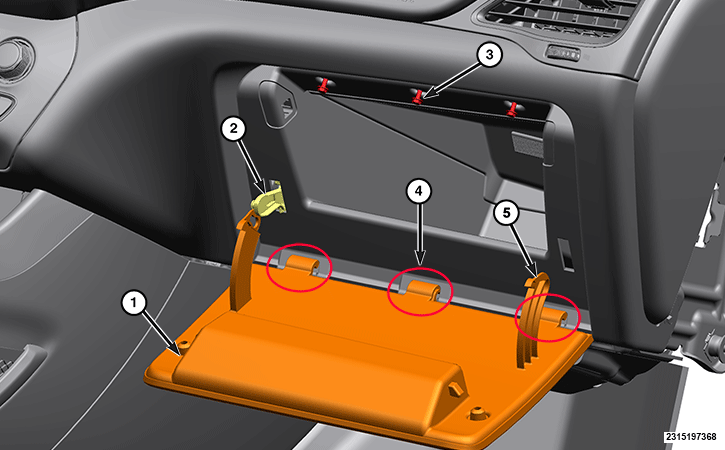

7. Install the glove box door (1) to the hinges (4) and connect the damper arm (2).
8. Insert the support arms (5) into the glove box slots. Check glove box door for proper operation.
