1.5L MHEV Version

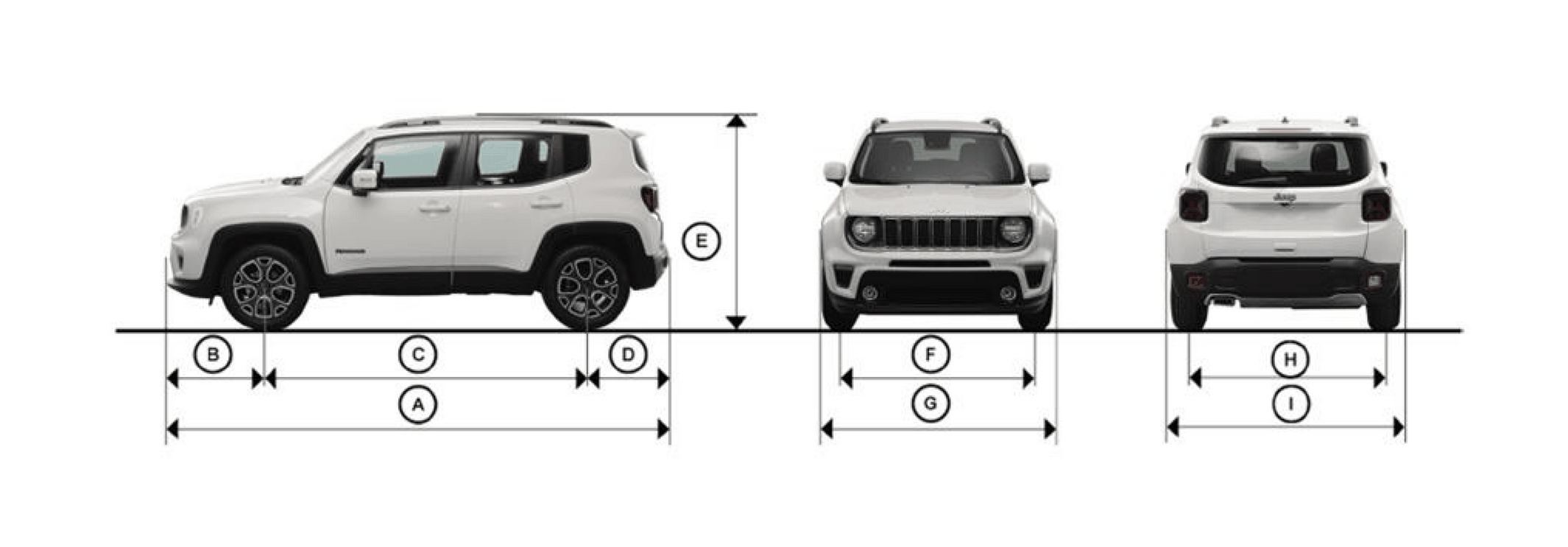

Dimensions are expressed in millimeters (mm) and inches (in). Dimensions refer to the vehicle equipped with standard supplied tires.
Height is measured with vehicle to the unloaded.
| A | B | C | D | E* | F | G | H | I |
|---|---|---|---|---|---|---|---|---|
| 4249 mm (167.3 in) |
889 mm (35.0 in) |
2570 mm (101.2 in) |
790 mm (31.1 in) |
1668/1675 mm 1703/1710** mm 65.7/65.9 in 67.0/67.3** in |
1550 mm (61.0 in) |
2023 mm (79.6 in) |
1546 mm (60.9 in) |
1805 mm (71.1 in) |
NOTE:
*- Minor variations with respect to the values shown are possible according to rim size.
**- with luggage rack
