Gap And Flush: Specifications

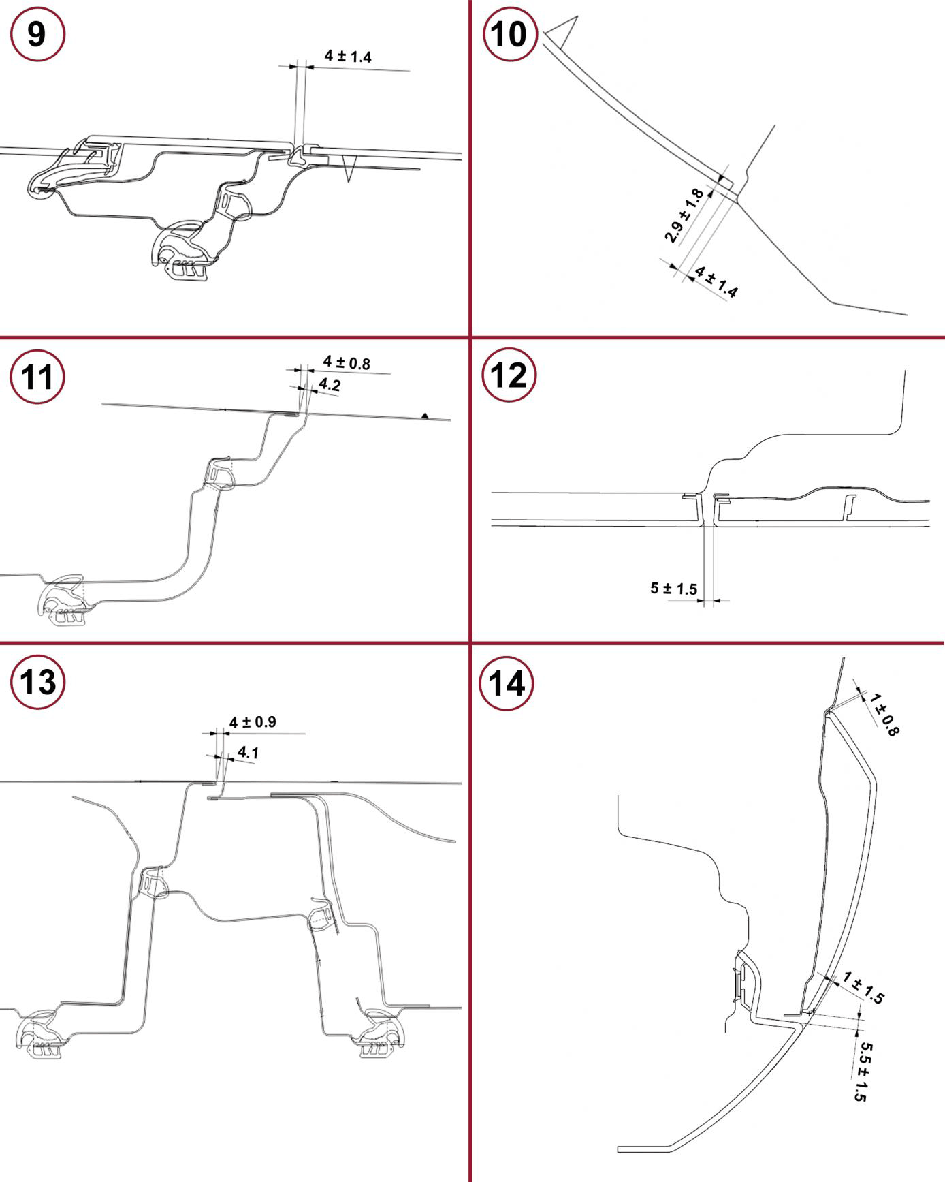

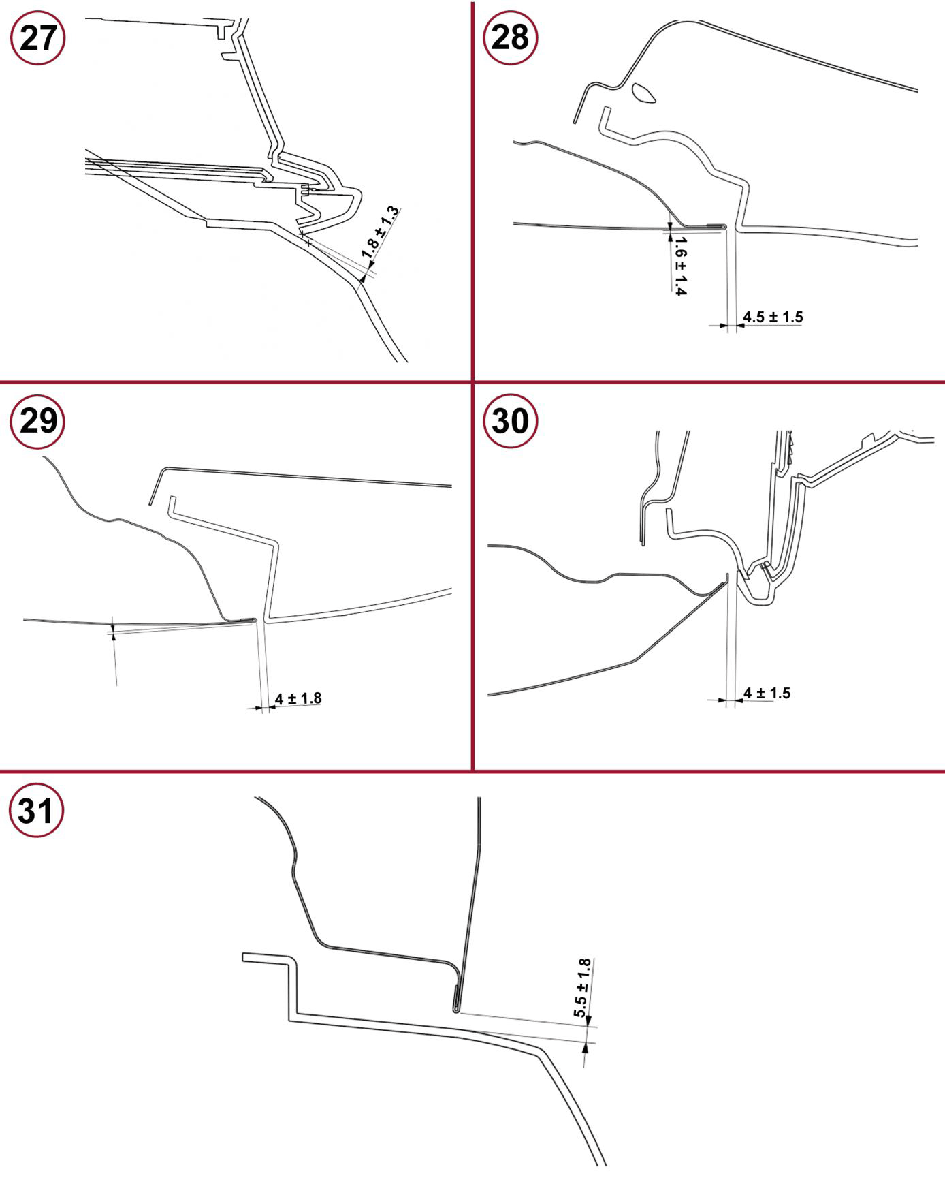

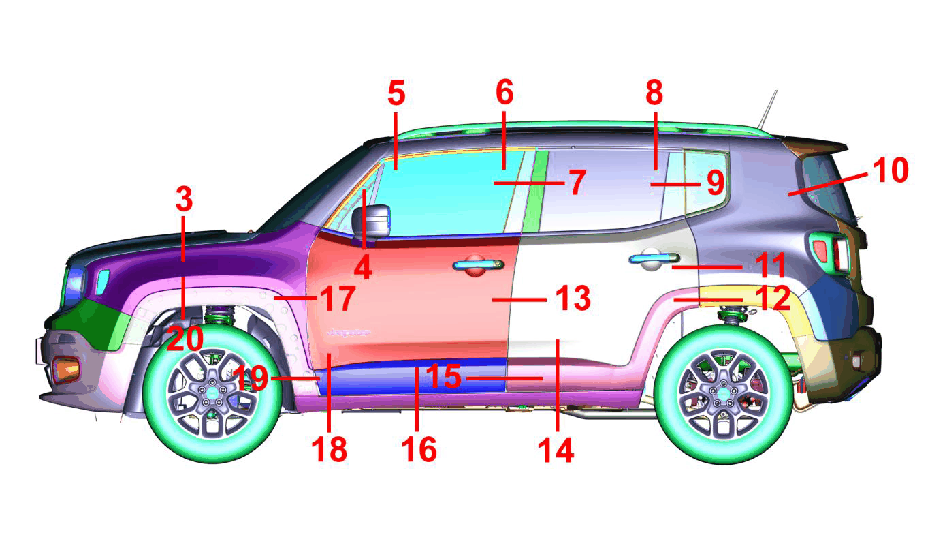

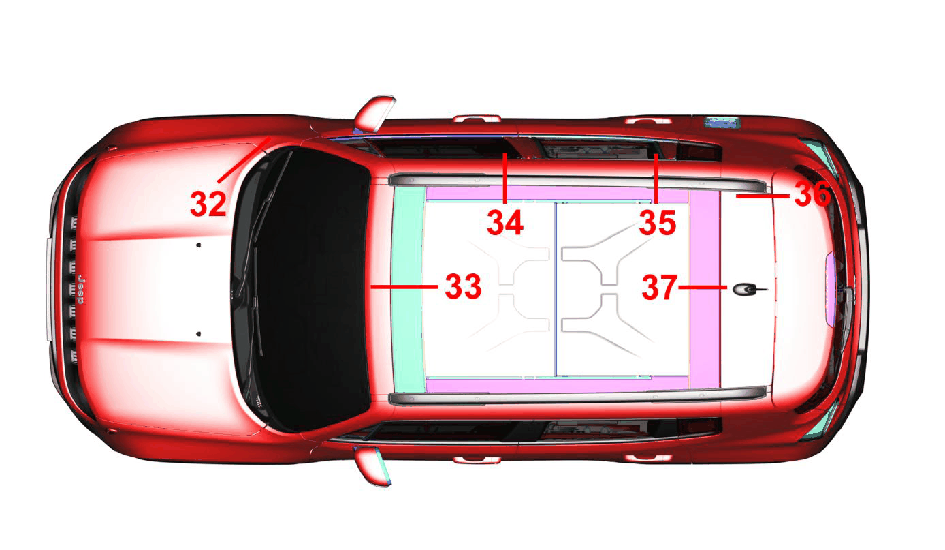

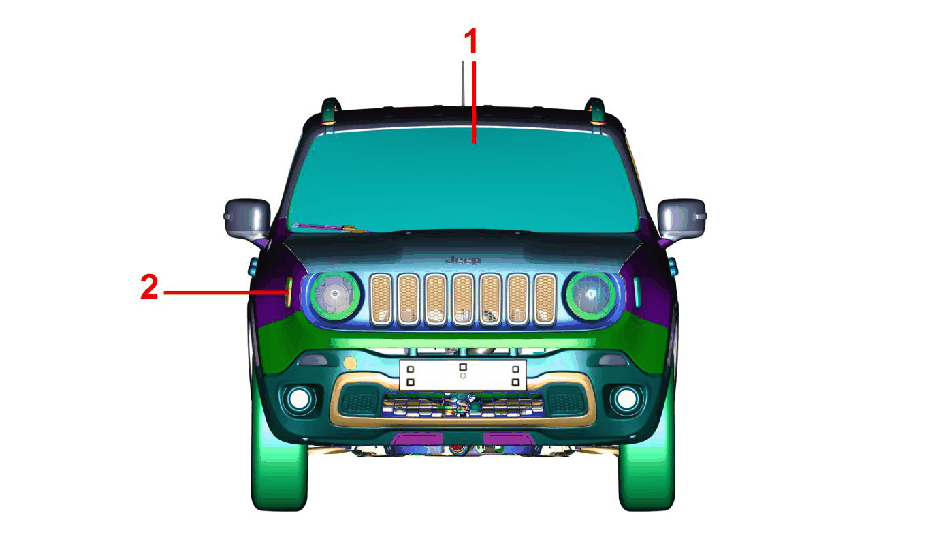

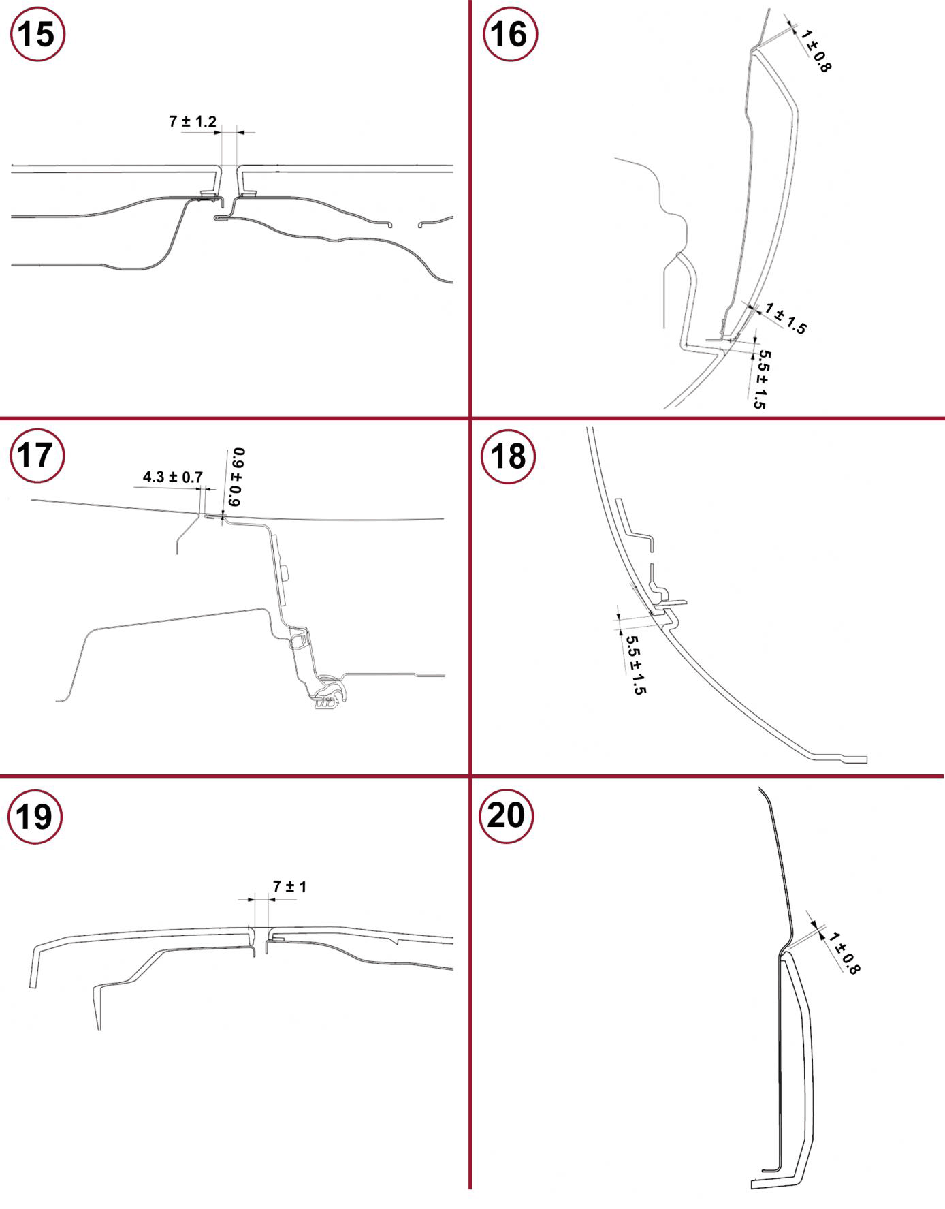

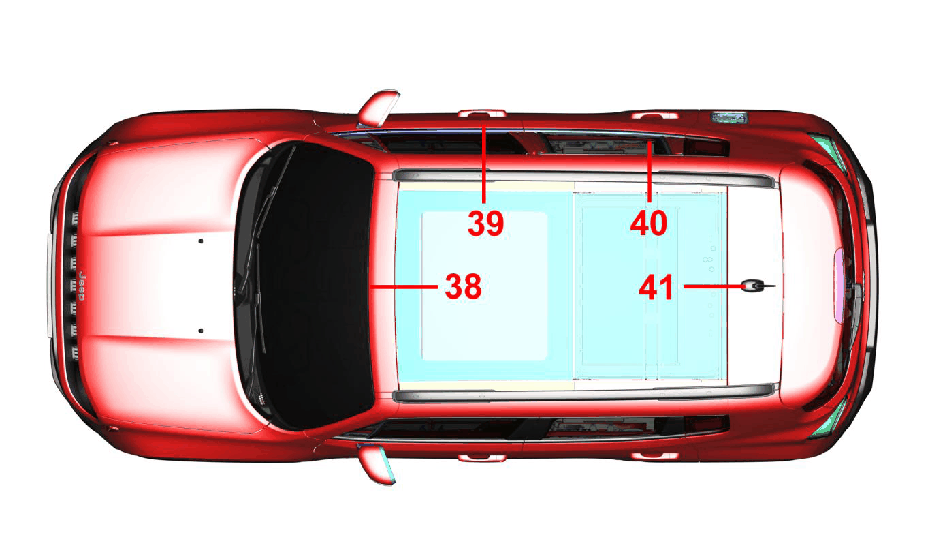

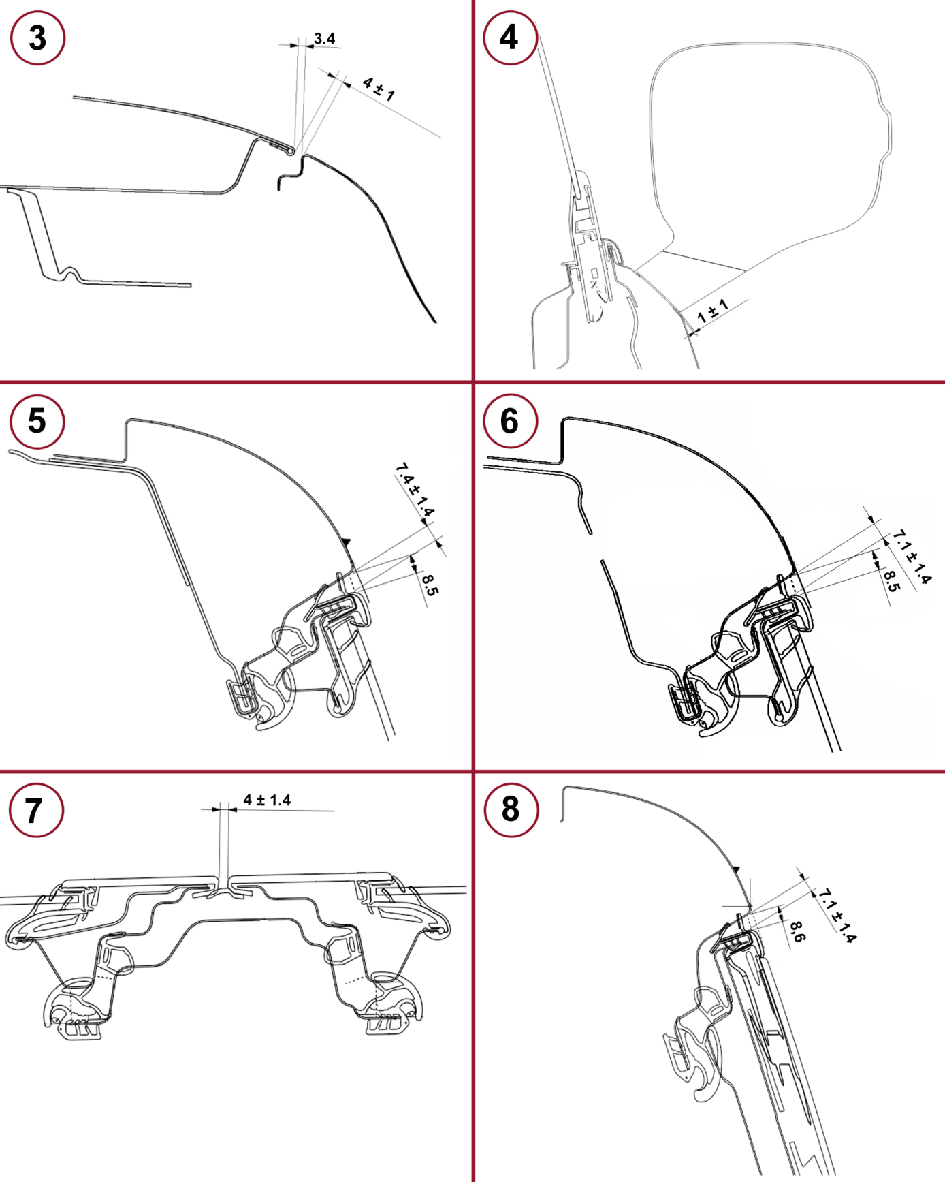

BODY GAP AND FLUSH SPECIFICATIONS FOR THE ADJUSTMENT OF MOVING PARTS

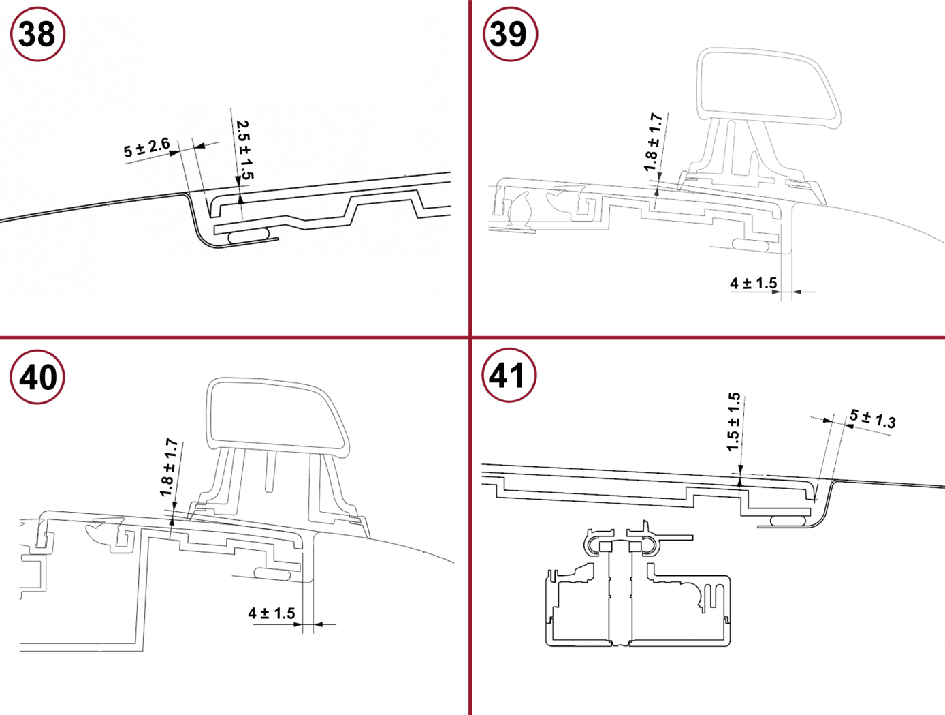

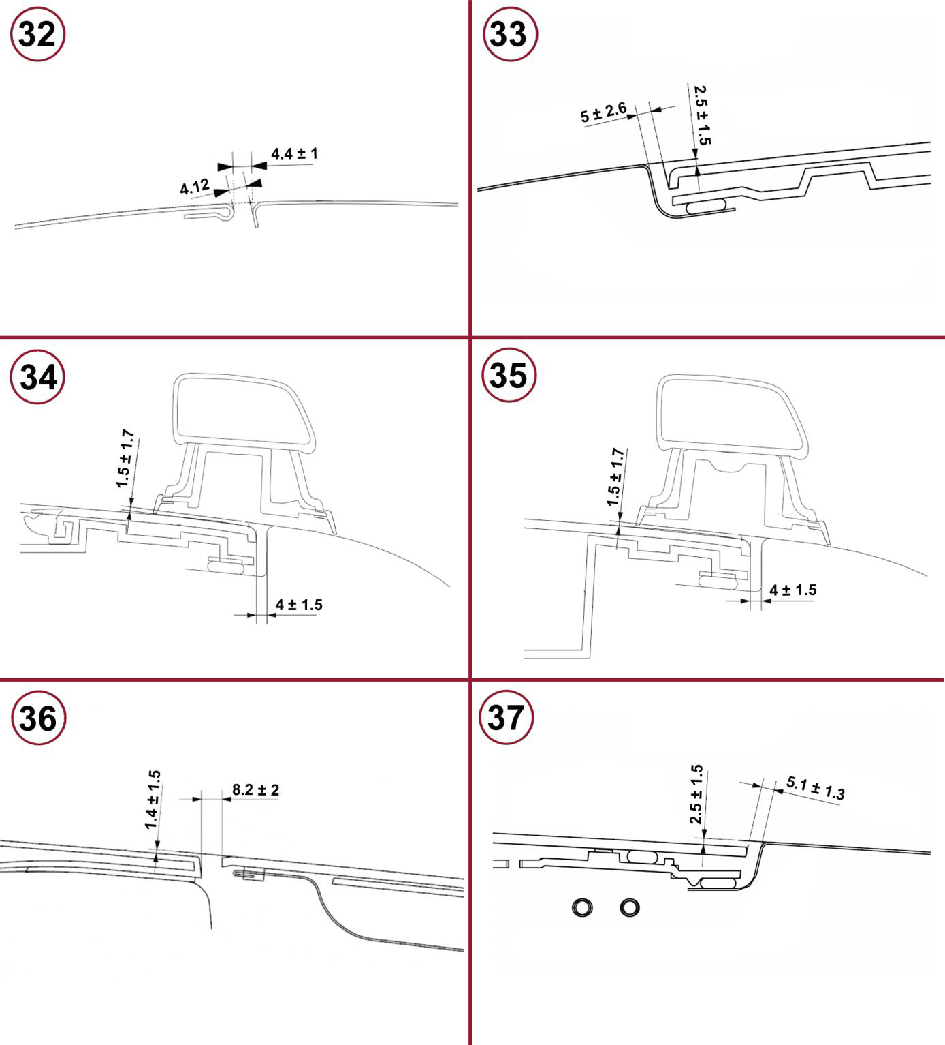

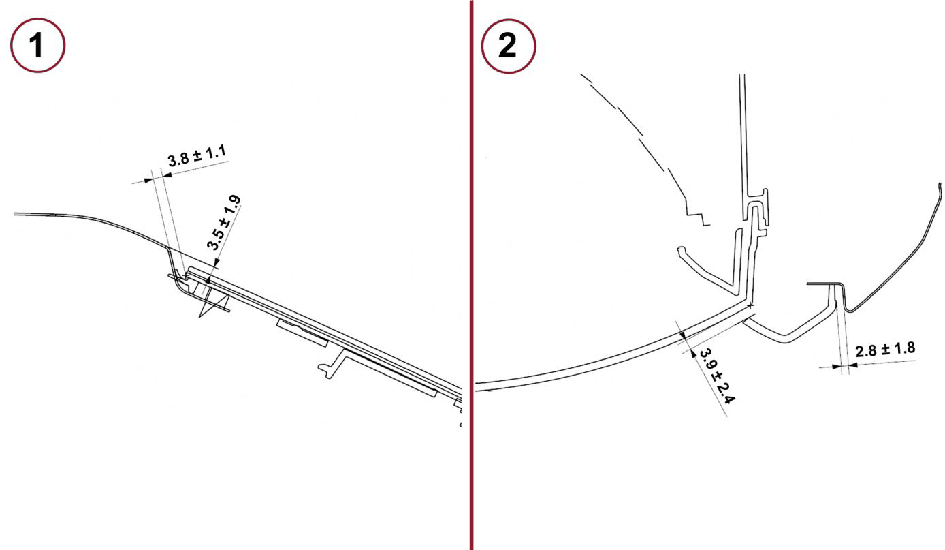

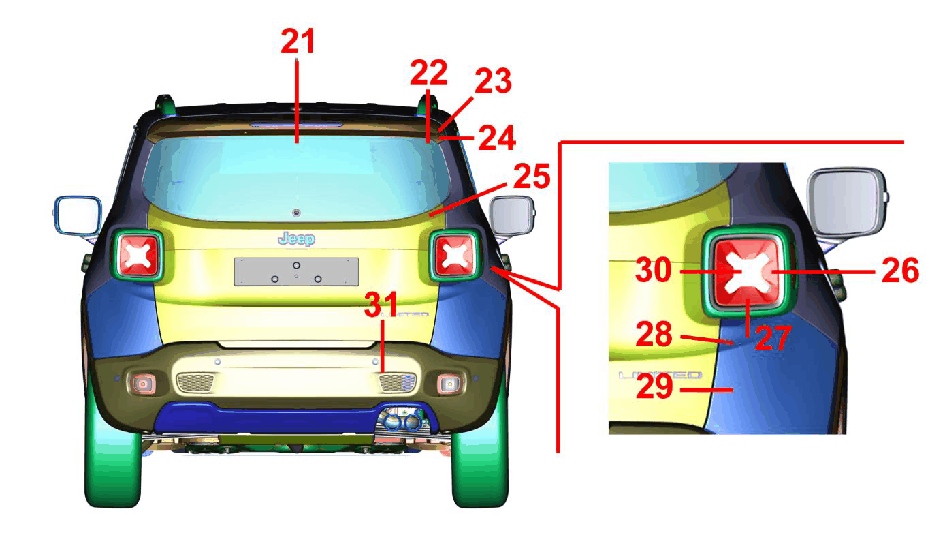

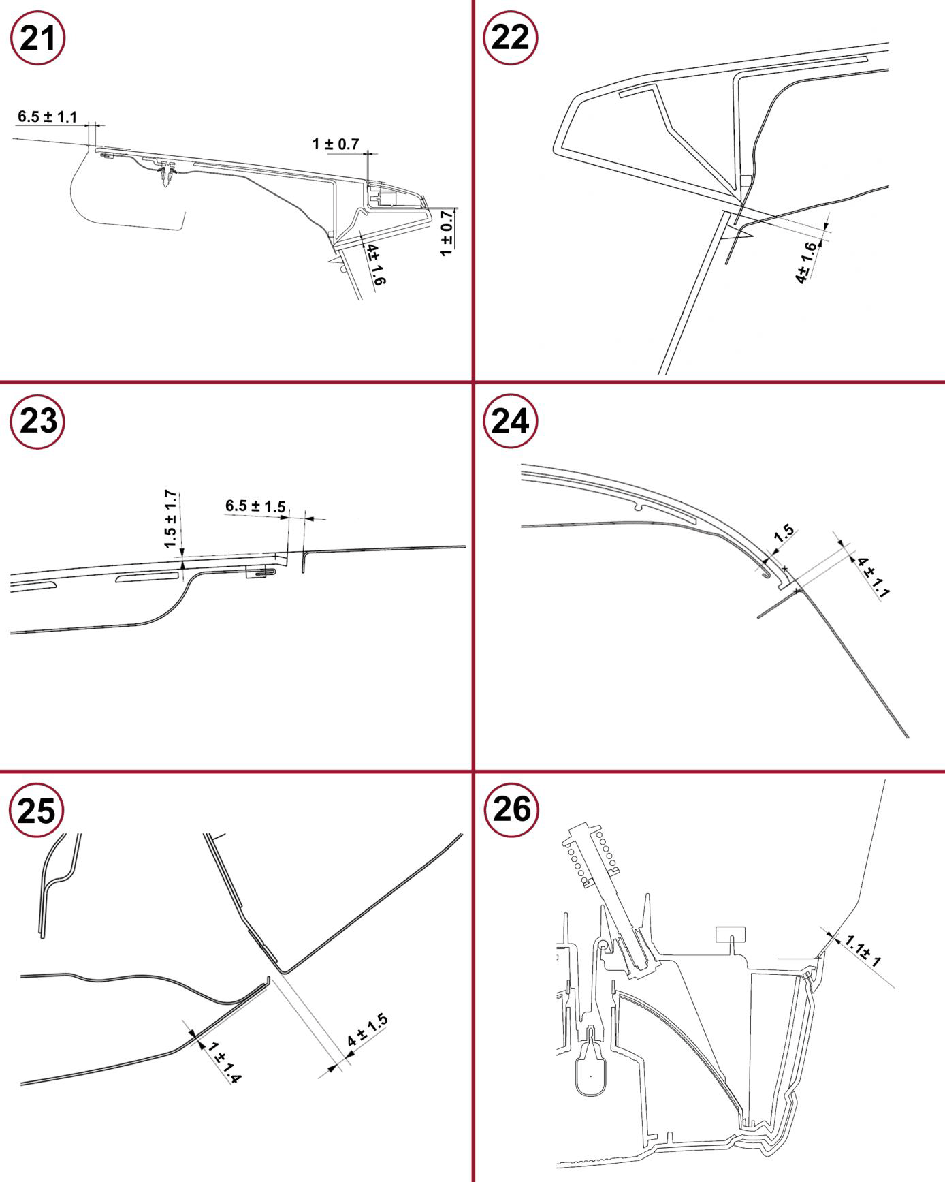

To facilitate and verify moving parts disassembly operations, the existing gaps are shown (in millimeters) to allow appropriate adjustment.
The adjustment procedure is explained in the
information describing moving part removal and installation procedures.
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
