Clutch Pedal Assist Spring

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch Assist Spring

Depress the clutch pedal, then gently compress the clutch assist spring and remove the spring assembly from the two pins.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1 - Upper Clutch Pedal Assist Spring Seat (Black)

2 - Lower Clutch Pedal Assist Spring Seat (White)

Using the supplied grease, lubricate the black upper clutch pedal assist spring seat and the white lower clutch pedal assist spring seat of the clutch pedal assist spring assembly.

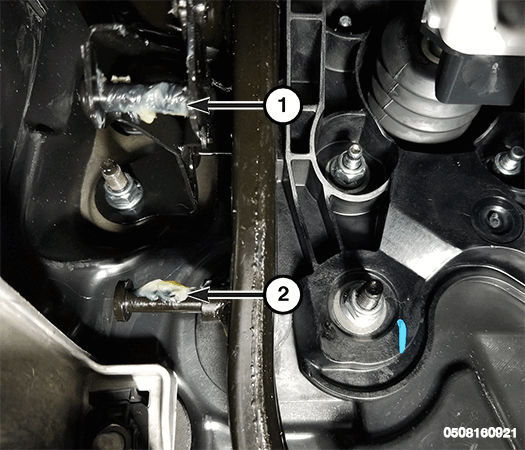

Courtesy of CHRYSLER GROUP, LLC

1 - Upper Pin

2 - Lower Pin
Using the supplied grease, lubricate the upper pin and the lower pin.

Courtesy of CHRYSLER GROUP, LLC

1 - Lower Clutch Pedal Assist Spring Seat (White)

NOTE:
The clutch assist spring assembly must be installed with the white seat down.
Depress the clutch pedal, then gently compress the clutch assist spring and install the spring assembly.
