Tire And Wheel: Notes

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

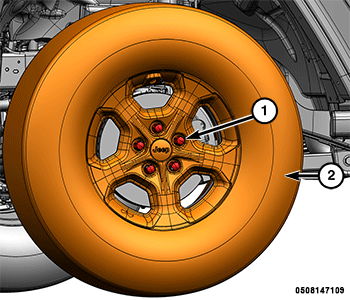

2. Remove the five wheel lug nuts.
3. Remove the tire and wheel assembly.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

TORQUE SPECIFICATIONS
