Jounce Bumper

REMOVAL

1. Remove the front coil spring. Refer to SPRING, FRONT COIL, REMOVAL AND INSTALLATION .

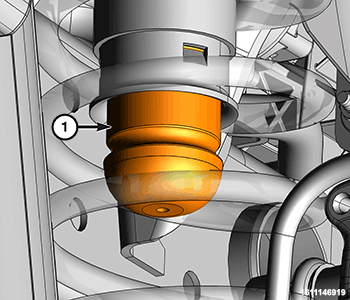

   Courtesy of CHRYSLER GROUP, LLC

   1 - Jounce Bumper

2. Remove the jounce bumper.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
