Rear Outboard, Right

REMOVAL

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE:

The rear right, left, and center seat belt buckles are serviced individually.

  1. Disconnect and isolate the negative battery cable(s). Refer to 3.0L, BATTERY DISCONNECT & CONNECT - DUAL 12 VOLT BATTERY SYSTEM or 3.6L, BATTERY DISCONNECT & CONNECT - DUAL 12 VOLT BATTERY SYSTEM .

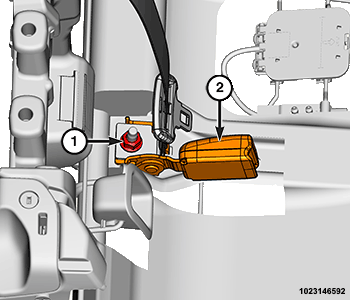

    GC0192885Courtesy of CHRYSLER GROUP, LLC
  2. Remove the nut (1) that secures the right rear seat belt buckle (2) to the seat cushion frame.
  3. Remove the right rear seat belt buckle from the seat cushion frame.
  4. If equipped, disconnect the wire harness connector and remove the buckle from the vehicle.

INSTALLATION

NOTE:

The rear right, left, and center seat belt buckles are serviced individually.

  1. If equipped, connect the wire harness connector.
  2. Position the right rear seat belt buckle to the rear floor panel.
  3. Install the nut that secures the right rear seat belt buckle to the seat cushion frame. Tighten the nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  4. Connect the negative battery cable(s). Refer to 3.0L, BATTERY DISCONNECT & CONNECT - DUAL 12 VOLT BATTERY SYSTEM or 3.6L, BATTERY DISCONNECT & CONNECT - DUAL 12 VOLT BATTERY SYSTEM .
