Rear Outboard, Left
REMOVAL
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
The rear right, left, and center seat belt buckles are serviced individually.
- Remove the 40% rear seat from the vehicle. Refer to SEAT, SECOND ROW, REMOVAL AND INSTALLATION
.

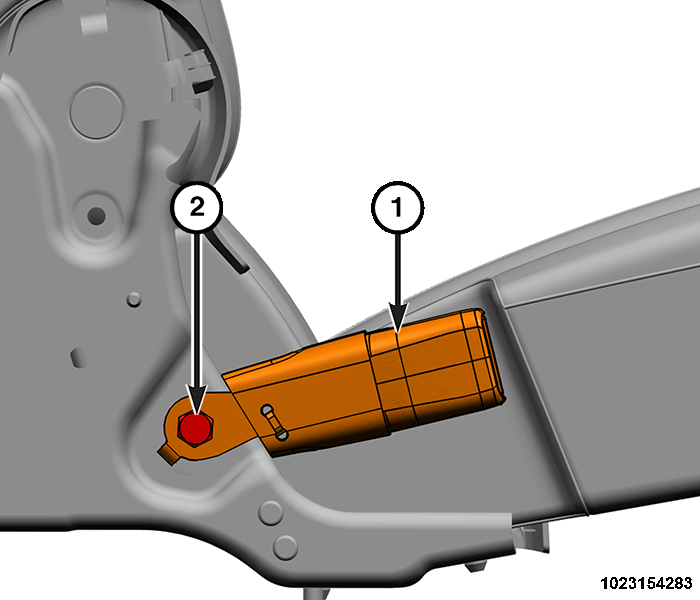

- Remove the bolt (2) that secures the left rear seat belt buckle (1) to the seat cushion frame.
- Remove the left rear seat belt buckle from the seat cushion frame.
- If equipped, disconnect the wire harness connector and remove the buckle from the vehicle.
INSTALLATION
The rear right, left, and center seat belt buckles are serviced individually.
- If equipped, connect the wire harness connector.
- Position the left rear seat belt buckle to the seat cushion frame.
- Install the bolt that secures the left rear seat belt buckle to the seat cushion frame. Tighten the bolt to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Install the 40% rear seat from the vehicle. Refer to SEAT, SECOND ROW, REMOVAL AND INSTALLATION .
