Housing - HVAC Assembly

DISASSEMBLY

1. Remove the air inlet housing. Refer to HOUSING, HVAC, DISASSEMBLY AND ASSEMBLY .
2. Disconnect all necessary wire harness connectors from the HVAC housing.

   Courtesy of CHRYSLER GROUP, LLC

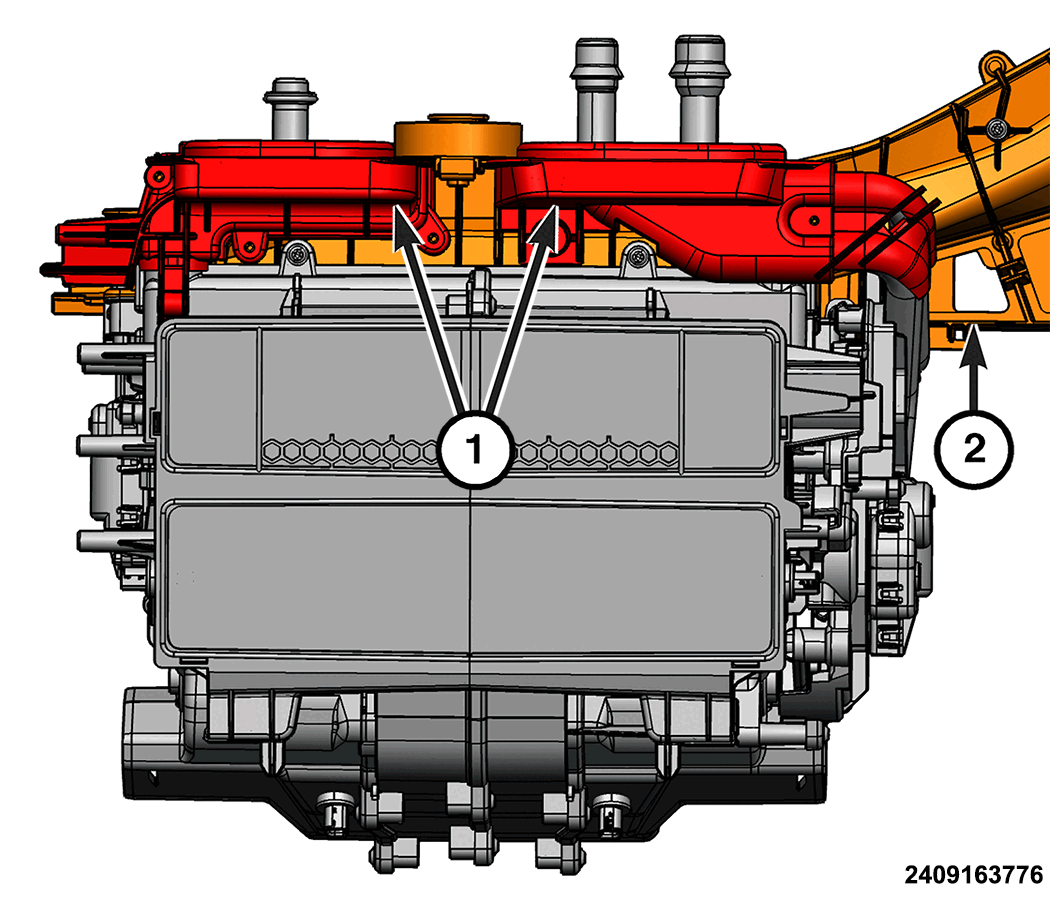

3. Remove the seals (1) from the HVAC housing.

   Courtesy of CHRYSLER GROUP, LLC

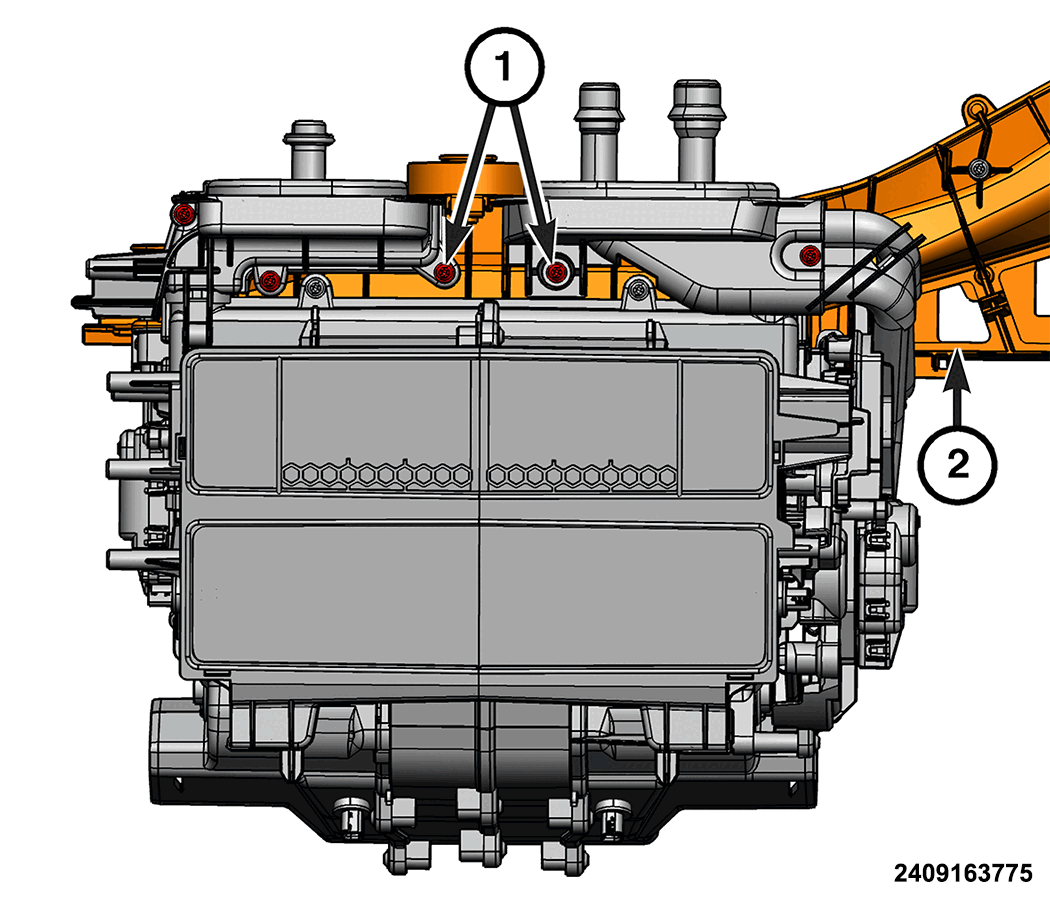

4. Remove the fasteners (1) securing the heater core and evaporator lines to the HVAC housing (2).

   Courtesy of CHRYSLER GROUP, LLC

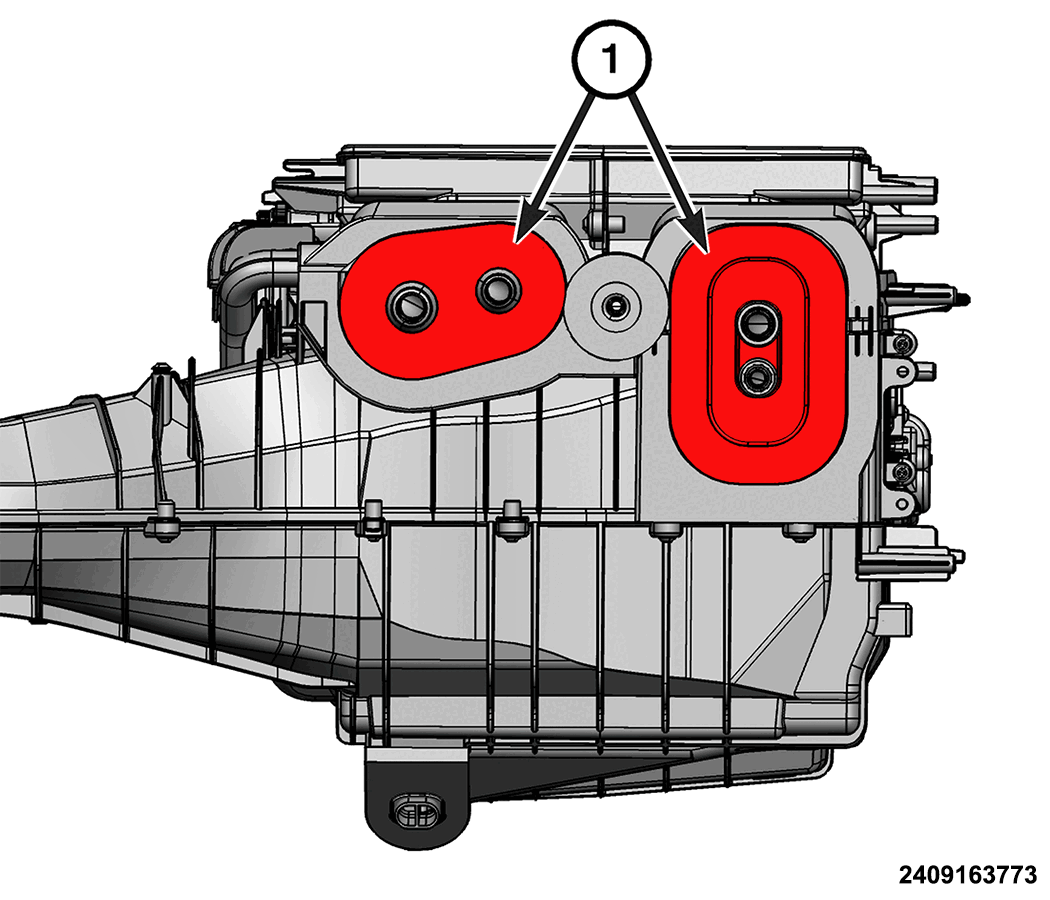

5. Remove the covers (1) from the HVAC housing (2).

   Courtesy of CHRYSLER GROUP, LLC

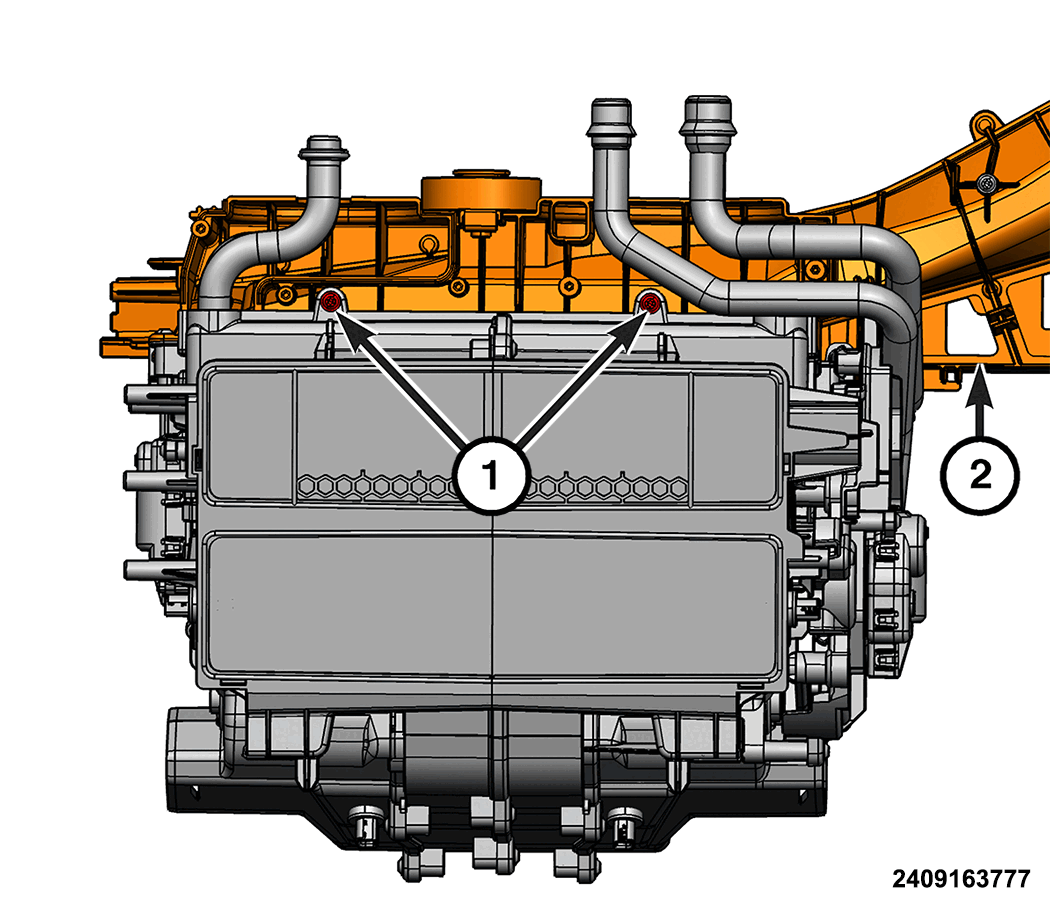

6. Remove the top fasteners (1) securing the HVAC housing (2) to the distribution housing.

   Courtesy of CHRYSLER GROUP, LLC

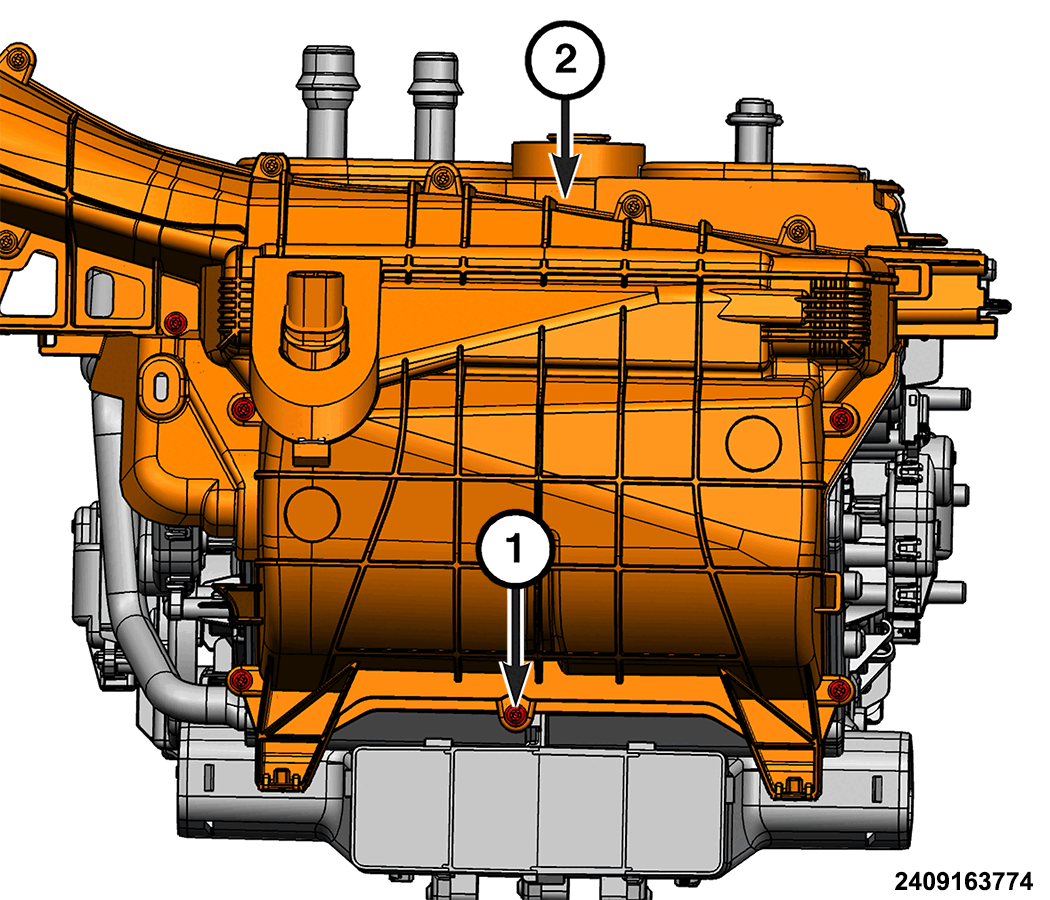

7. Remove the bottom fasteners (1) securing the HVAC housing (2) to the distribution housing.

   Courtesy of CHRYSLER GROUP, LLC

8. Remove the left side fasteners (1) securing the HVAC housing (2) to the distribution housing.

   Courtesy of CHRYSLER GROUP, LLC

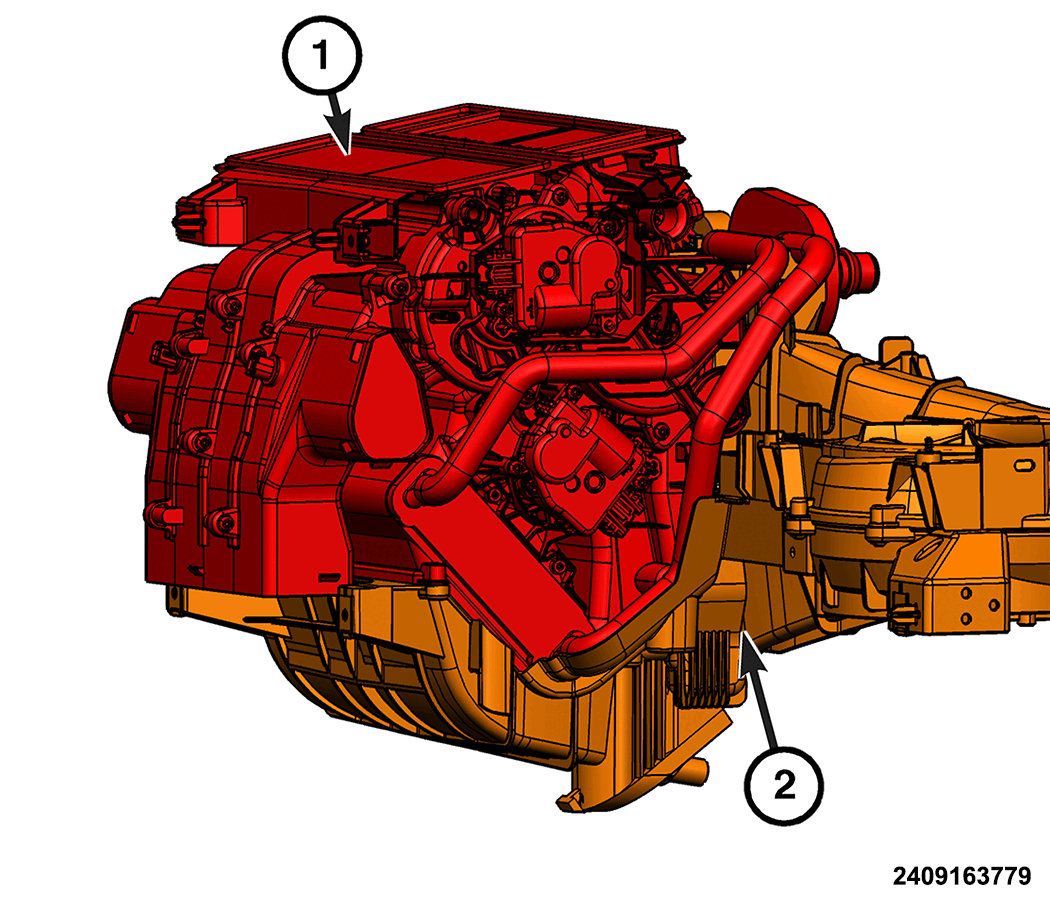

9. Remove the distribution housing (1) from the HVAC housing (2).

   Courtesy of CHRYSLER GROUP, LLC

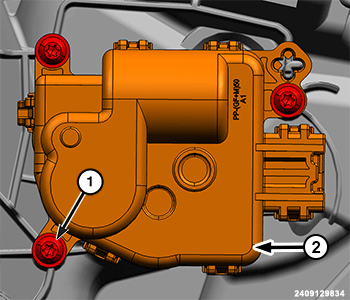

10. If the air distribution housing is being replaced, remove the fasteners (1) that secure the blend door actuator to the air distribution housing and remove the actuator.
11. If the HVAC housing is being replaced, remove the blower motor. Refer to MOTOR, BLOWER, REMOVAL AND INSTALLATION .
12. If the HVAC housing is being replaced, remove the HVAC module. Refer to MODULE, HVAC, REMOVAL AND INSTALLATION .

ASSEMBLY

1. If remove, install the HVAC module. Refer to MODULE, HVAC, REMOVAL AND INSTALLATION .
2. If remove, install the blower motor. Refer to MOTOR, BLOWER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

3. If remove, install the fasteners (1) that secure the blend door actuator to the air distribution housing and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

4. Install the distribution housing (1) to the HVAC housing (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the left side fasteners (1) securing the HVAC housing (2) to the distribution housing and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

6. Install the bottom fasteners (1) securing the HVAC housing (2) to the distribution housing and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the top fasteners (1) securing the HVAC housing (2) to the distribution housing and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

8. Install the covers (1) to the HVAC housing (2).

   Courtesy of CHRYSLER GROUP, LLC

9. Install the fasteners (1) securing the heater core and evaporator lines to the HVAC housing (2) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

10. Install the seals (1) to the HVAC housing.
11. Connect all necessary wire harness connectors to the HVAC housing.
12. Install the air inlet housing. Refer to HOUSING, HVAC, DISASSEMBLY AND ASSEMBLY .
