Housing - Air Inlet

DISASSEMBLY

1. Remove the HVAC housing assembly and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

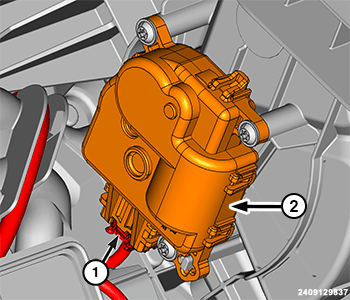

2. Disconnect the wire harness connector (1) from the actuator.

   Courtesy of CHRYSLER GROUP, LLC

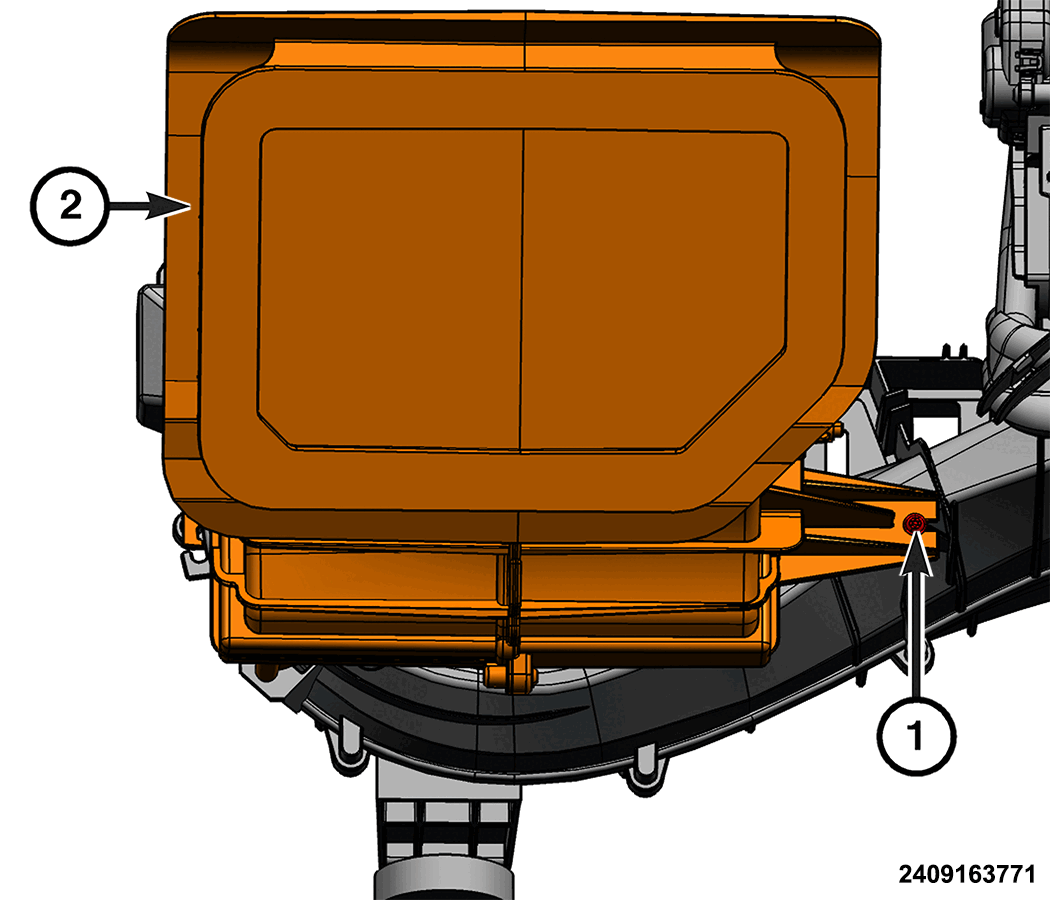

3. Remove the bottom fasteners (1) that secures the air inlet housing (2) to the HVAC housing assembly.

   Courtesy of CHRYSLER GROUP, LLC

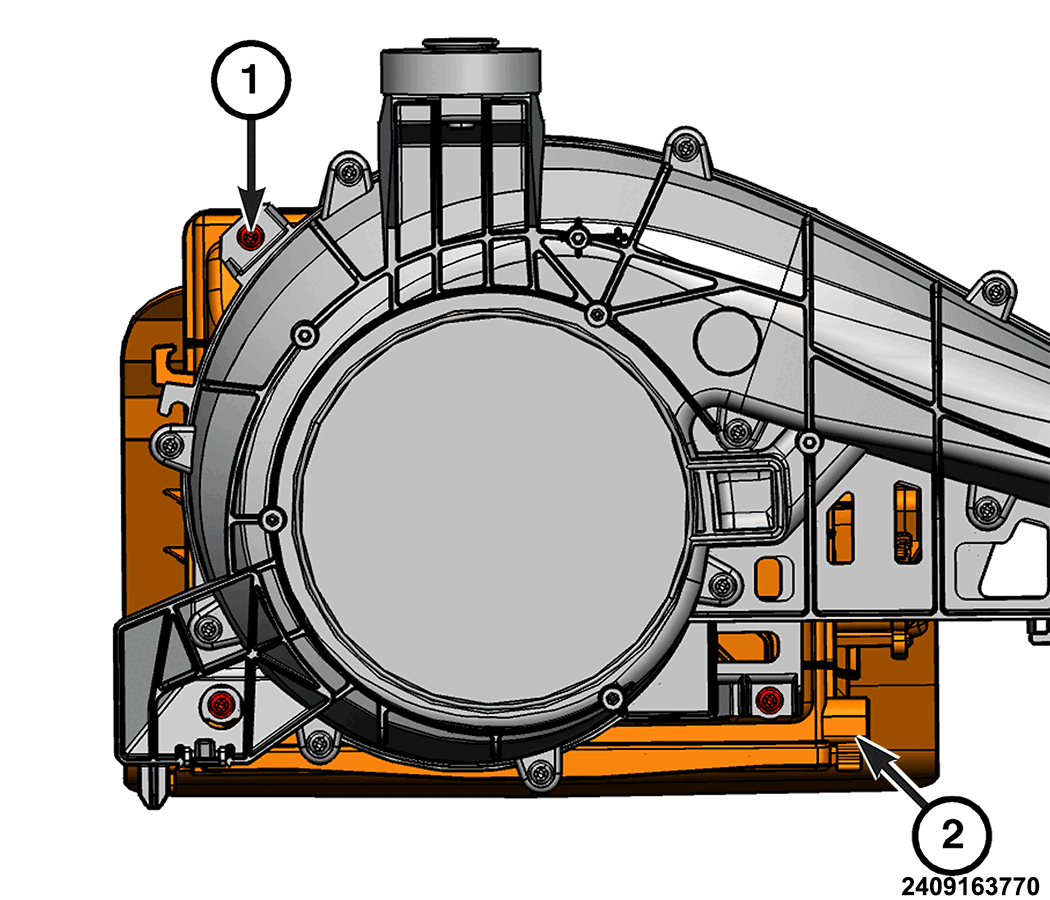

4. Remove the top fastener (1) that secures the air inlet housing (2) to the HVAC housing assembly.

   Courtesy of CHRYSLER GROUP, LLC

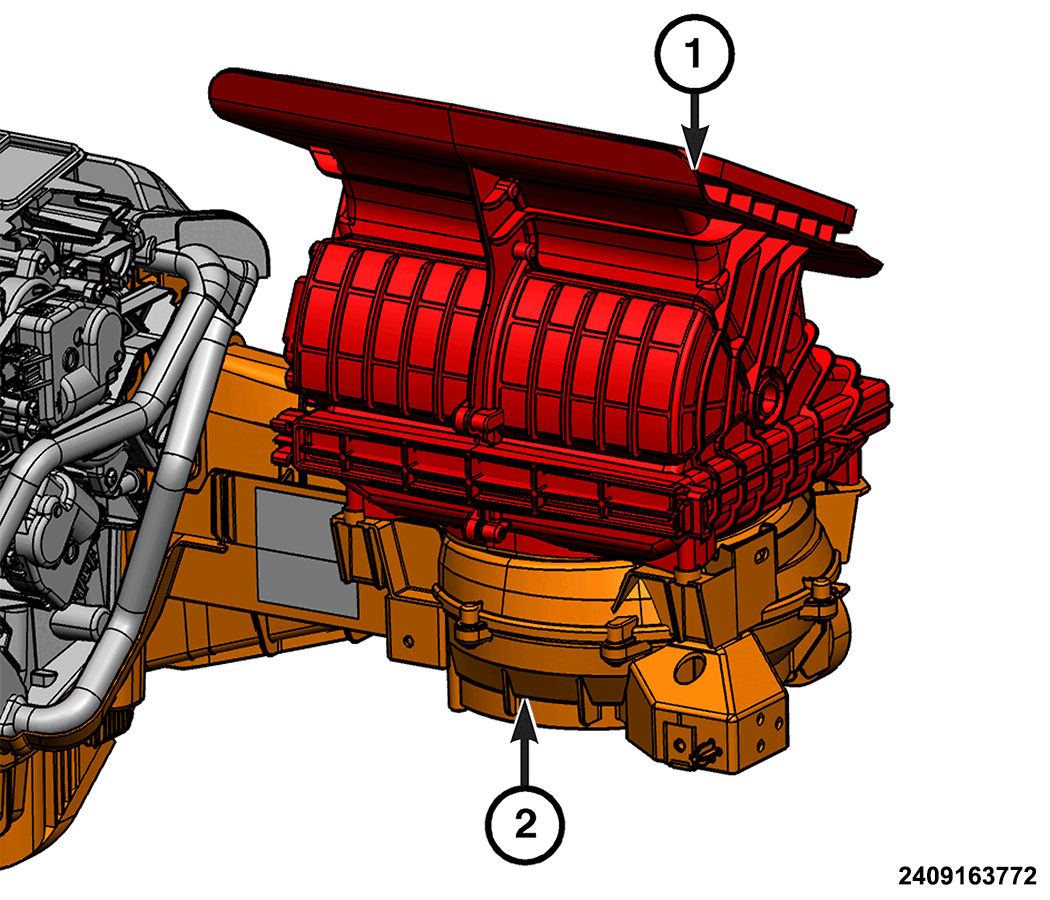

5. Remove the air inlet housing (1) from the HVAC housing assembly (2).

ASSEMBLY

1. Install the air inlet housing to the HVAC housing assembly.
2. Install the top fastener that secures the air inlet housing to the HVAC housing assembly and tighten securely.
3. Install the bottom fasteners that secures the air inlet housing to the HVAC housing assembly and tighten securely.
4. Connect the wire harness connector to the actuator.
5. Install the HVAC housing assembly. Refer to HOUSING, HVAC, REMOVAL AND INSTALLATION .
