Engine Timing Verification

CRANKSHAFT ALIGNMENT - 60 DEGREES AFTER TDC

1. Disconnect and isolate the negative battery cable(s). Refer to 3.0L, BATTERY DISCONNECT & CONNECT - DUAL 12 VOLT BATTERY SYSTEM .

   Courtesy of CHRYSLER GROUP, LLC

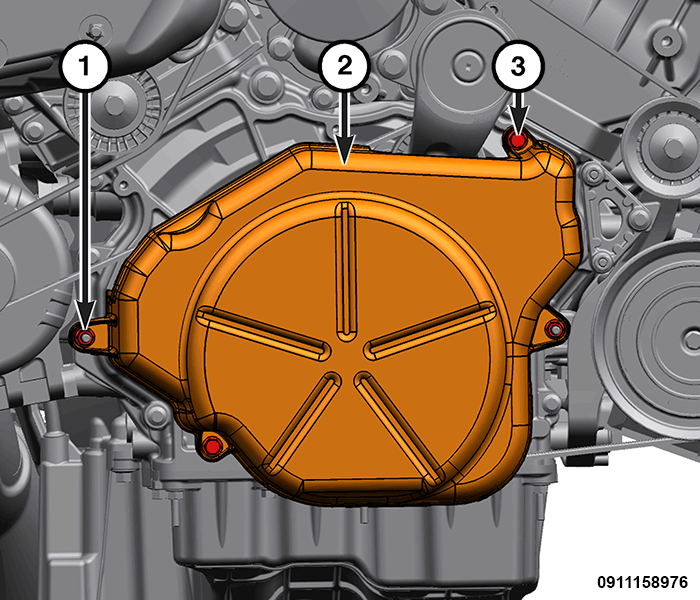

   1 - Vibration Dampener Cover Nuts

   2 - Vibration Dampener Cover

   3 - Vibration Dampener Cover Bolts

2. Remove the vibration dampener cover nuts, vibration dampener cover bolts and the vibration dampener cover.

   Courtesy of CHRYSLER GROUP, LLC

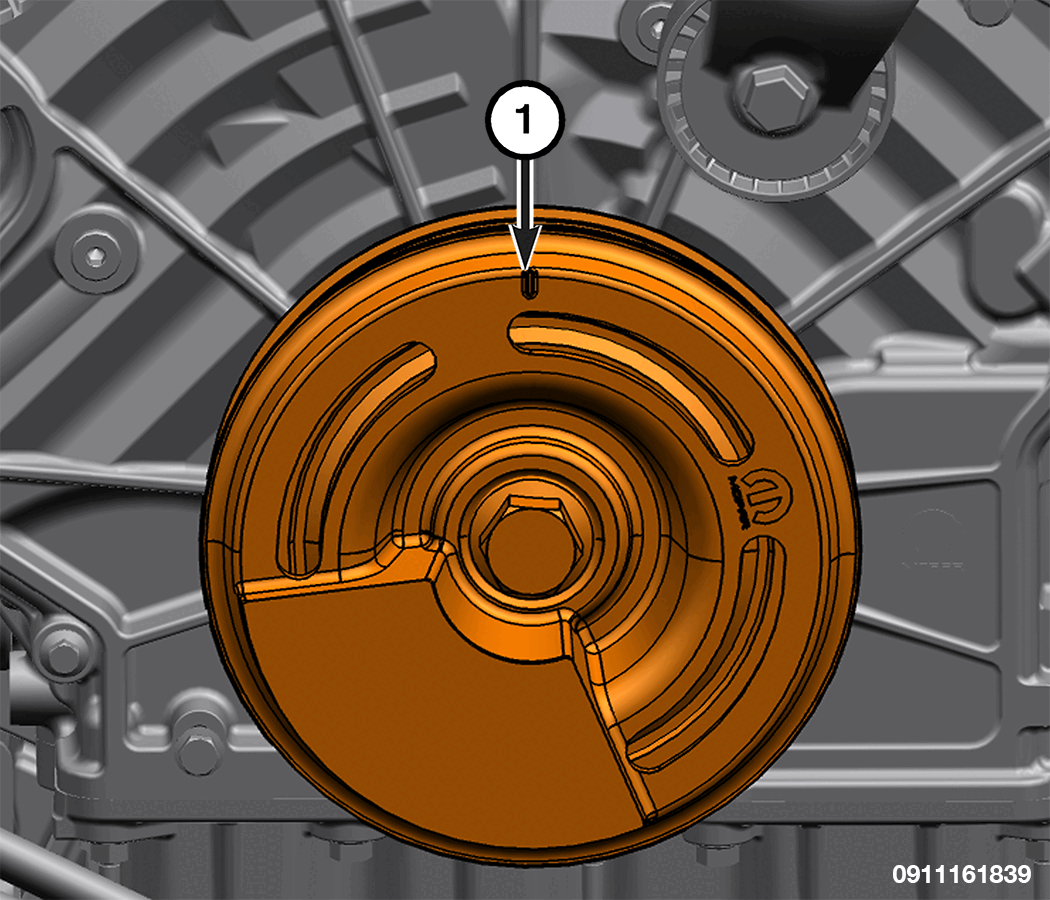

   1 - Timing Mark

3. Rotate the engine until timing mark on the crankshaft is at the 12 O'clock position, (this is 60° ATDC).
4. Remove the Camshaft Position (CMP) sensor. Refer to ENGINE SENSORS, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

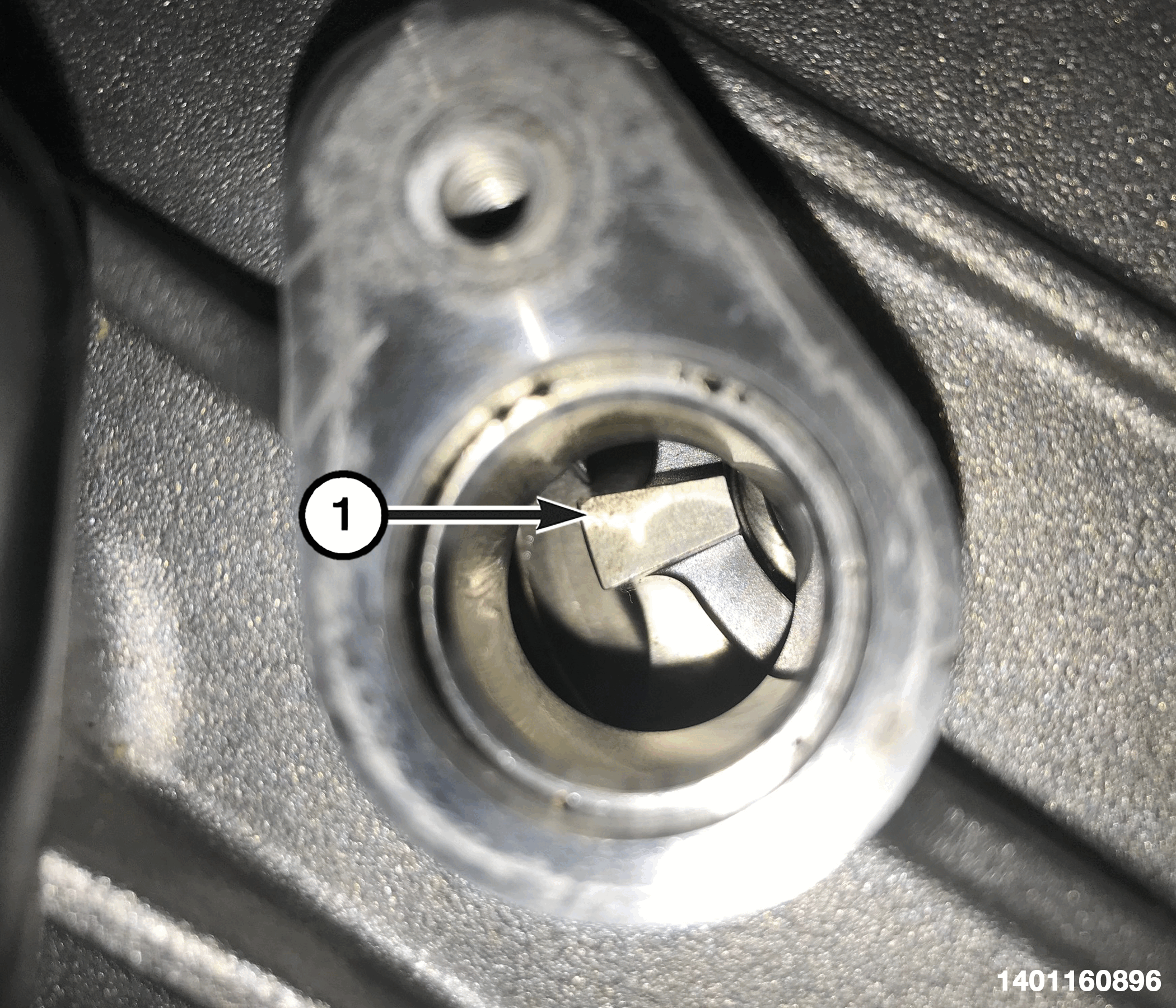

   1 - Reluctor Wheel

5. Observe the location of the reluctor wheel. If the view matches the illustration the engine is correctly timed, proceed to step 7. If the view is different than the view in the illustration, go to the next step.

   Courtesy of CHRYSLER GROUP, LLC

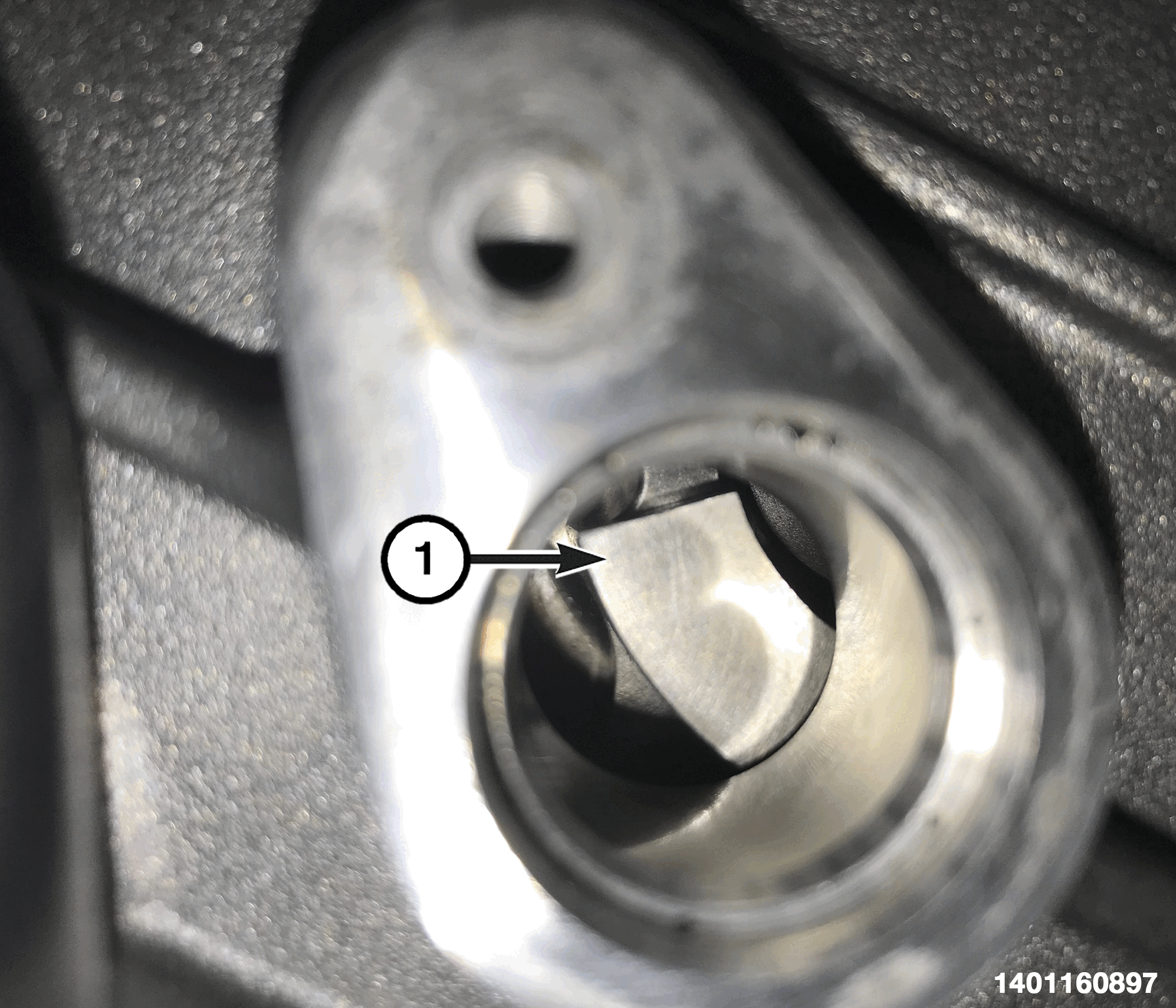

   1 - Reluctor Wheel

6. If you see this view of the reluctor wheel the engine is 180° off time.
7. Install the Camshaft Position (CMP) sensor. Refer to ENGINE SENSORS, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

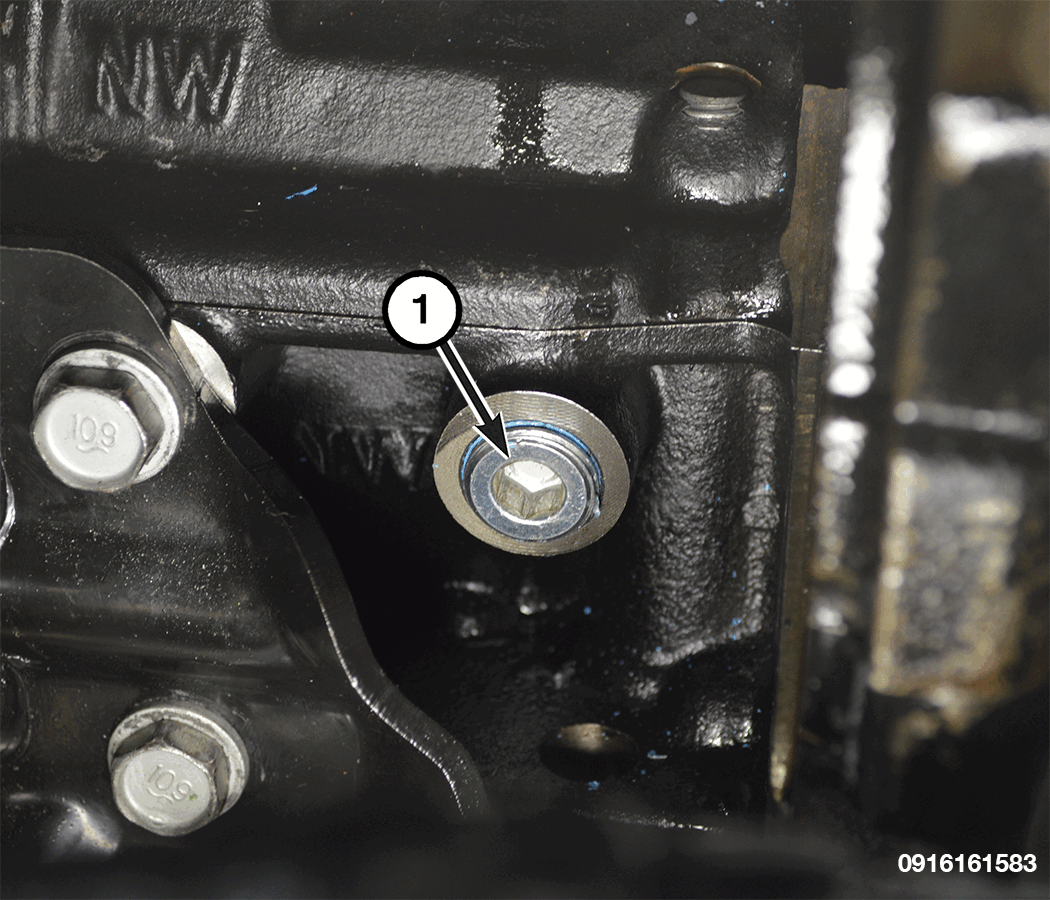

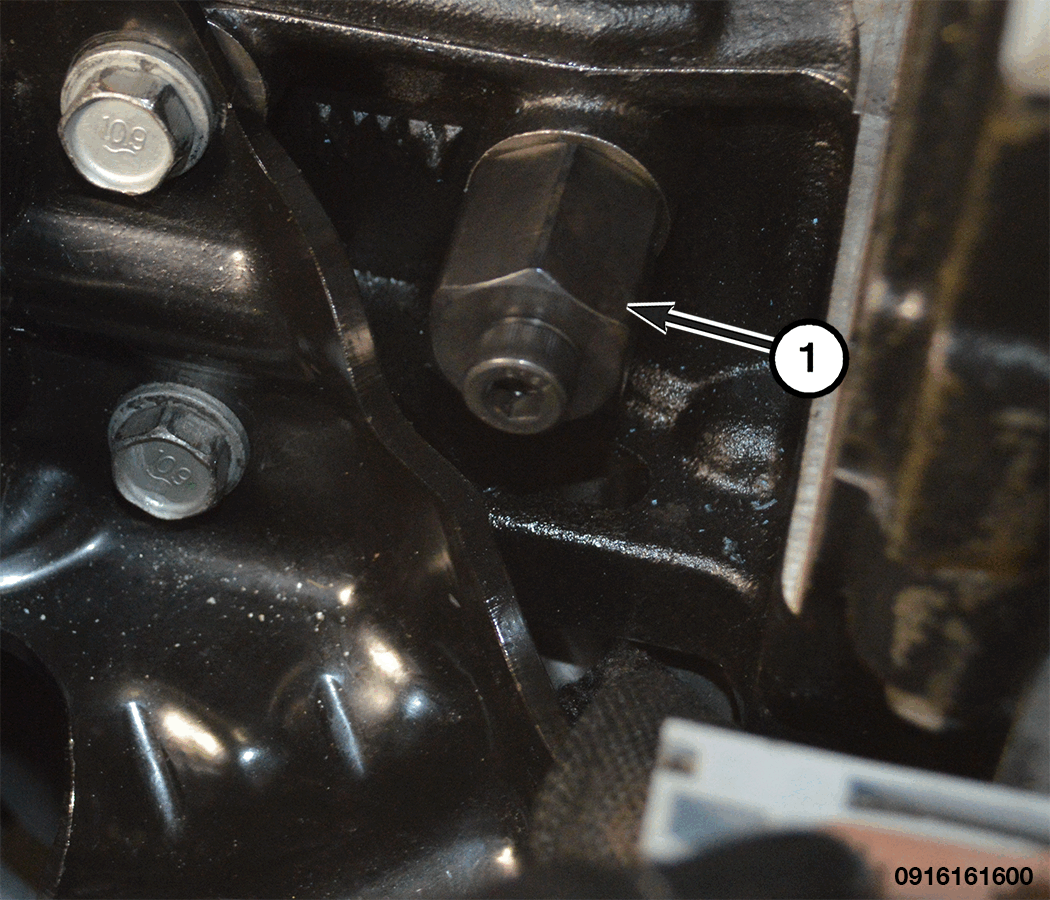

   1 - Engine Block Plug

8. Remove the engine block plug.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Crankshaft Timing Tool

9. Install the (special tool #VM.10339, Tool, Crankshaft Timing) into the starter side of the engine block. If the Crankshaft Locking Tool does not fully go into the engine block and stops short, the engine is not properly set to 60° ATDC. Rotate the engine so the Crankshaft Locking Tool fully engages into engine block and crankshaft. Once fully engaged, thread tool into engine block and install the bolt. The crankshaft is now set at 60° ATDC.

CAMSHAFT ALIGNMENT

The following tool are required for timing alignment of the camshafts.

• Left Camshaft - (special tool #VM.10338A-2, Timing Tool, Camshaft (Left))
• Right Camshaft - (special tool #VM.10338A-1, Timing Tool, Camshaft (Right))

1. The crankshaft should be locked at 60° ATDC prior to timing camshafts.

   Courtesy of CHRYSLER GROUP, LLC

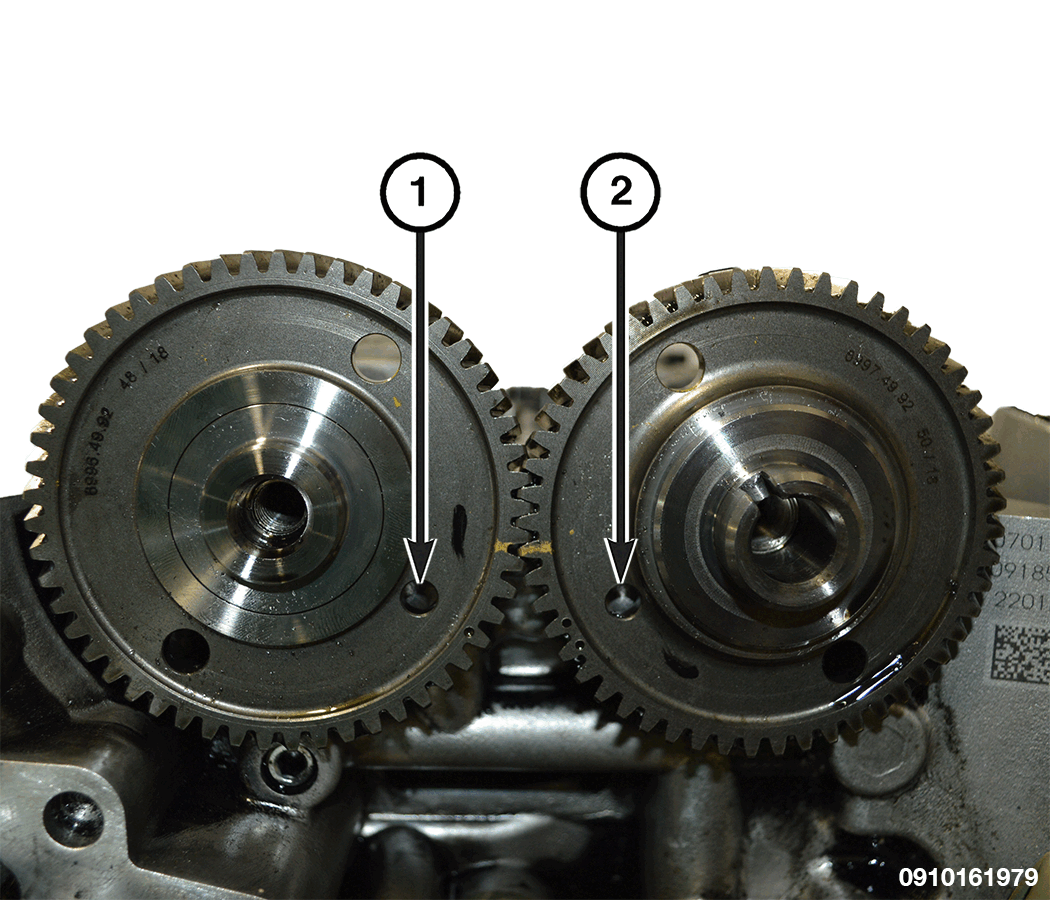

   1 - Intake Camshaft Gear Timing Mark

   2 - Exhaust Camshaft Timing Gear Mark

2. The intake camshaft gear timing mark should be at the four O'clock position and the exhaust camshaft timing gear mark should be at the eight O'clock position.

   Courtesy of CHRYSLER GROUP, LLC

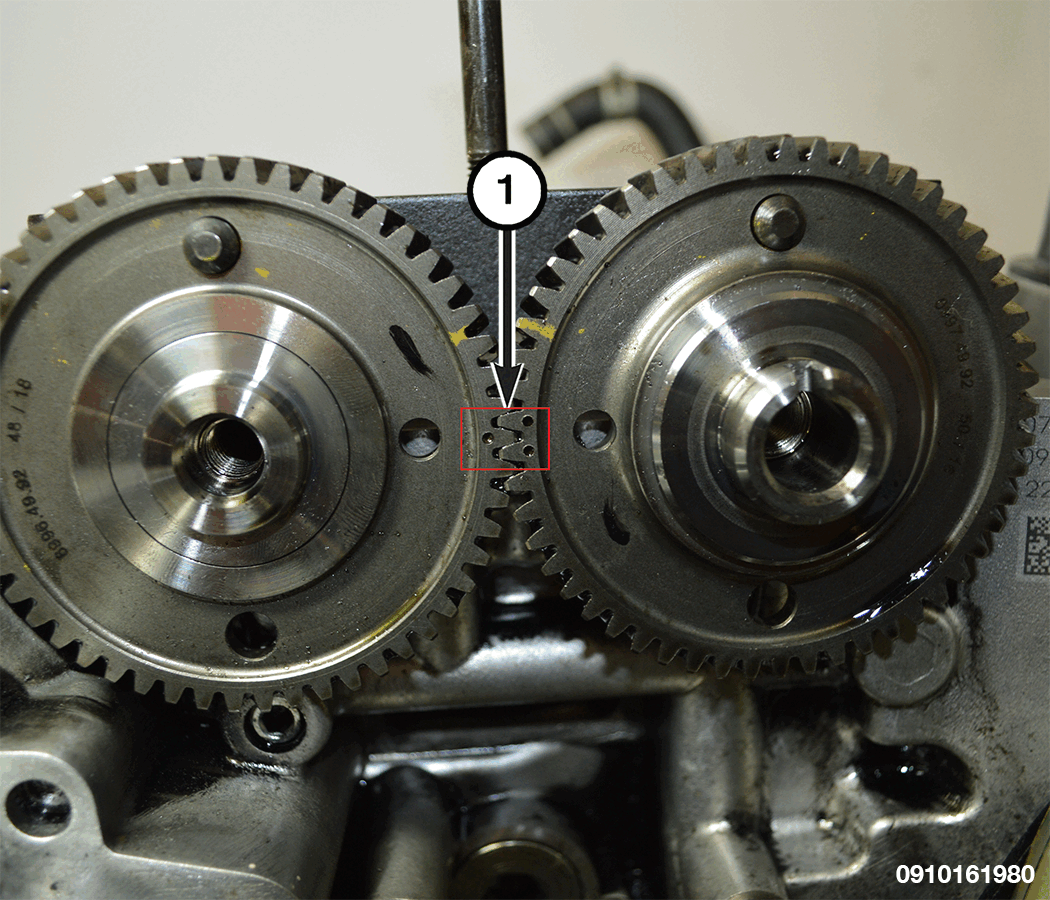

   1 - Camshaft Gear Dots

3. Rotate the camshafts to line up the three camshaft gear dots and install the left camshaft alignment tool.

   Courtesy of CHRYSLER GROUP, LLC

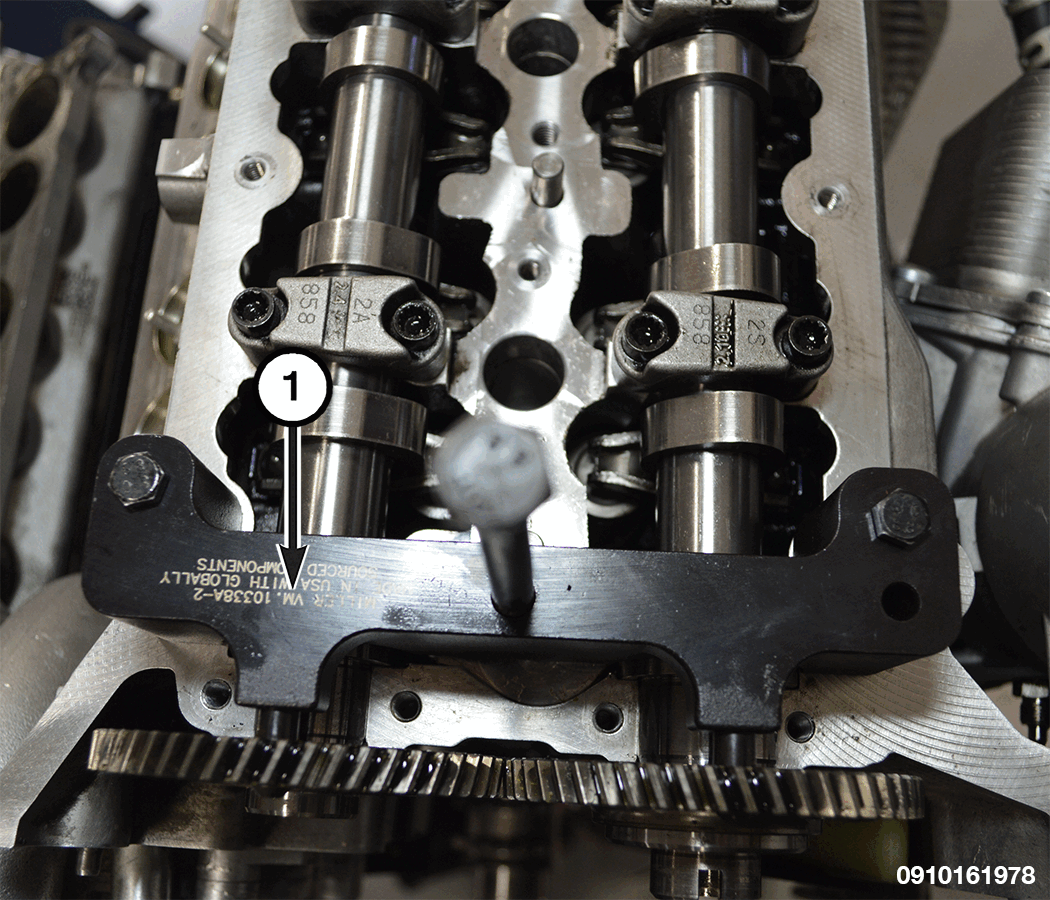

   1 - Left Camshaft Alignment Tool

4. If the left camshaft alignment tool locking pins don't align up and fit into the holes on the camshaft gears then the camshafts are not timed properly.

FUEL INJECTION PUMP TIMING

With the engine at base timing align the fuel injection pump as described below.

Courtesy of CHRYSLER GROUP, LLC

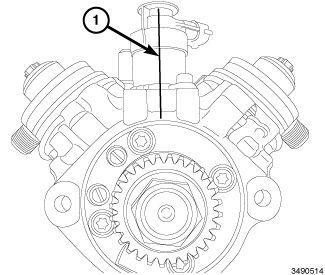

1. Mark the center line on the fuel quantity solenoid with a paint pan as making a reference to zero 0°.

   Courtesy of CHRYSLER GROUP, LLC

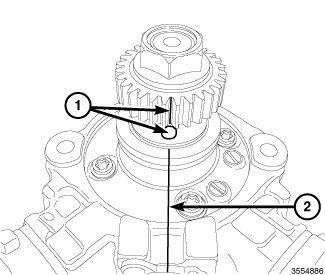

   1 - Gear and Hole

   2 - Reference Mark

2. Using a paint pen, mark the gear and hole as a reference mark.

   Courtesy of CHRYSLER GROUP, LLC

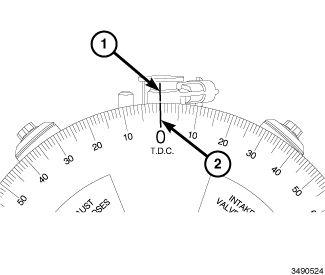

   1 - Fuel Quantity Solenoid

   2 - Zero

3. Align the commercially available degree wheel to zero with the center line on fuel quantity solenoid.

   Courtesy of CHRYSLER GROUP, LLC

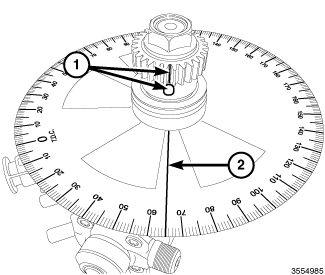

   1 - Index Mark

   2 - Degree Wheel

4. Rotate the pump gear counter clockwise  so the index mark on drive gear aligns at the 65° mark on the degree wheel.
