Glow Plug
WARNING: This page is about a different variant/trim than selected.

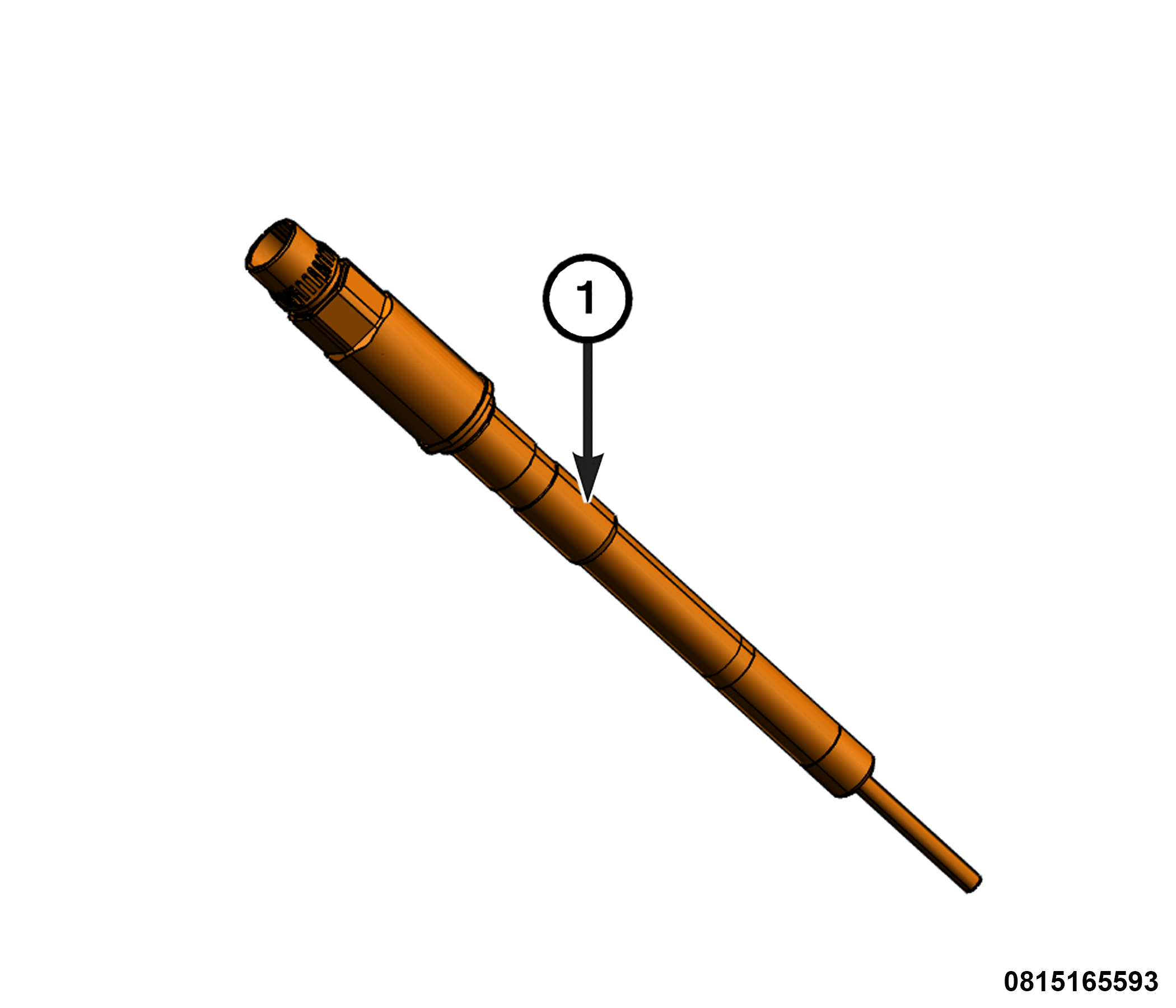

| 1 - Pressure Sensor Glow Plug |
- Cylinder No. 1 uses a pressure sensor glow plug.

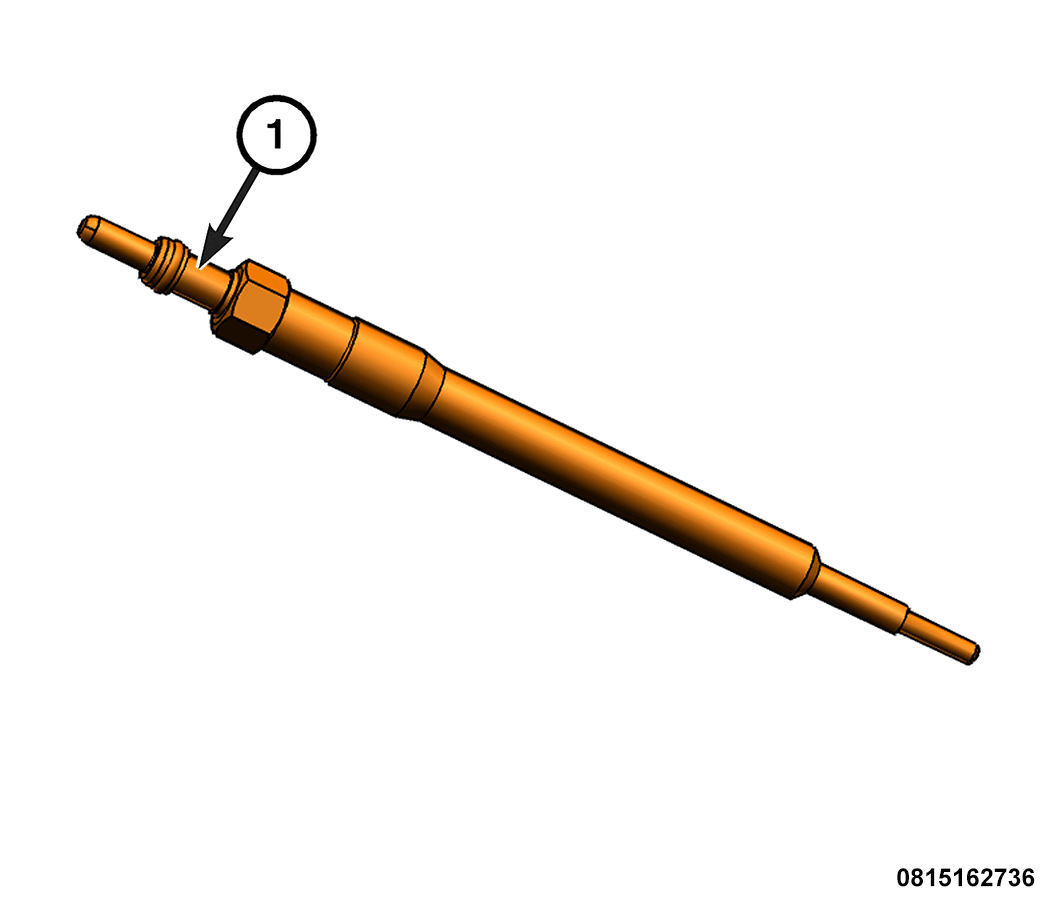

1 - Standard Glow Plug - Cylinders 2 through 6 use the standard glow plug.
CAUTION:
The glow plugs operate on a 7-volt system. The glow plugs DO NOT tolerate any over voltage. Full battery voltage will destroy the glow plug immediately. DO NOT test the glow plugs with a 12V source as damage will occur to the glow plug.
CAUTION:
- Never bend, bump or knock the fast metallic glow plugs.
- Fast metallic glow plugs must not be handled loose in a container. Store, handle, and transport them only in original boxes.
- If there is any doubt about the proper condition of a glow plug, do not reuse it.
- Do not clean the glow plugs with abrasive or aggressive media.
- Avoid dipping the glow plug into fluids.
- Read Diagnostic Trouble Codes (DTCs). If a glow plug problem is indicated, do not start the engine.
CAUTION:
Disregarding these instructions may cause severe engine damage.

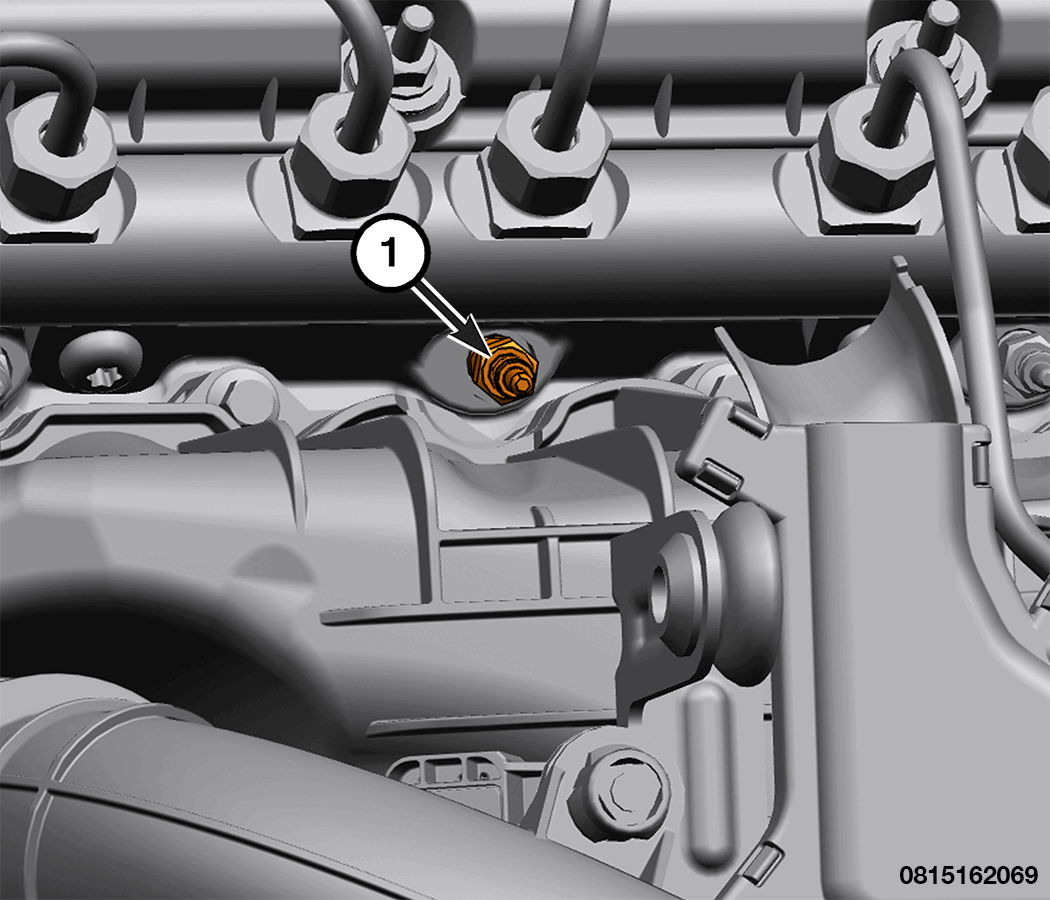

| 1 - Glow Plug |
- Glow plugs are used to help start a cold or cool engine. The glow plugs will heat up and glow to heat the combustion chamber of each cylinder. An individual glow plug is used for each cylinder. Each glow plug is threaded into the side of the cylinder head below the fuel rail.
