Cascade Overflow Valve
WARNING: This page is about a different variant/trim than selected.

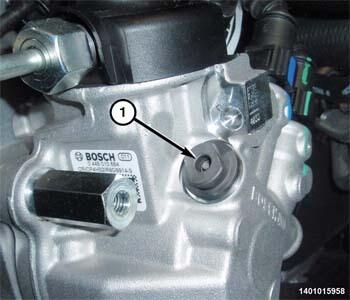

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - Cascade Overflow Valve |
- The Cascade Overflow Valve is located on the high pressure fuel injection pump.

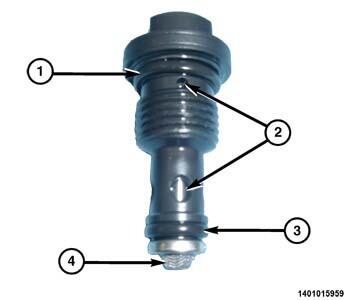

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - O-ring |
| 2 - Orifices |
| 3 - O-ring |
| 4 - Filter Screen |
- The Cascade Overflow Valve houses a filter screen for filtering the incoming diesel fuel to the fuel injection pump. If the filter starts to get restricted or one of the orifices gets plugged, it will effect fuel flow volume.
