Cylinder Head Cover
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

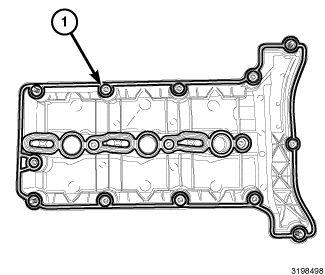

| 1 - Cylinder Head Cover Gasket |
- The 3.0L cylinder head cover is made of an injection molded composite and is used to cover the camshafts, lifters and followers.
- The cylinder head cover gasket is not serviceable, if the gasket is found to be defective then a new cylinder head cover must be installed.
