Torque Specifications: Lubrication

WARNING: This page is about a different variant/trim than selected.

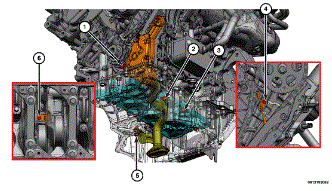

G00661026

Courtesy of CHRYSLER GROUP, LLC

TORQUE SPECIFICATIONS - LUBRICATION (1 OF 2)

CALLOUT	DESCRIPTIONS	SPECIFICATIONS	COMMENT
1	Oil Pump	14 N.m (11 Ft. Lbs.)	-
2, 3, 5	Oil Pickup Tube Bolts	11 N.m (8 Ft. Lbs.)	-
4	Oil Jet Bolt (timing chain)	11 N.m (8 Ft. Lbs.)	-
6	Oil Jet Bolt (piston)	11 N.m (8 Ft. Lbs.)	-

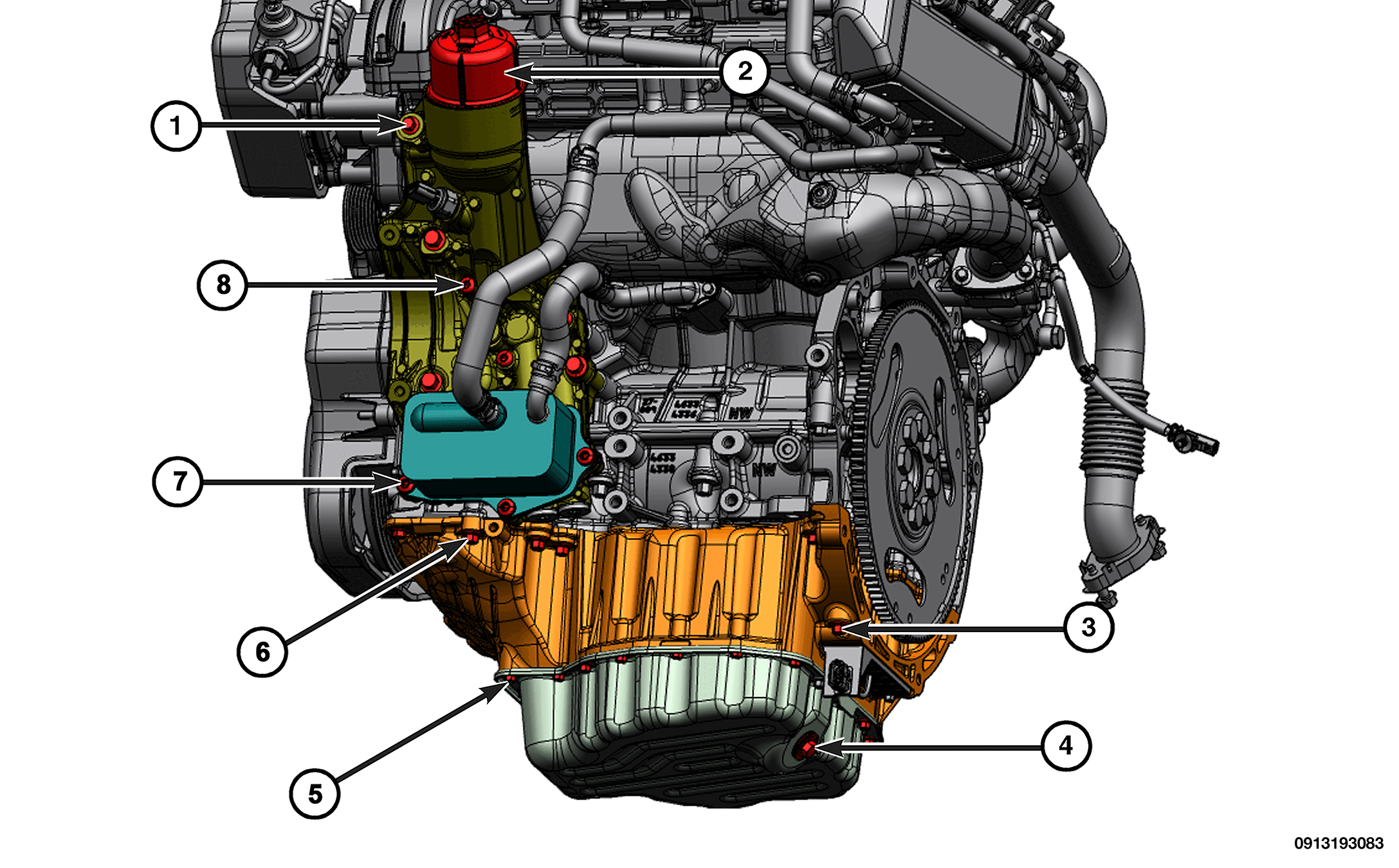

GC0205955

Courtesy of CHRYSLER GROUP, LLC

TORQUE SPECIFICATIONS - LUBRICATION (2 OF 2)

1	Oil Cooler/Oil Filter Housing Adapter Bolts	30 N.m (22 Ft. Lbs.)	-
2	Oil Filter Cap	25 N.m (18 Ft. Lbs.)	-

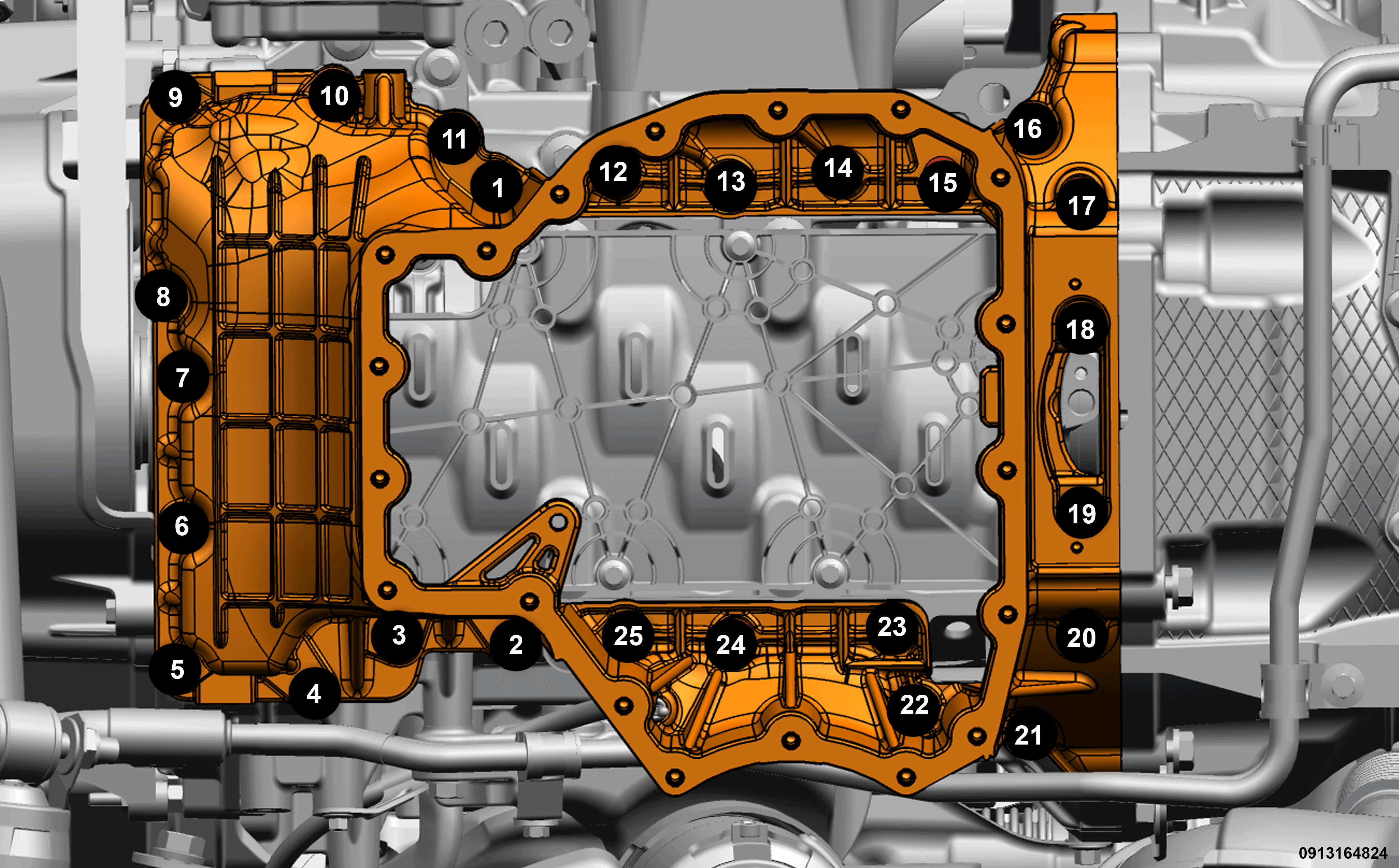

3, 6	Upper Oil Pan Bolts	Torque Procedure: Tighten the upper oil pan bolts finger tight. Tighten the bolts to 15 N.m (11 Ft. Lbs.). Loosen bolts 7-13 one at a time 90° in the sequence shown in the illustration, and retighten to 15 N.m (Ft. Lbs.). Loosen bolts 1-6 and 14-25 one at a time 90° in the sequence shown in the illustration, and retighten to 15 N.m (Ft. Lbs.).	Tightening Sequence Courtesy of CHRYSLER GROUP, LLC NOTE: Bolts in the following positions are stud bolts (4, 6, 16, 18, 20, 22, and 25).
4	Oil Drain Plug	45 N.m (33 Ft. Lbs.)	-

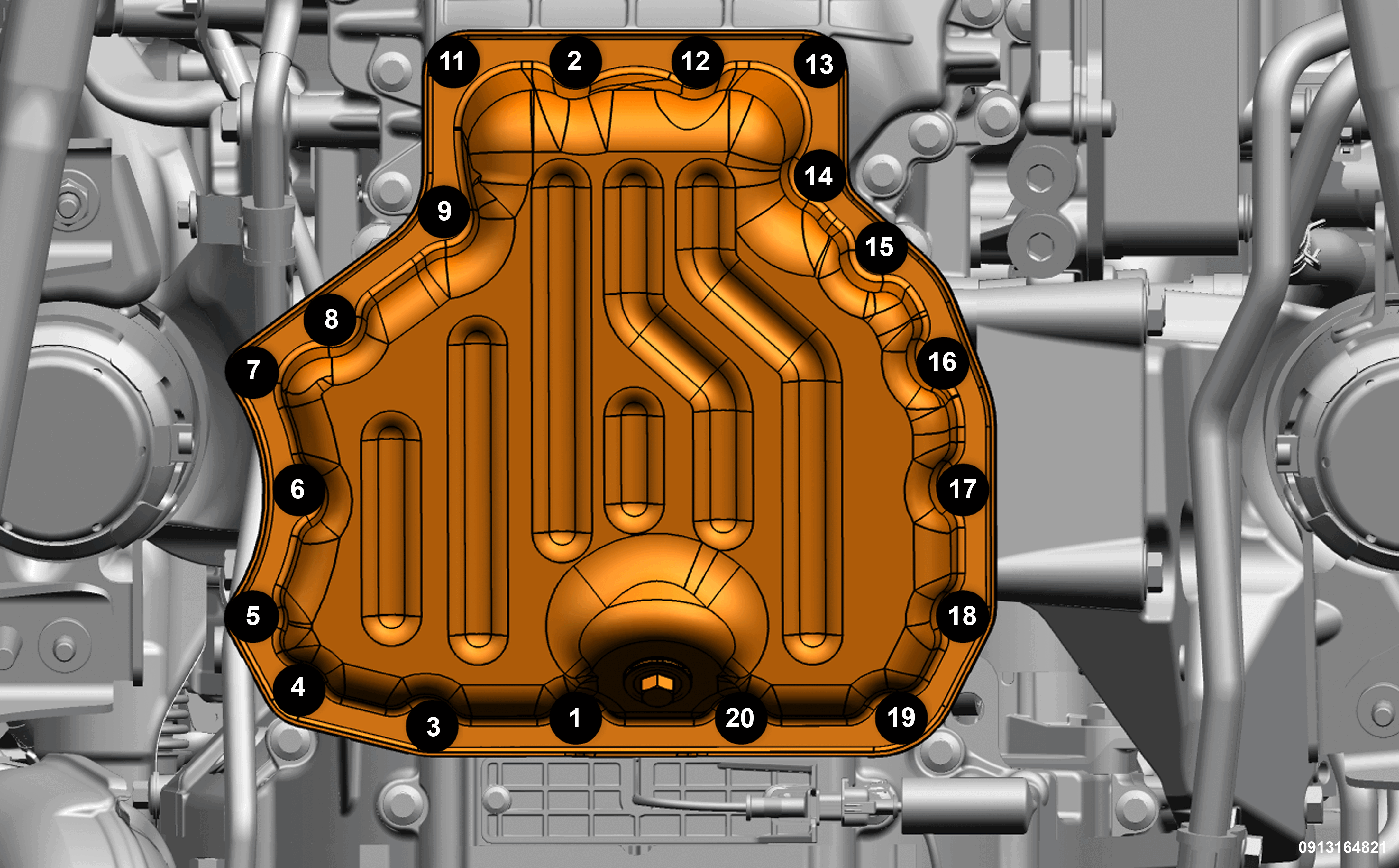

5	Lower Oil Pan Bolts	Torque Procedure: Tighten the lower oil pan bolts finger tight. Tighten the bolts to 15 N.m (11 Ft. Lbs.). Loosen bolts one at a time 90° in the sequence shown in the illustration, and retighten to 15 N.m (Ft. Lbs.).	Tightening Sequence Courtesy of CHRYSLER GROUP, LLC
7	Oil Cooler Bolts	30 N.m (22 Ft. Lbs.)	-
-	Dipstick Tube Bolt (head)	11 N.m (8 Ft. Lbs.)	-
-	Dipstick Tube Bolt (sump)	11 N.m (8 Ft. Lbs.)	-
-	Windage Tray	11 N.m (8 Ft. Lbs.)	-
