Front Engine

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

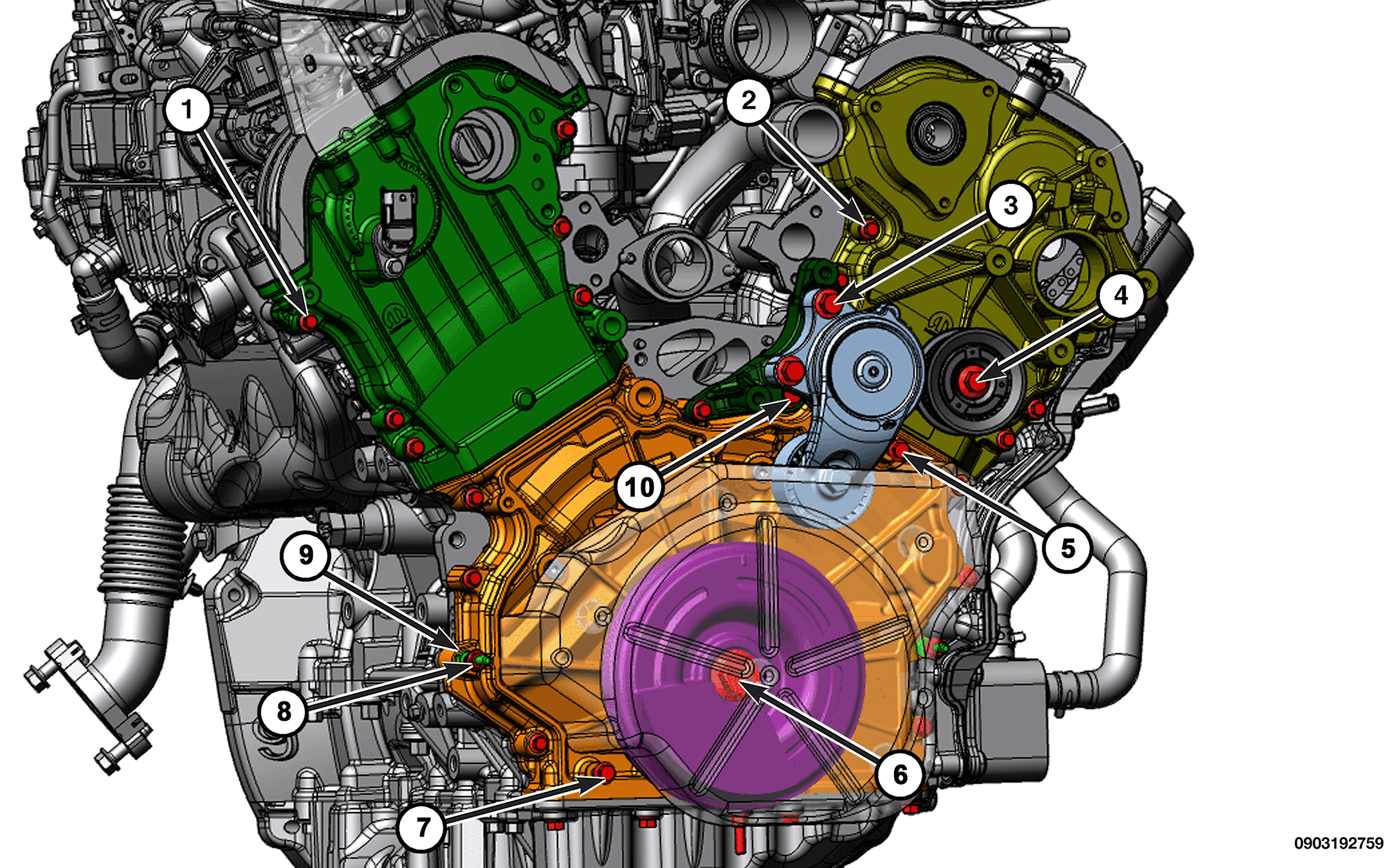

TORQUE SPECIFICATIONS - FRONT ENGINE

CALLOUT	DESCRIPTIONS	SPECIFICATIONS	COMMENT

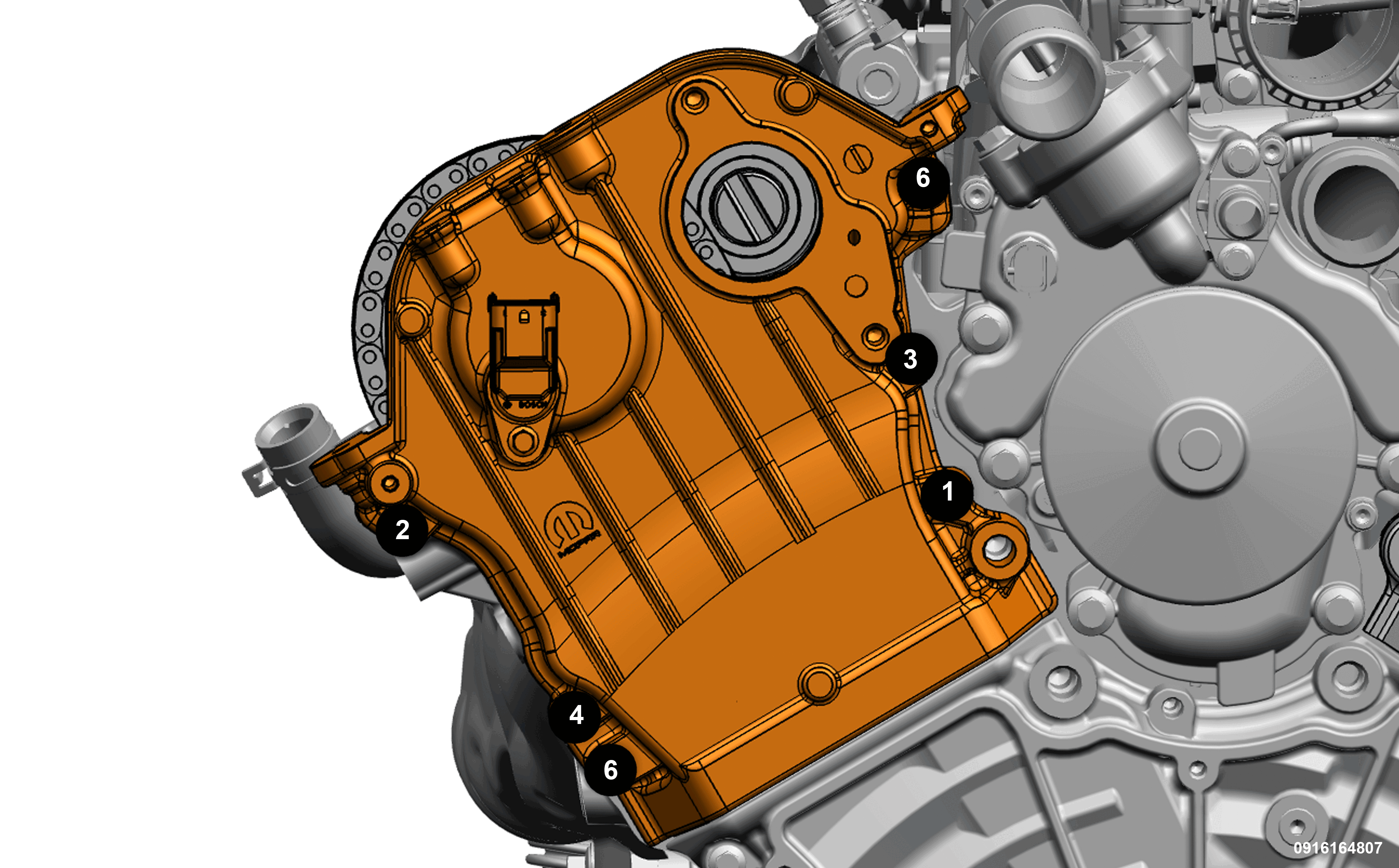

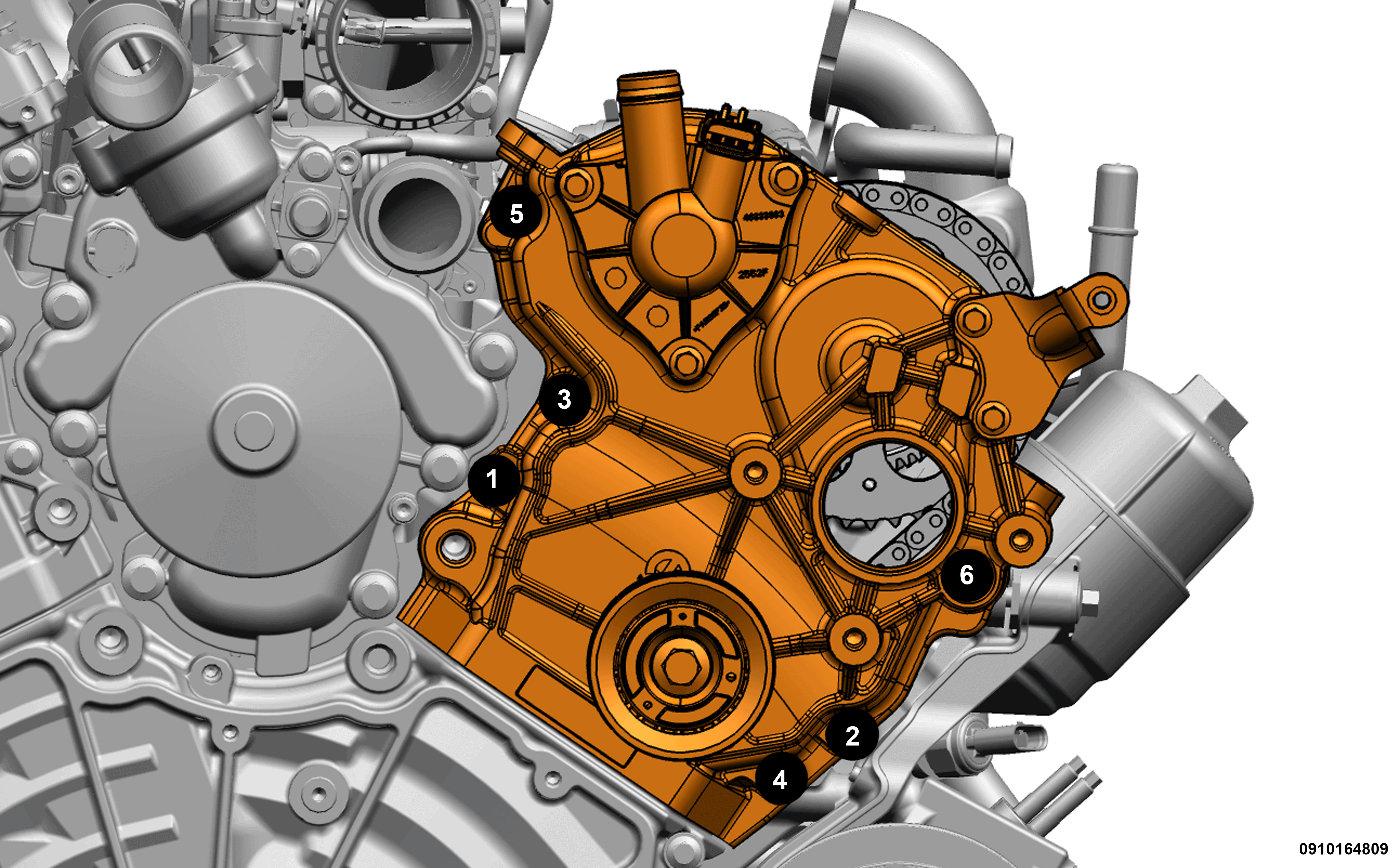

1, 2	Timing Chain Cover Bolts	Torque Procedure: Tighten the M6 bolts finger tight. Tighten the M6 bolts to 9 N.m (80 In. Lbs.). Loosen the M6 bolts 60° and retighten to 15 N.m (11 Ft. Lbs.).	Tightening Sequence Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
3	Belt Tensioner Pulley Bolt	45 N.m (33 Ft. Lbs.)	-
4	Idler Pulley Bolts	32 N.m (24 Ft. Lbs.)	-

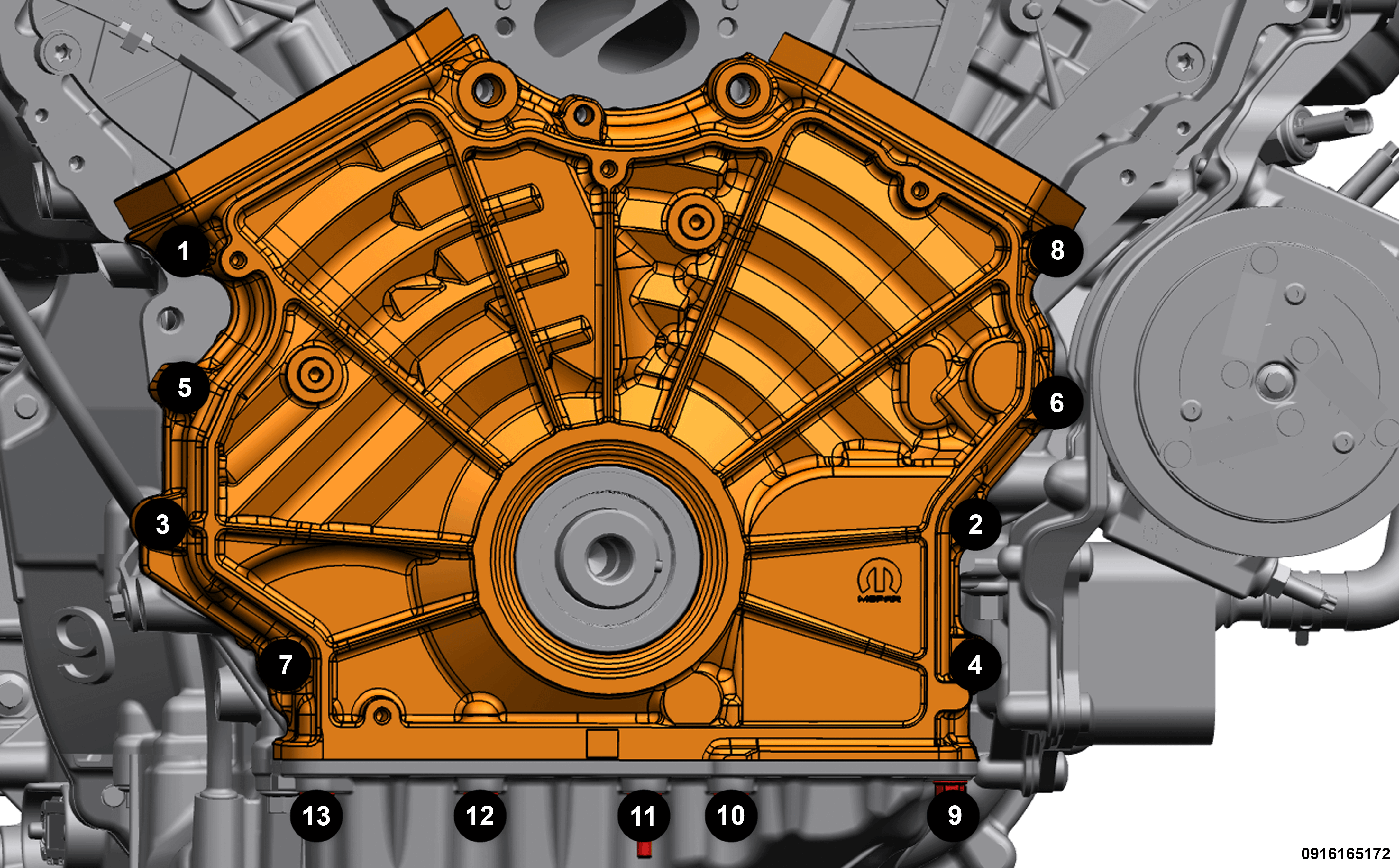

5, 9	Timing Chain Cover Bolts (lower)	Torque Procedure: Tighten the lower timing cover bolts (1 and 3) finger tight. Tighten the M6 bolts (1 - 8) to 9 N.m (80 In. Lbs.). Loosen the M6 bolts 60° and tighten to 15 N.m (Ft. Lbs.). Install the oil pan-to-lower chain cover bolts and tighten (9 - 13) to 15 N.m (11 Ft. Lbs.). Loosen each bolt one at a time 90° and tighten to 15 N.m (11 Ft. Lbs.).	Tightening Sequence Position 2 and 3 are double ended studs. Courtesy of CHRYSLER GROUP, LLC
6	Vibration Damper Bolt	100 N.m (74 Ft. Lbs.) + 125°	-
7	Vibration Damper Cover Bolts	10 N.m (7 Ft. Lbs.)	-
8	Vibration Damper Cover Nut	9 N.m (80 In. Lbs.)	-
10	Belt Tensioner to Mounting Bracket - M10 Bolt	45 N.m (33 Ft. Lbs.)	-
11	Belt Tensioner to Mounting Bracket - M6 Bolt	11 N.m (8 Ft. Lbs.)	-
-	Fuel Injection Pump Blocker Plate Bolts	25 N.m (18 Ft. Lbs.)	-
-	Oil Breather/Camshaft Seal Housing Bolts	14 N.m (10 Ft. Lbs.)	-
-	Vacuum Pump Bolt	30 N.m (22 Ft. Lbs.)	-
