Engine Block
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

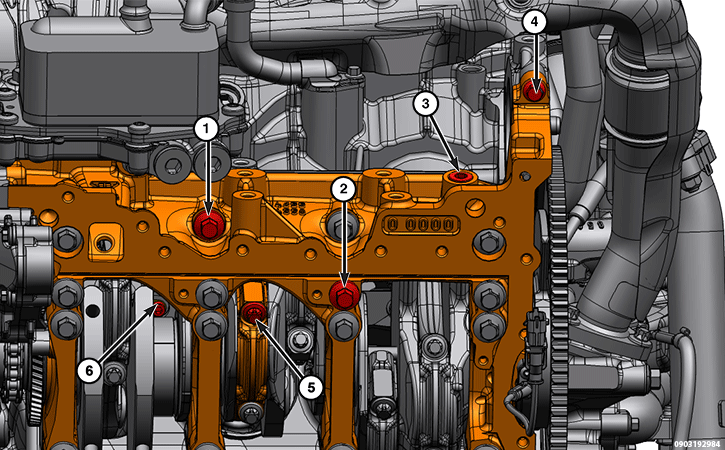

TORQUE SPECIFICATIONS - ENGINE BLOCK
| CALLOUT |
DESCRIPTIONS |
SPECIFICATION |
COMMENT |
| 1, 2, 4 |
Bedplate Bolts |
Torque Procedure:
- Using NEW bolts, install the 26 M12 bolts (1 - 26) and the three M8 bolts (27 - 29) finger tight.
- Tighten all M12 bolts (1 - 4, 7 - 10, 13 - 16, 19 - 22) to 45 N.m (33 Ft. Lbs.).
- Tighten the M12 bolts (1 - 16) an additional 110°.
- Tighten the M12 bolts (25 and 26) to 120 N.m (89 Ft. Lbs.).
- Tighten the M12 bolts (17 - 24) to 25 N.m (18 Ft. Lbs.).
- Tighten the M12 bolts (17 - 24) an additional 55°.
- Tighten the M12 bolts (21 - 24) an additional 75°.
- Tighten the three M8 bolts (27 - 29) to 30 N.m 22 Ft. Lbs.).
|

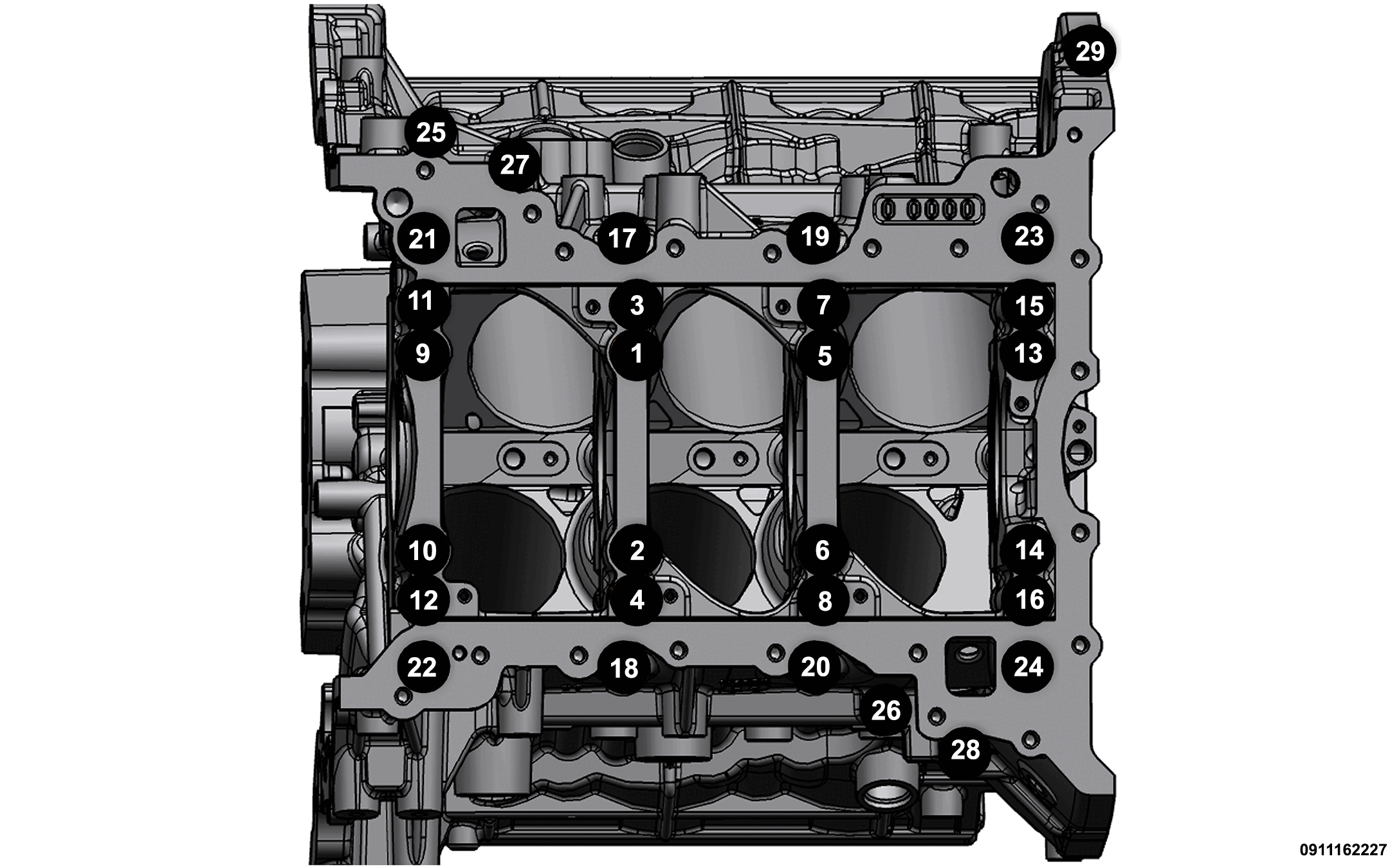

Tightening Sequence
 Courtesy of CHRYSLER GROUP, LLC
|
| 3 |
Engine Block Timing Plug |
30 N.m (22 Ft. Lbs.) |
- |
| 5 |
Piston Rod Cap Bolt |
- |
Serviced with Assembly |
| 6 |
Oil Jet Bolt (piston) |
11 N.m (8 Ft. Lbs.) |
- |
| - |
Engine Ground to Engine Block |
20 N.m (15 Ft. Lbs.) |
- |
| - |
Engine Lifting Brackets |
55 N.m (41 Ft. Lbs.) |
- |
