Cylinder Head
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|

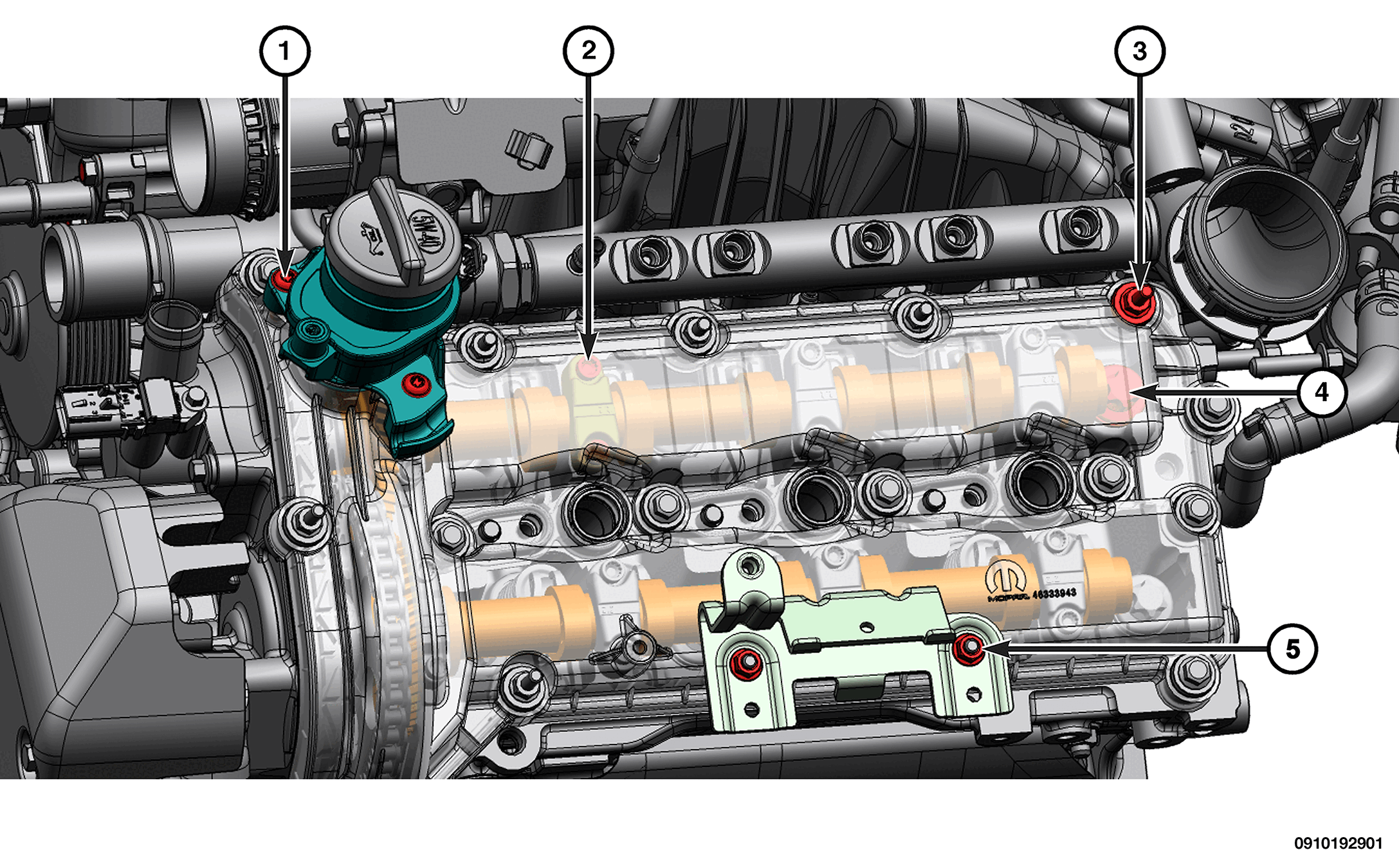

TORQUE SPECIFICATIONS - CYLINDER HEAD
| CALLOUT |
DESCRIPTIONS |
SPECIFICATION |
COMMENT |
| 1 |
Oil Filler Neck Assembly to Valve Cover |
Tighten Securely |
- |
| 2 |
Camshaft Bearing Cap Bolts |
11 N.m (8 Ft. Lbs.) |

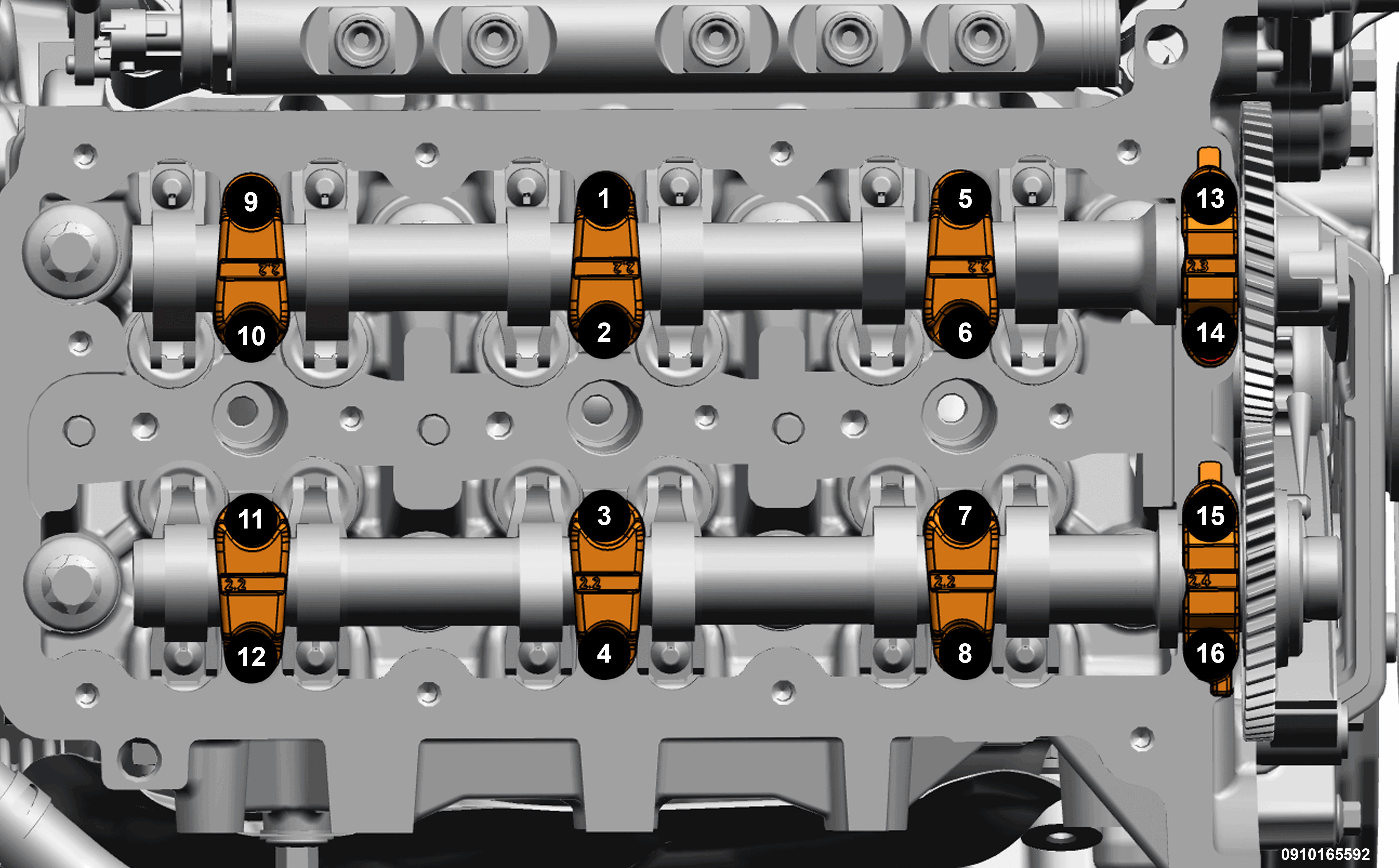

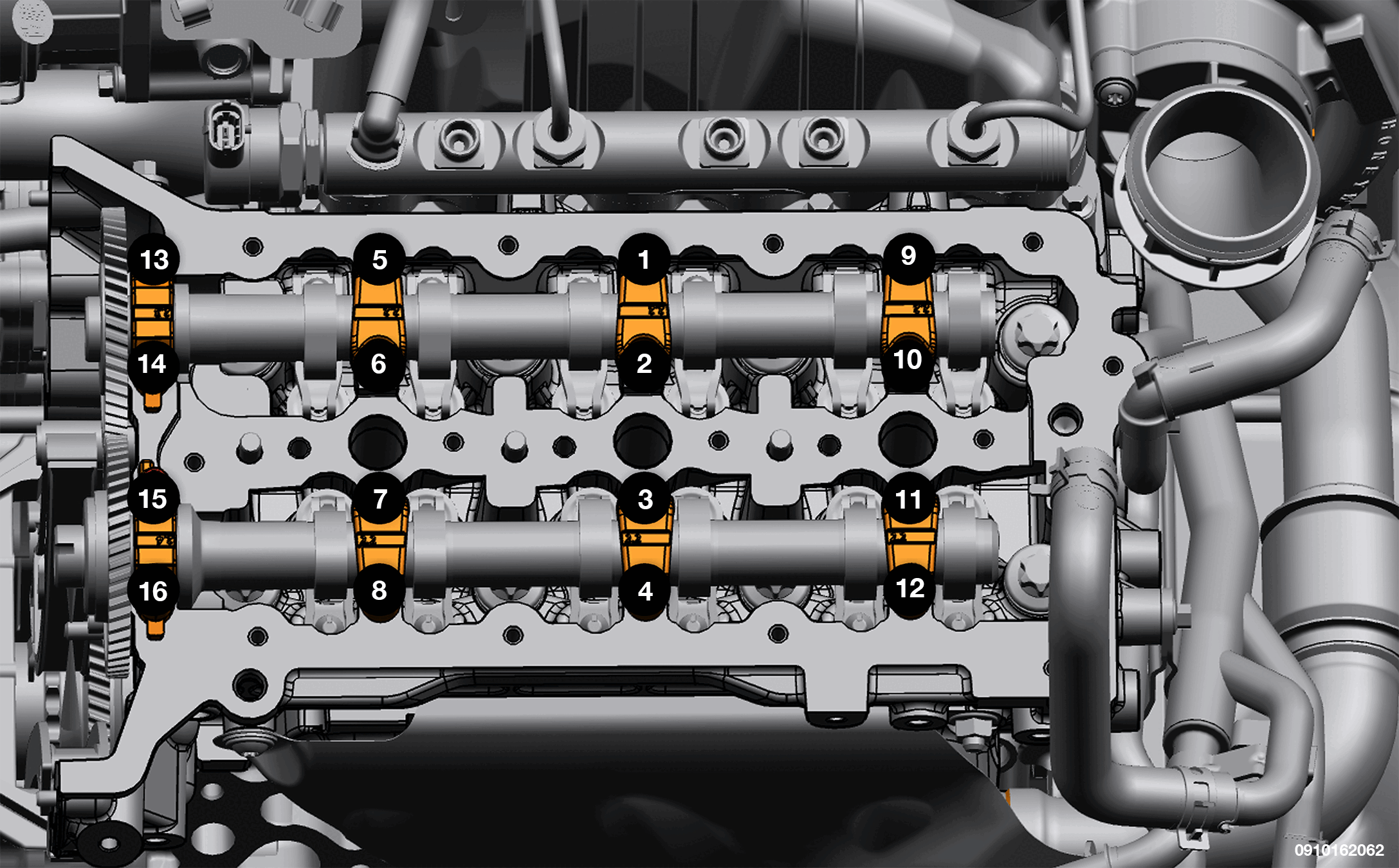

Tightening Sequence
  Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
|
| 3 |
Cylinder Head Cover Bolts |
Torque Procedure:
- Tighten the cylinder head cover bolts finger tight.
- Tighten bolts to 8 N.m (71 In. Lbs.).
- Loosen each bolt 90°.
- Tighten bolts to 10 N.m (89 In. Lbs.).
|

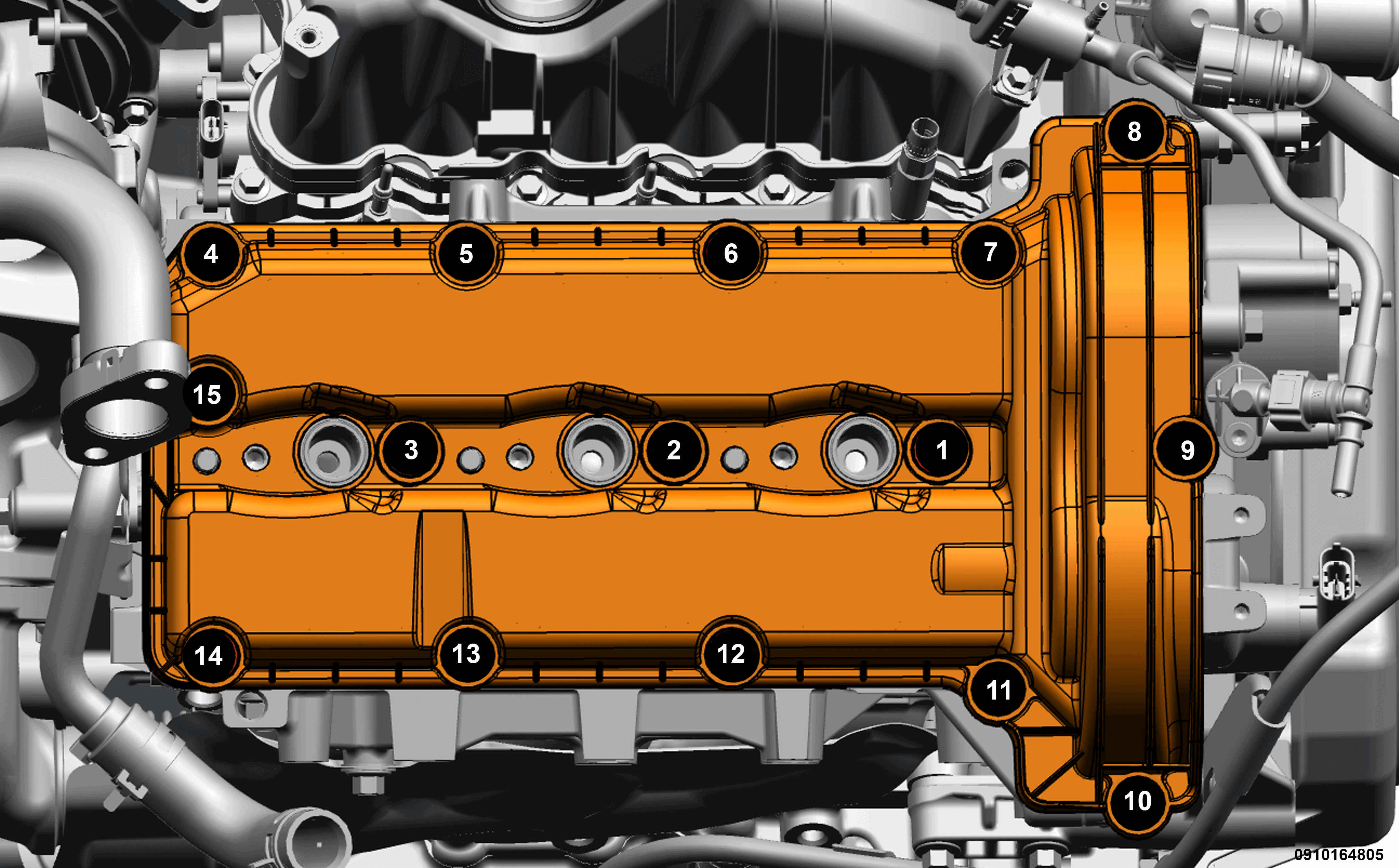

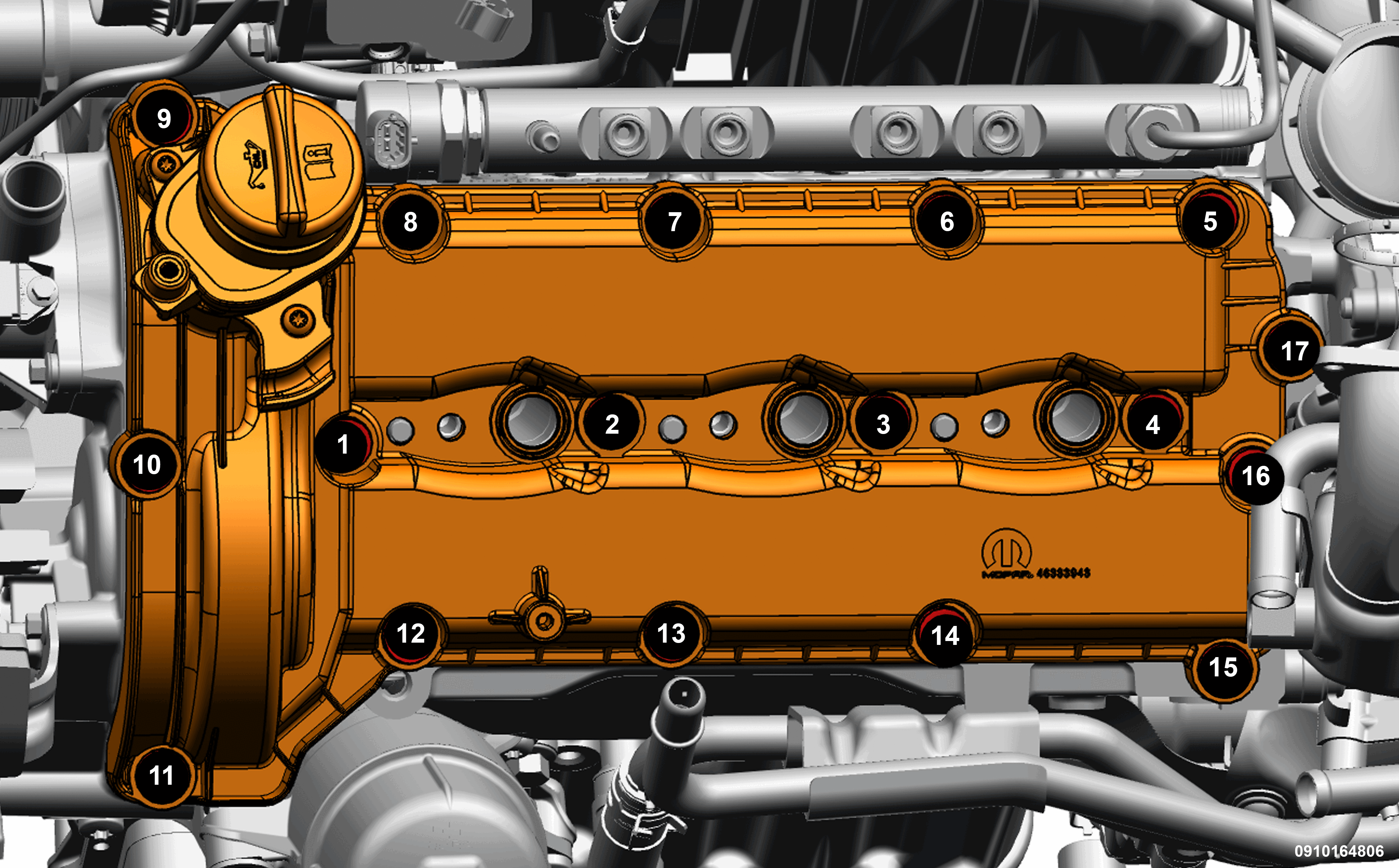

Tightening Sequence
  Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
|
| 4 |
Cylinder Head Bolts (M14) |
Torque Procedure:
- Tighten the cylinder head bolts finger tight.
- Tighten bolts to 30 N.m (22 Ft. Lbs.).
- Tighten bolts an additional 75° in sequence.
- Tighten bolts an additional 75° in sequence.
- Tighten bolts an additional 75° in sequence.
|

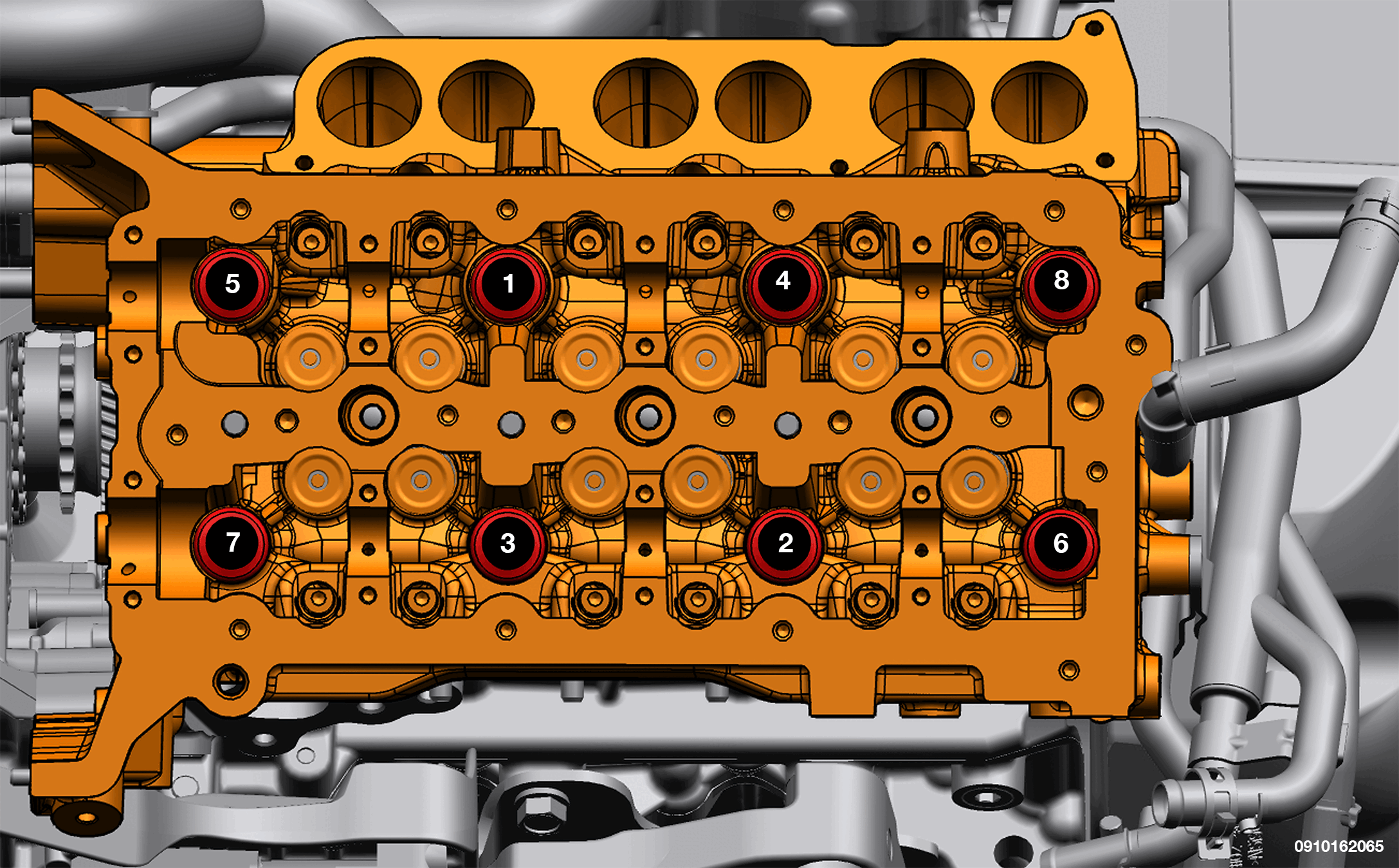

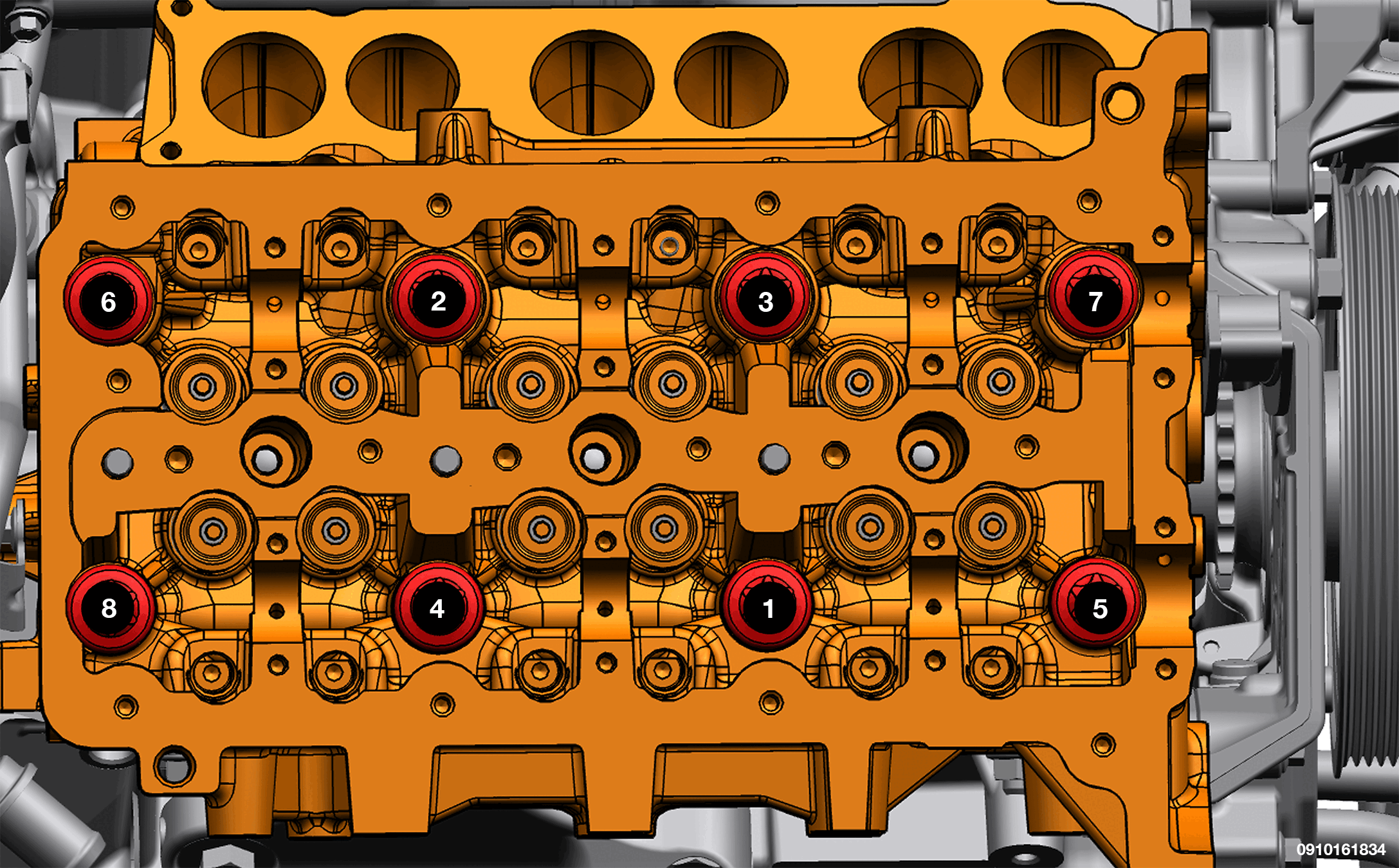

Tightening Sequence
  Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLCCHRYSLER GROUP, LLC
|
| 5 |
Fuel Line Support Bracket Nuts |
6 N.m 53 (In. Lbs.) |
- |
| - |
Coolant Tube Bolt |
25 N.m (18 Ft. Lbs.) |
- |
| - |
Engine Wire Harness Bolts |
11 N.m (8 Ft. Lbs.) |
- |
| - |

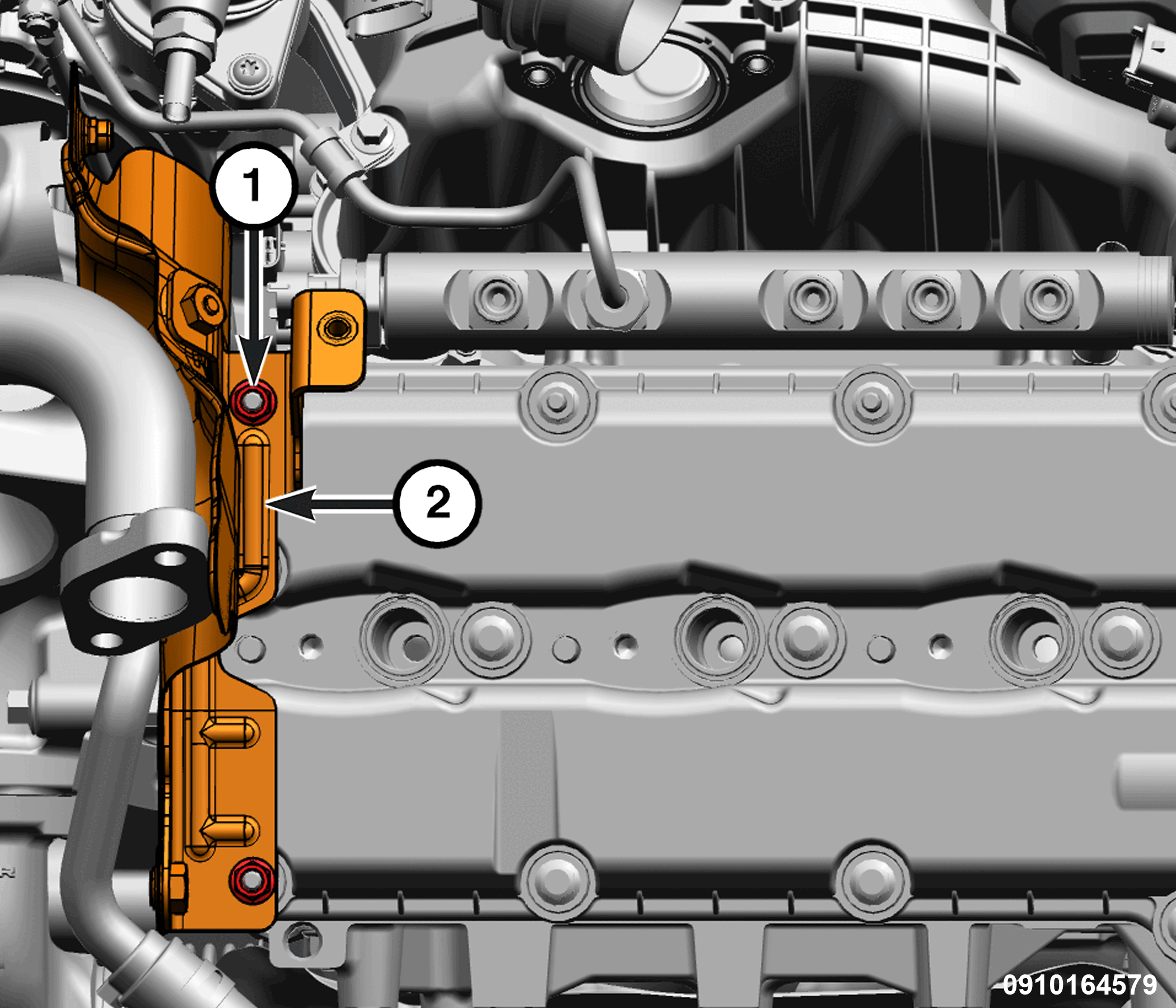

Heat Shield Bracket Nuts |
6 N.m 53 (In. Lbs.) |
 Courtesy of CHRYSLER GROUP, LLC
|
