Cooling System - 3.0L Diesel

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

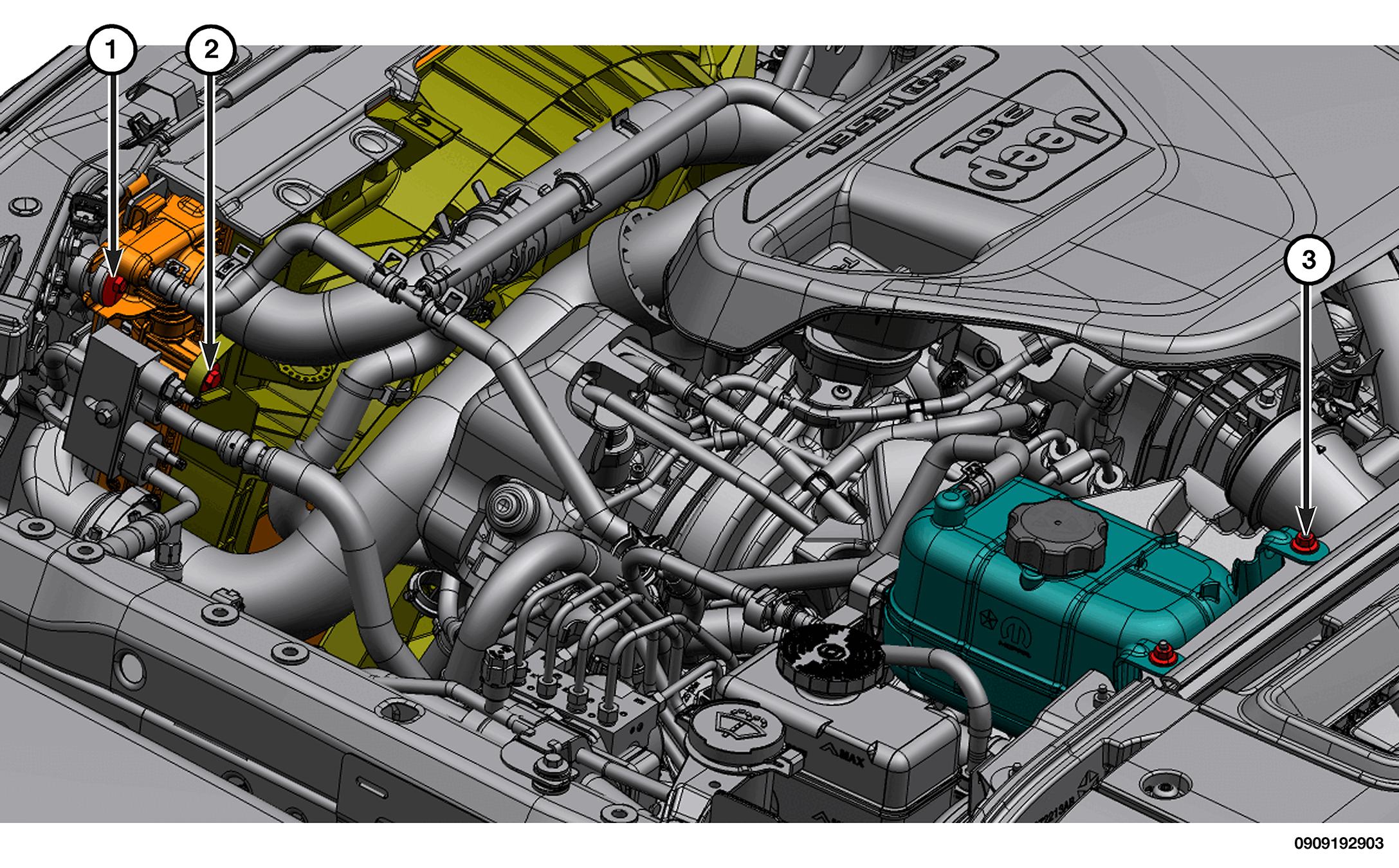

TORQUE SPECIFICATIONS - COOLING SYSTEM - 3.0L DIESEL (1 OF 3)

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Engine Radiator Bolts	11 N.m (8 Ft. Lbs.)	-
2	Cooling Fan Bolts	8 N.m (71 In. Lbs.)	-
3	Pressurized Coolant Bottle Nuts	10 N.m (89 In. Lbs.)	-
-	Pressurized Coolant Bottle Bolt	5 N.m (44 In. Lbs.)	-

Courtesy of CHRYSLER GROUP, LLC

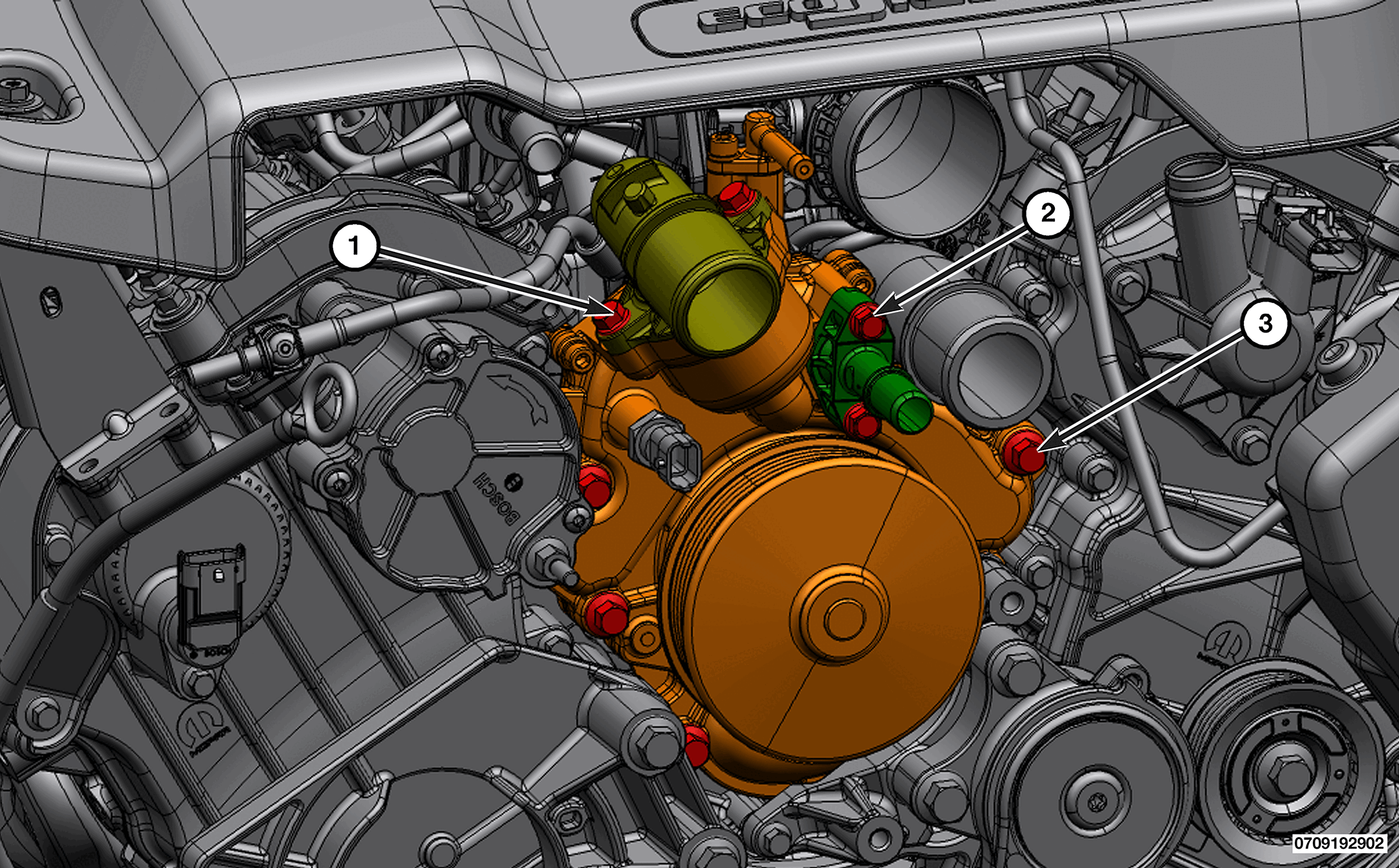

TORQUE SPECIFICATIONS - COOLING SYSTEM - 3.0L DIESEL (1 OF 3)

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Thermostat Housing Bolts	11 N.m (8 Ft. Lbs.)	-
2	Coolant Inlet Tube Bolts	11 N.m (8 Ft. Lbs.)	-
3	Water Pump Bolts	Torque Procedure: Tighten in a crisscross pattern to 25 N.m (18 Ft. Lbs.) Loosen bolts one at a time 90° and then tighten to 32 N.m (24 Ft. Lbs.).	-
-	Block Heater	12 N.m (9 Ft. Lbs.)	-

Courtesy of CHRYSLER GROUP, LLC

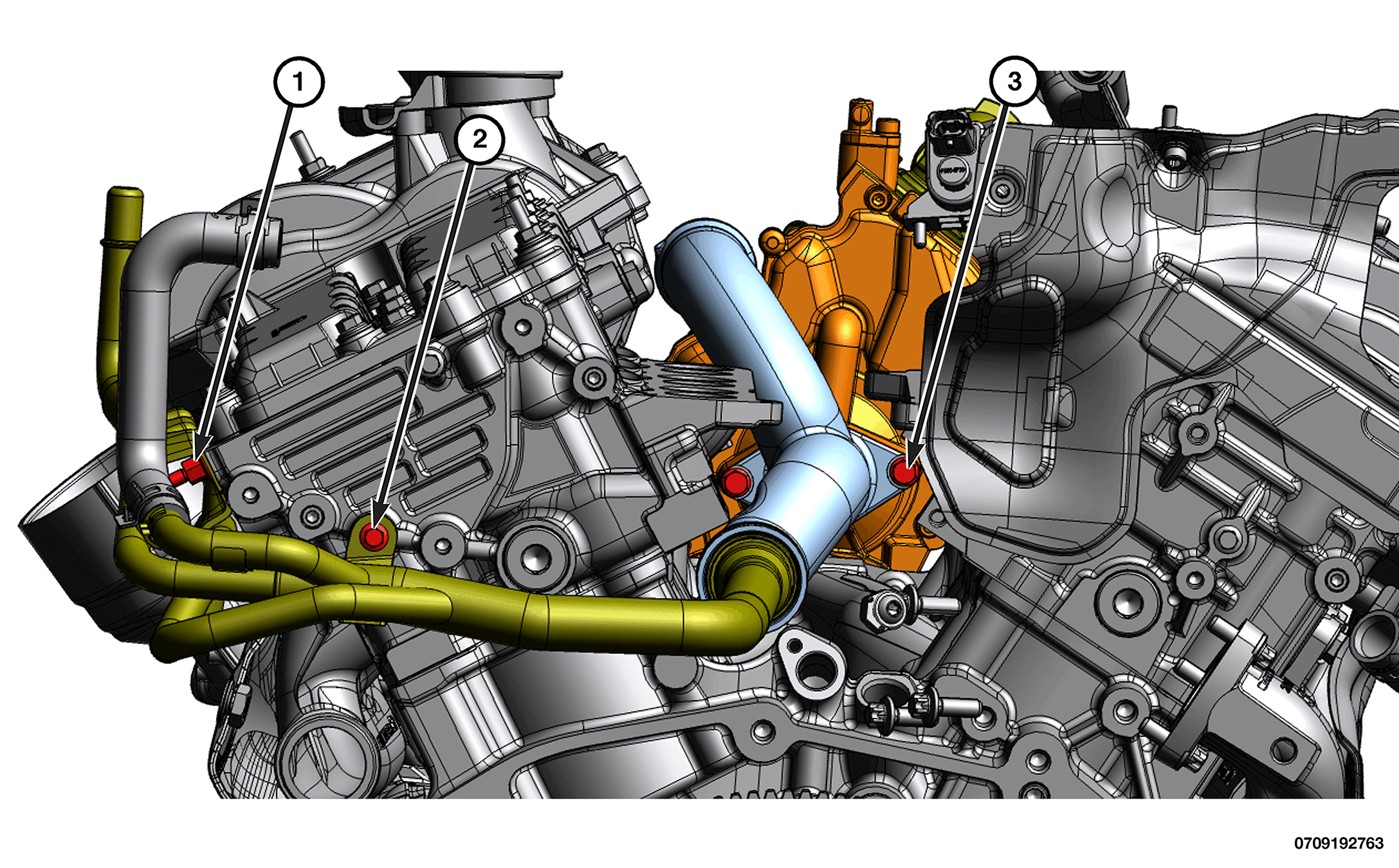

TORQUE SPECIFICATIONS - COOLING SYSTEM - 3.0L DIESEL (1 OF 3)

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1, 2	Coolant Tube Bolts	25 N.m (18 Ft. Lbs.)	-
3	Water Pump Inlet Tube Bolts	11 N.m (8 Ft. Lbs.)	-
