Removal And Installation: Shifter

REMOVAL

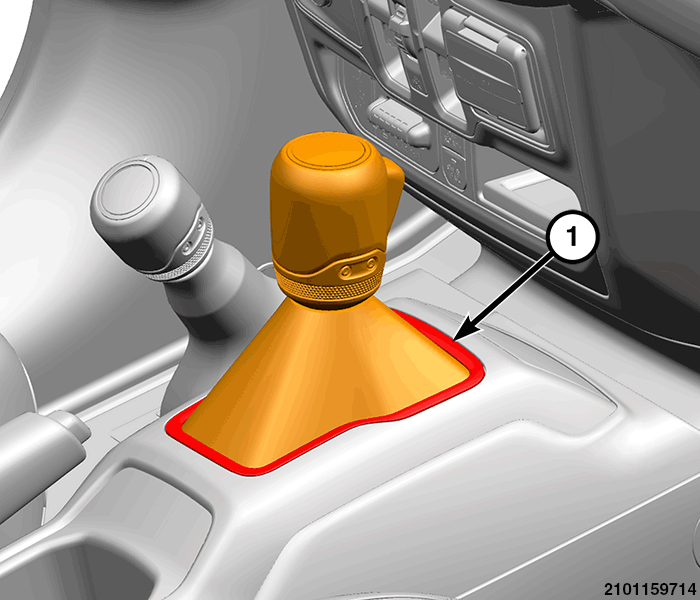

Courtesy of CHRYSLER GROUP, LLC

1. Using a plastic trim tool, carefully pry upward on the shifter boot while gently pulling upward on the fabric to release it.
   NOTE:

   Be careful not to damage the trim or boot.

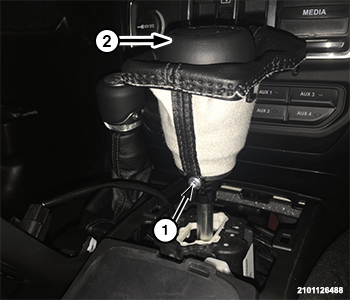

   Courtesy of CHRYSLER GROUP, LLC

   1 - Shifter Knob Bolt

2. Remove the shifter knob bolt and remove the shifter knob.
3. Remove any necessary console parts for access to the Shift Lever Assembly (SLA). Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION and/or CONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .

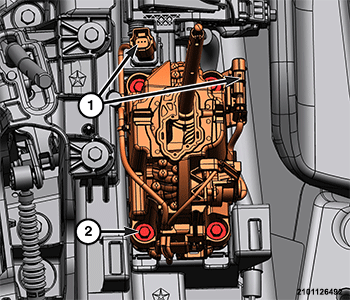

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connectors

   2 - Shifter Bolts

4. Disconnect the wire harness connectors from the SLA.
5. Remove the shifter bolts.
6. Remove the SLA from the vehicle.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

TORQUE SPECIFICATIONS
