8HP75 - Disassembly

WARNING: This page is about a different variant/trim than selected.

DISASSEMBLY

CAUTION:

The Transmission Control Module (TCM), or Transmission Control Module Assembly (TCMA) is extremely sensitive to Electrostatic Discharge (ESD). Always use a ground strap and follow the ESD guidelines in ELECTROSTATIC DISCHARGE SENSITIVE DEVICES. Failure to follow these instructions may result in damage to the TCM/TCMA.

NOTE:

If the transmission is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the TCM Adaptation Procedure. Refer to MODULE, TRANSMISSION CONTROL (TCM), MODULE PROGRAMMING .

NOTE:

Tag all clutch pack assemblies as they are removed, for reassembly identification.

Courtesy of CHRYSLER GROUP, LLC

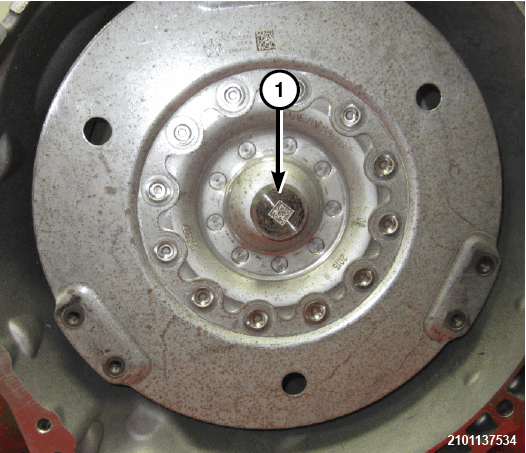

1 - Torque Converter

Remove the torque converter.

Courtesy of CHRYSLER GROUP, LLC

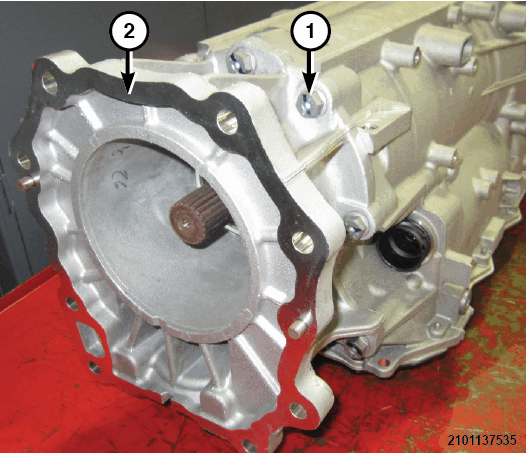

1 - Extension Housing Bolts

2 - Extension Housing

NOTE:
4X4 Only.
If equipped, remove the transmission housing extension housing bolts and remove the extension housing.

Courtesy of CHRYSLER GROUP, LLC

1 - Output Shaft Seal

NOTE:
4X4 Only.
Remove the transmission output shaft seal with a suitable slide hammer and screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Output Shaft Snap Ring

NOTE:
4X4 Only.

Remove the output shaft snap ring.

Courtesy of CHRYSLER GROUP, LLC

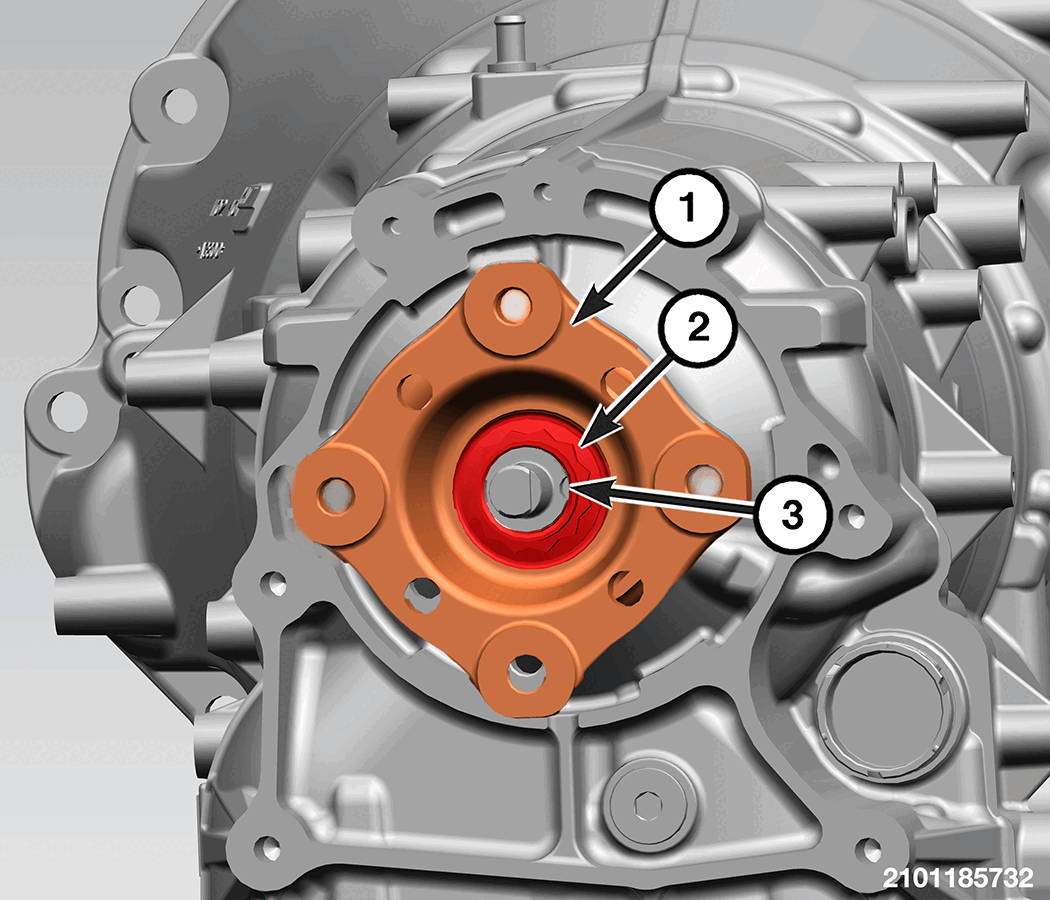

1 - Transmission Output Flange

2 - Transmission Output Flange Nut

3 - Transmission Output Flange Nut Stake

NOTE:

2WD Only.

Remove the output shaft flange locknut staking.
Using a flange holder (special tool #C-3281, Holder, Flange), remove the output shaft flange nut.
Remove the output shaft flange and output shaft seal.

Courtesy of CHRYSLER GROUP, LLC

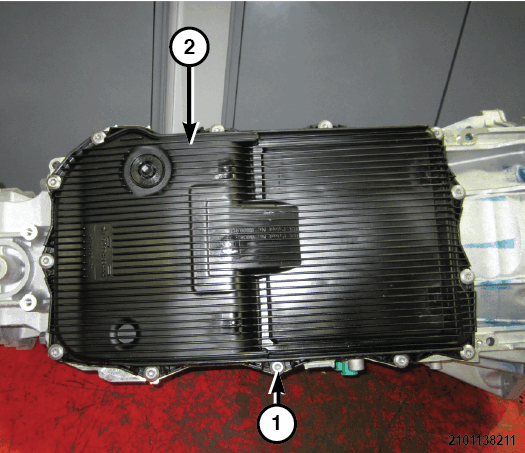

1 - Transmission Oil Pan Bolts

2 - Transmission Oil Pan
Remove the transmission oil pan bolts.
NOTE:
Inspect the gasket for reuse. If the seal is cut or torn, replace the gasket.

Carefully remove the transmission oil pan and gasket.

Courtesy of CHRYSLER GROUP, LLC

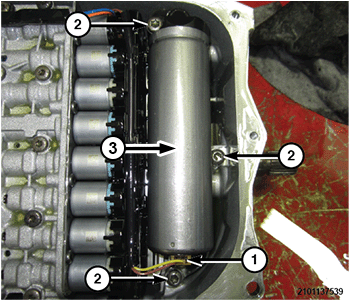

1 - Hydraulic Impulse Solenoid (HIS) Wire Harness Connector

2 - Hydraulic Impulse Solenoid (HIS) Bolts

If equipped, disconnect the Hydraulic Impulse Solenoid (HIS) connector.
If equipped, remove bolts and the HIS accumulator.

Courtesy of CHRYSLER GROUP, LLC

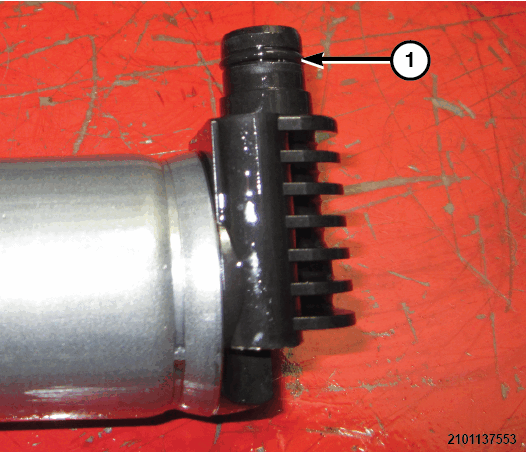

1 - Hydraulic Impulse Solenoid (HIS) Seal

Verify the seal on the input end of the HIS is not torn or cut. Replace the seal if it looks worn or damaged.

Courtesy of CHRYSLER GROUP, LLC

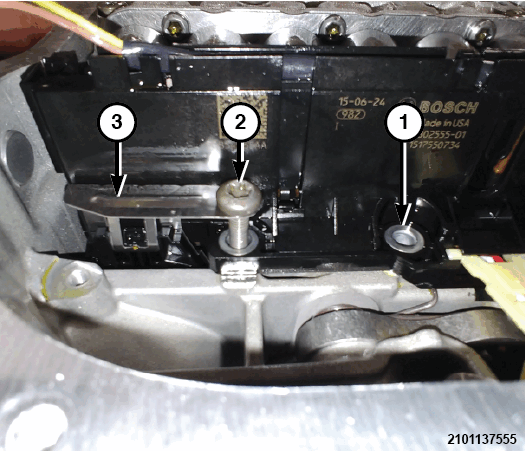

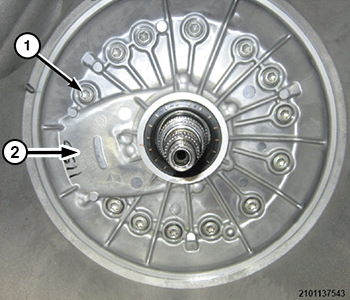

1 - Valve Body End Bolt

2 - Electrical Connector Lock Bolt

3 - Electrical Connector Lock

Remove the valve body end bolt.
Remove the electrical connector lock bolt.
Lift the electrical connector lock to release the internal harness end from inside the transmission for valve body removal.

Courtesy of CHRYSLER GROUP, LLC

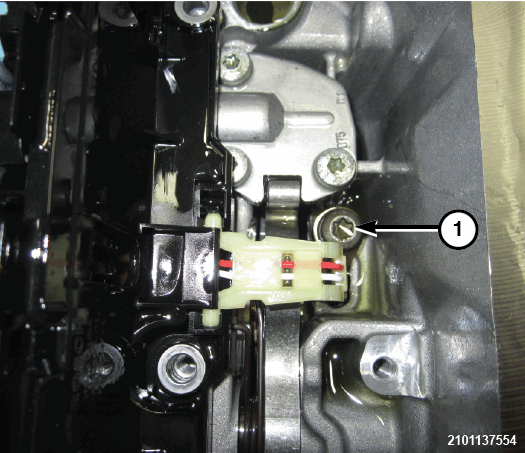

1 - Output Speed Sensor Bolt
Remove the Output Speed Sensor (OSS) bolt and gently lift the output speed sensor out from the case.

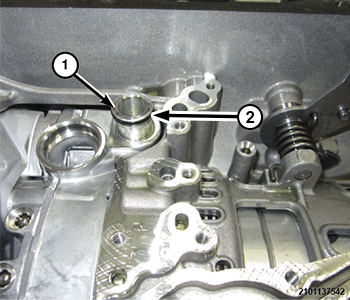

Courtesy of CHRYSLER GROUP, LLC

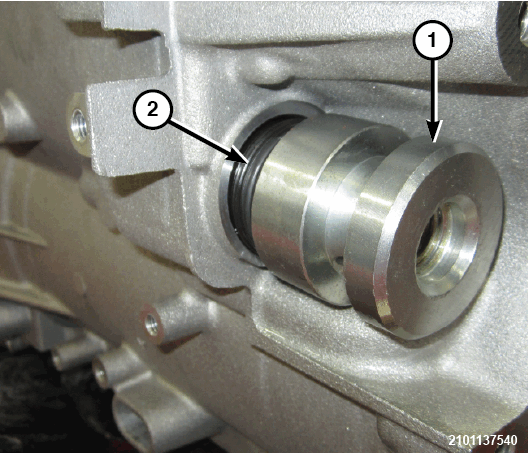

1 - Remover/Installer, Guide Sleeve

2 - Electrical Harness Guide Sleeve
Using (special tool #10377, Remover/Installer, Guide Sleeve), carefully pull the electrical harness guide sleeve straight out from the transmission case.

Courtesy of CHRYSLER GROUP, LLC

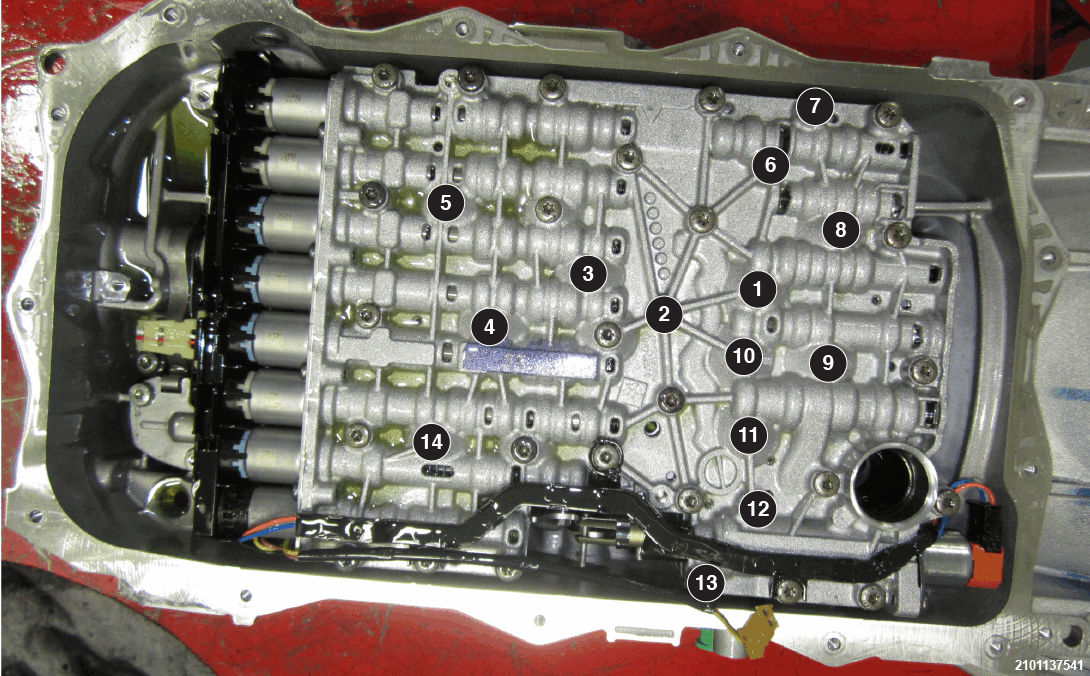

1-14 - Valve Body Bolt Removal Sequence
Remove the valve body bolts in the sequence shown in illustration and remove the valve body.

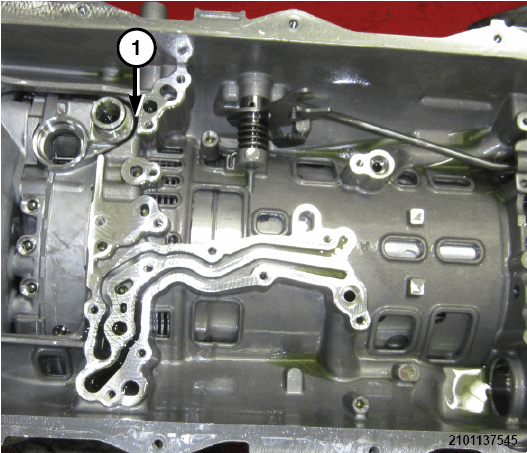

Courtesy of CHRYSLER GROUP, LLC

1 - Fluid Transfer Port
Remove the fluid transfer port from the transmission or valve body assembly (the transfer port may stick in the valve body during removal).
Inspect the fluid transfer port O-rings for damage or wear and replace as necessary.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Oil Pump Assembly to Case Bolts
Remove and DISCARD the transmission oil pump assembly to case bolts.

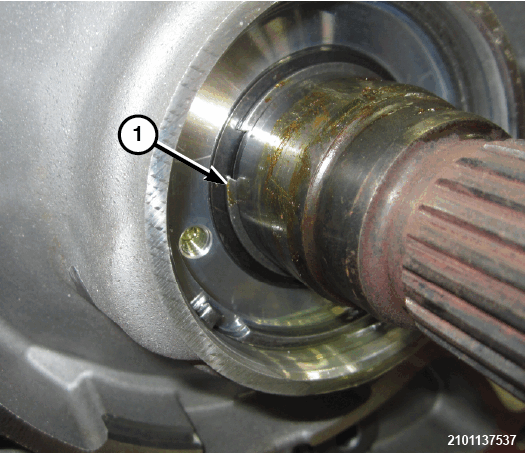

Courtesy of CHRYSLER GROUP, LLC

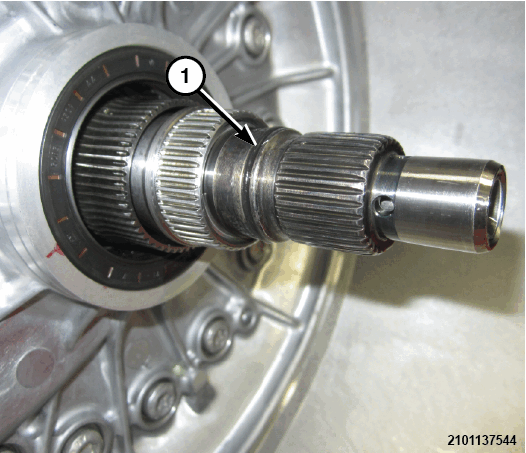

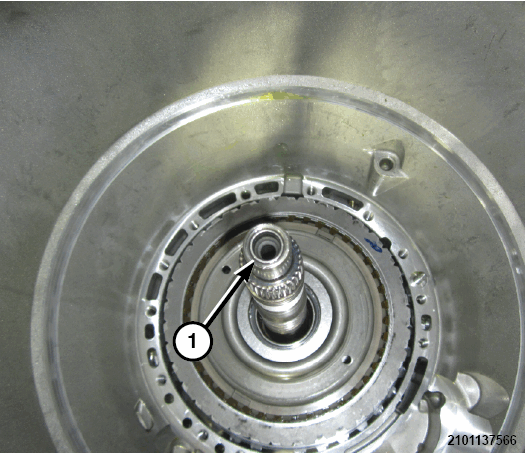

1 - Input Shaft O-Ring

NOTE:
Remove the input shaft O-ring before the oil pump is removed.
Remove the input shaft O-ring using a small pick or equivalent.

Courtesy of CHRYSLER GROUP, LLC

1 - Transmission Oil Pump Assembly
Carefully pry the oil pump housing away from the case with a small flat blade screwdriver or equivalent through the case opening.
From the front of the transmission, remove the oil pump housing.

Courtesy of CHRYSLER GROUP, LLC

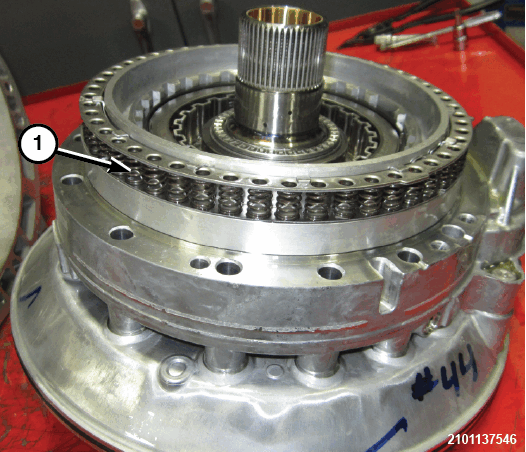

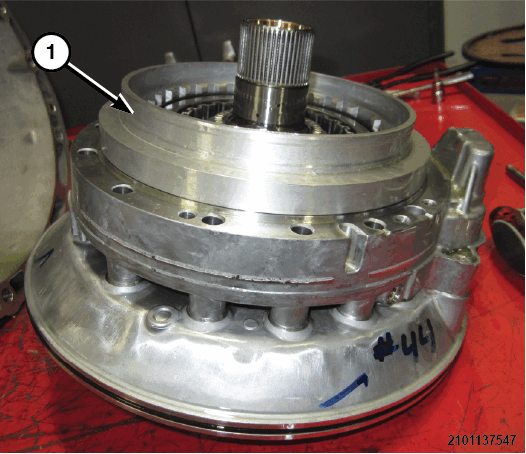

1 - Clutch B Damper Spring
Remove the Clutch B damper spring.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch B Piston
Remove the Clutch B piston from the assembly.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch B Piston Seal
Check the Clutch B piston seal for damage or wear and replace if necessary.

Courtesy of CHRYSLER GROUP, LLC

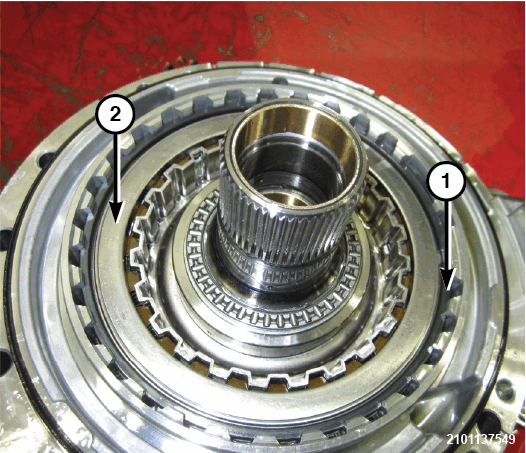

1 - Snap Ring

2 - Clutch A Discs and Plates
Remove the snap ring.
Remove the Clutch A disks and plates.

Courtesy of CHRYSLER GROUP, LLC

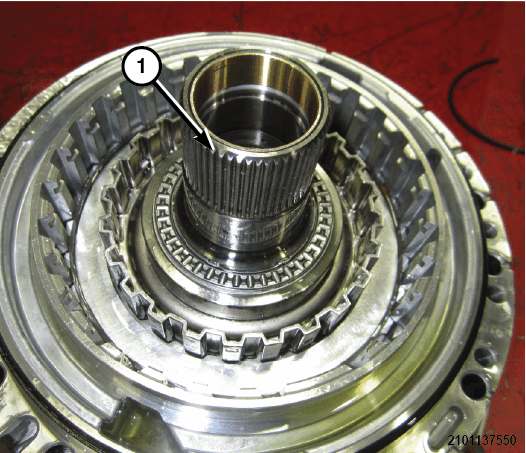

1 - Hub

Remove the hub.

Courtesy of CHRYSLER GROUP, LLC

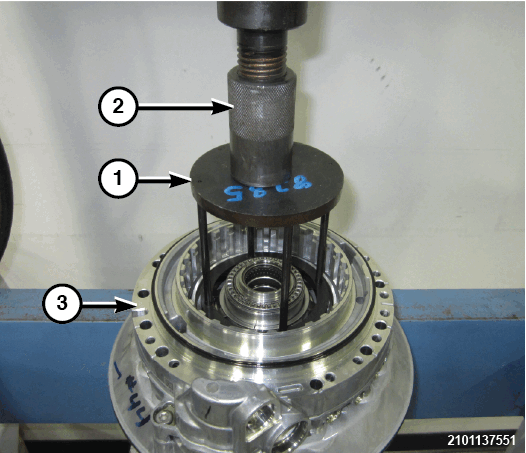

1 - Spring Compressor Tool

2 - Arbor Press

3 - Transmission Oil Pump Assembly

Position the oil pump housing assembly in a suitable arbor press.
Using (special tool #8285, Compressor, Spring), press on the fingers of the piston retaining ring to remove tension.

Courtesy of CHRYSLER GROUP, LLC

1 - Retaining Ring
Remove the two halves of the retaining ring.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch A Belleville Spring
Remove the Clutch A belleville spring.

Courtesy of CHRYSLER GROUP, LLC

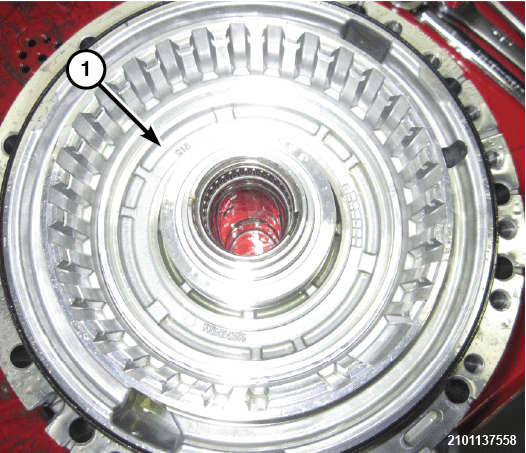

1 - Clutch A Piston
Remove the Clutch A piston (1) by rotating and gently lifting.

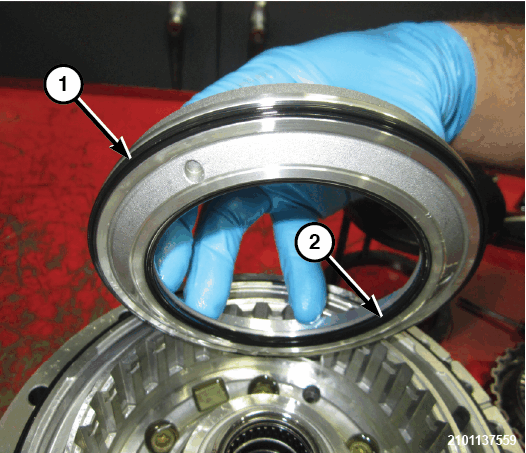

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch A Piston Outer Seal

2 - Clutch A Piston Inner Seal

Inspect the inner and outer piston seals for wear or damage and replace as necessary.

Courtesy of CHRYSLER GROUP, LLC

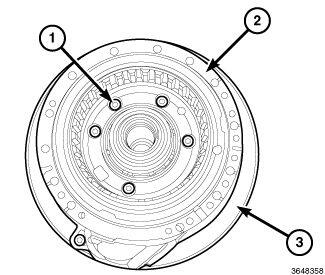

1 - Transmission Oil Pump Housing to Cover Bolts

2 - Transmission Oil Pump Housing

3 -Transmission Oil Pump Front Cover

Remove the transmission oil pump housing to cover bolts and separate the transmission oil pump housing from the transmission oil pump front cover.

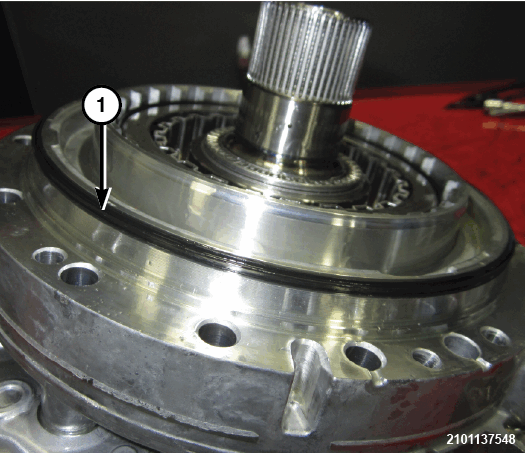

Courtesy of CHRYSLER GROUP, LLC

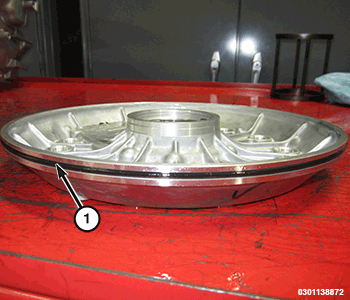

1 - Oil Pump Front Cover O-Ring Seal

Remove and DISCARD the oil pump housing O-ring seal.

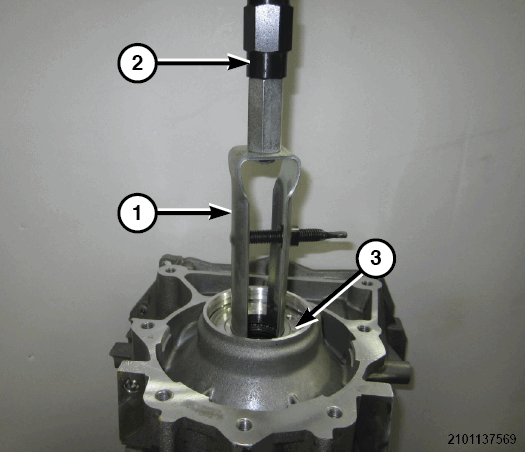

Courtesy of CHRYSLER GROUP, LLC

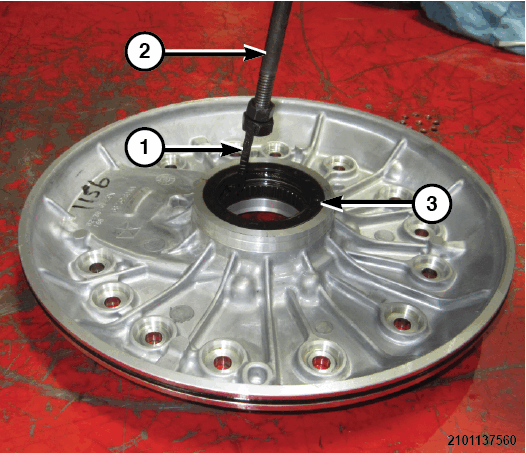

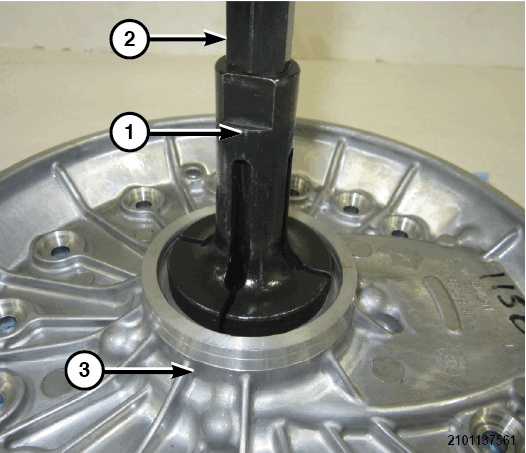

1 - Seal Remover

2 - Slide Hammer

3 - Front Pump Cover Oil Seal

Using (special tool #9667, Remover, Seal) and (special tool #C-3752, Slide Hammers), remove the oil seal from the front pump cover.

Remove the snap ring.

Courtesy of CHRYSLER GROUP, LLC

1 - Bearing Cup Remover

2 - Slide Hammer

3 - Front Pump Cover

Using (special tool #6787A, Remover, Bearing Cup) and (special tool #C-3752, Slide Hammers), remove the needle bearing from the front cover.
Remove the front pump needle bearing snap ring.

Using (special tool #9585, Remover, Bearing Cup) and (special tool #C-637, Slide Hammer, Universal) remove the front pump needle bearing.

Courtesy of CHRYSLER GROUP, LLC

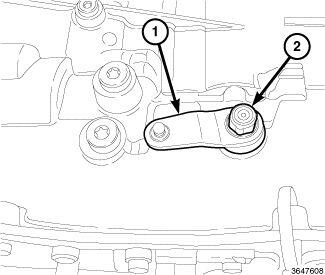

1 - Manual Park Release (MPR) Lever

2 - Manual Park Release (MPR) Lever Retaining Nut

Remove the Manual Park Release (MPR) lever retaining nut and remove the lever.

Courtesy of CHRYSLER GROUP, LLC

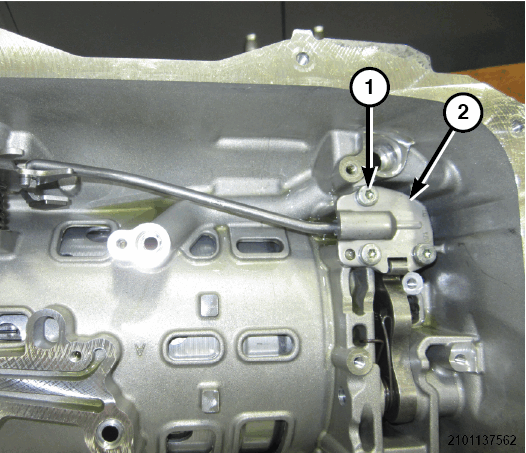

1 - Park Pawl Lock Rod Guide Plate Retaining Bolts

2 - Park Pawl Lock Rod Guide Plate

Remove the three park pawl lock rod guide plate retaining bolts and remove the plate.

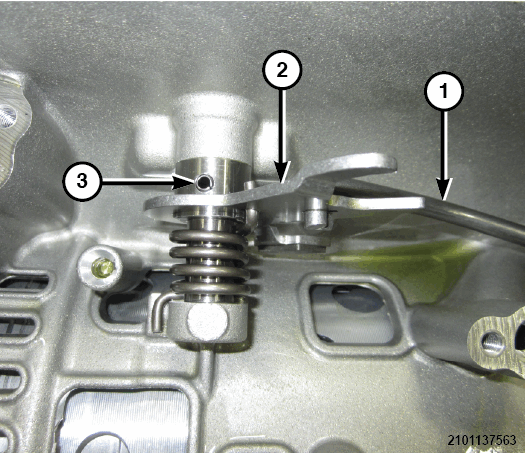

Courtesy of CHRYSLER GROUP, LLC

1 - Park Pawl Lock Rod

2 - Fork

3 - Roll Pin

Remove the park pawl lock rod from the fork.
NOTE:
Pay attention to the spring position for installation.
Remove the roll pin from the MPR shaft using a suitable pin punch.
Remove the MPR shaft, spring and lever assembly from the case.
Remove the selector shaft seal using a small screwdriver or equivalent.

Courtesy of CHRYSLER GROUP, LLC

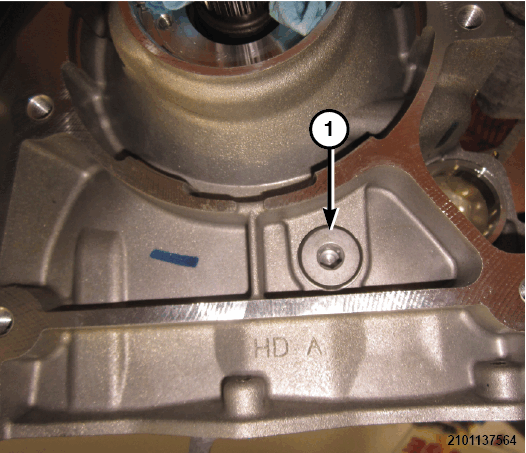

1 - Park Pawl Shaft Plug
Remove the park pawl shaft plug from the rear of the case.

Courtesy of CHRYSLER GROUP, LLC

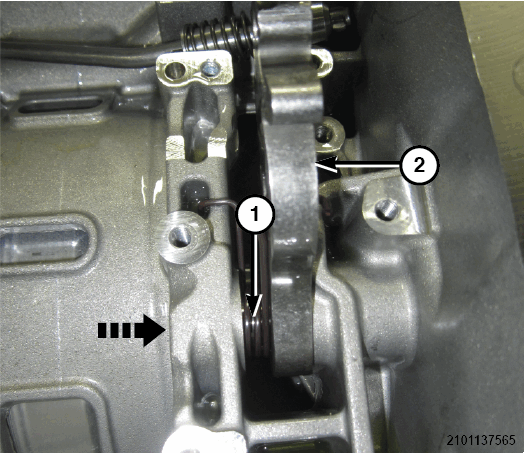

1 - Park Pawl Spring

2 - Park Pawl

NOTE:
Pay attention to the spring position for installation.
Remove the park pawl shaft using a suitable pin punch (Notation arrow for location and drive-out direction), remove the park pawl and spring.

Courtesy of CHRYSLER GROUP, LLC

1 - Input/Output Shaft and P4 Annulus Drum Assembly

NOTE:
The transmission must be in a vertical position before the main stack is removed, so damage to the drums do not occur.
Remove the input/output shaft and P4 annulus drum assembly from the case.

Courtesy of CHRYSLER GROUP, LLC

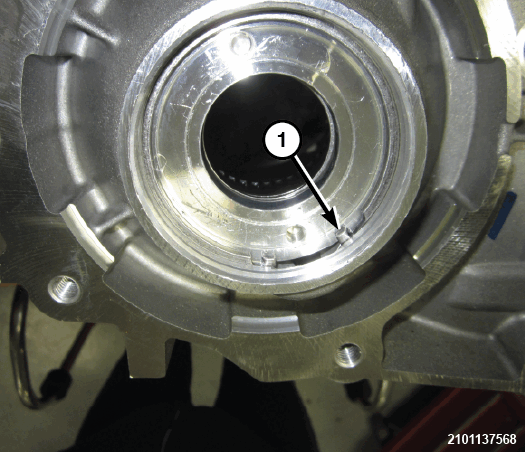

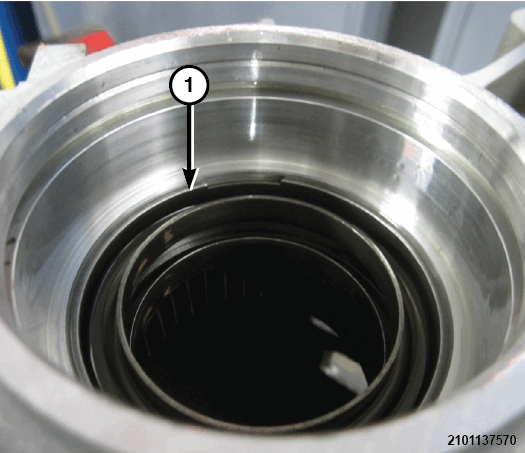

1 - Outer Bearing Cup Snap Ring

Remove the outer bearing cup snap ring.

Courtesy of CHRYSLER GROUP, LLC

1 - Bearing Cup Remover,

2 - Slide Hammer

3 - Outer Bearing Cup

NOTE:

4X4 shown in illustration, 2WD similar.

Using (special tool #9664, Remover, Bearing Cup) and (special tool #C-637, Slide Hammer, Universal), remove the outer bearing cup.

Courtesy of CHRYSLER GROUP, LLC

1 - Output Shaft Oil Dam Snap Ring

Remove the output shaft oil dam snap ring.

Courtesy of CHRYSLER GROUP, LLC

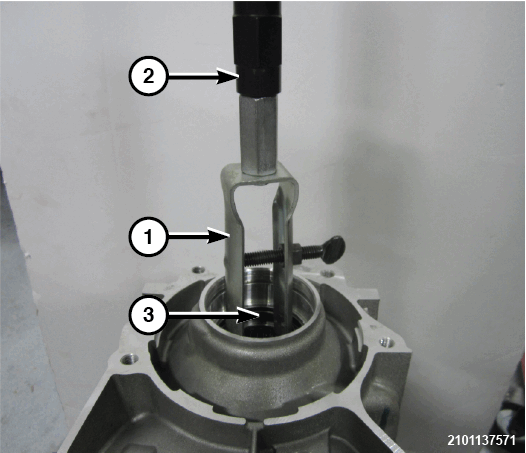

1 - Bearing Cup Remover

2 - Slide Hammer

3 - Output Shaft Oil Dam

Using (special tool #9664, Remover, Bearing Cup) and (special tool #C-637, Slide Hammer, Universal), remove the output shaft oil dam.

Courtesy of CHRYSLER GROUP, LLC

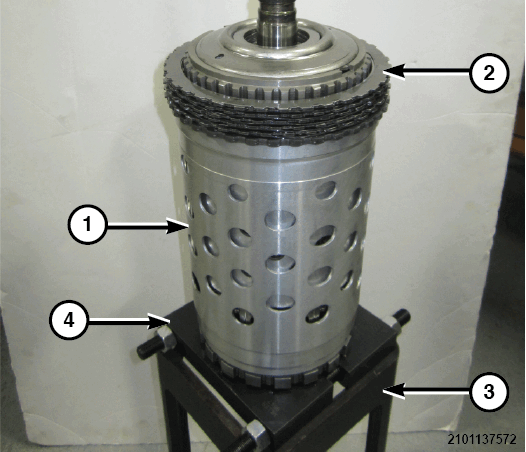

1 - Input/Output Shaft and P4 Annulus Drum Assembly

2 - Clutch B Discs and Plates

3 - Press Fixture Assembly

4 - Bearing/Gear Splitter

Position the input/output shaft and P4 annulus drum assembly on (special tool #8925-3, Assembly, Press Fixture) and (special tool #1130, Splitter, Bearing/Gear).
Remove the Clutch B discs and plates.

Courtesy of CHRYSLER GROUP, LLC

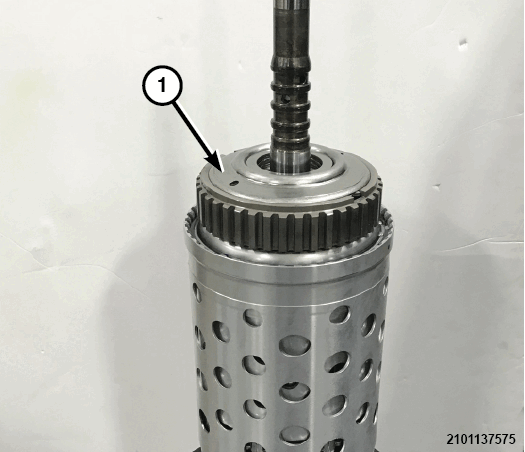

1 - P1 Annulus/Clutch B Hub Assembly
Remove the O-ring and five squared O-rings from the input shaft.

Remove the P1 annulus/Clutch B hub assembly from the P4 annulus drum.

Courtesy of CHRYSLER GROUP, LLC

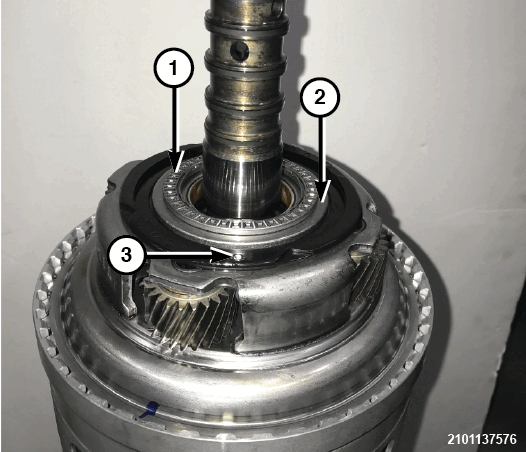

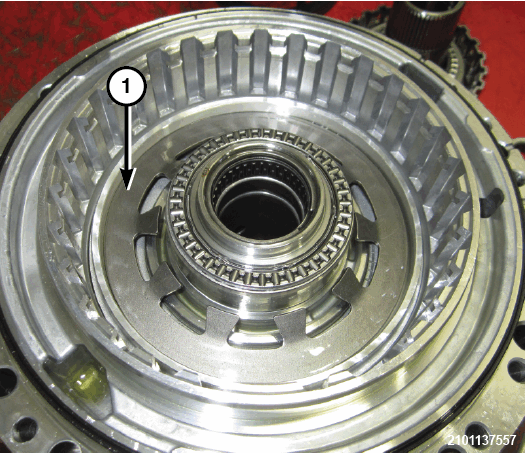

1 - Thrust Bearing

2 - Holding Plate

3 - Selectable Shim

Remove the selectable shim from the P1 annulus/Clutch B hub.
Remove the thrust bearing and holding plate from the P1 planetary carrier.

Courtesy of CHRYSLER GROUP, LLC

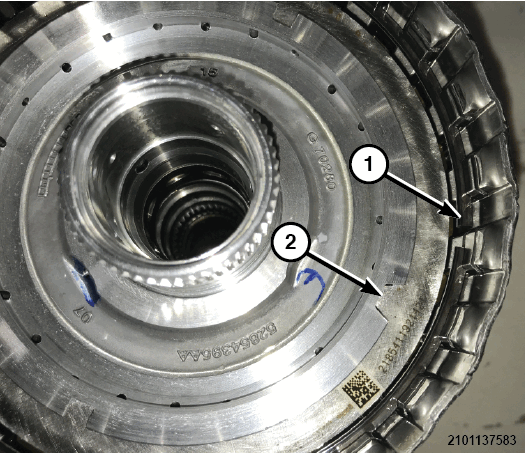

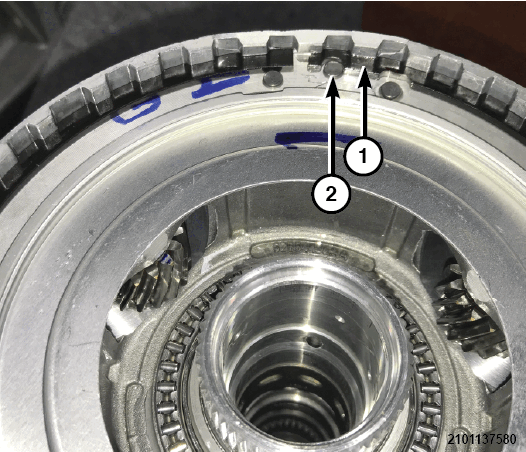

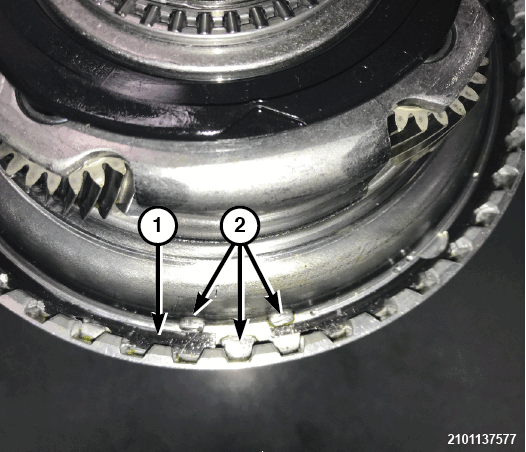

1 - Snap Ring

2 - Snap Ring Openings

NOTE:
The (special tool #10378, Rings, Support) are three pieces intended to be used in multiple locations around the drum to prevent damage from prying.
Position the (special tool #10378, Rings, Support) on the P4 annulus drum assembly to protect the drum.
NOTE:
Pry the snap ring from the opposite side of the snap ring openings to release.

NOTE:
When the snap ring is removed the internal clutch drum may drop slightly.
Using a suitable tool release the snap ring by prying in and up from the opposite side of the snap ring openings.
Remove the P1 planetary carrier.

Courtesy of CHRYSLER GROUP, LLC

1 - P2 Planetary Carrier

2 - Thrust Bearing and Washer
Remove the input shaft with P2 planetary carrier from the drum assembly.

Remove the thrust bearing and washer.

Courtesy of CHRYSLER GROUP, LLC

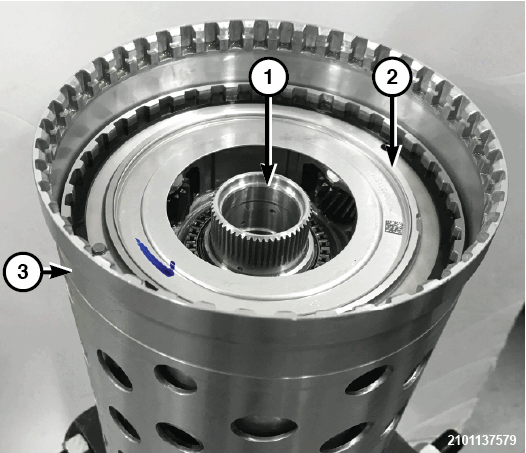

1 - P2 Annulus/P3 Sun Gear

2 - Clutch D Drum

3 - P4 Annulus Drum

Remove the P2 annulus/P3 sun gear from the P4 annulus drum assembly.
Remove the Clutch D drum from the P4 annulus drum.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring

2 - P3 Planetary Carrier

NOTE:
The (special tool #10378, Rings, Support) are three pieces intended to be used in multiple locations around the drum to prevent damage from prying.
Position the (special tool #10378, Rings, Support) on the P4 annulus drum assembly to protect the drum.
Using a suitable tool, release and remove the snap ring holding down the P3 Planetary Carrier.

Courtesy of CHRYSLER GROUP, LLC

1 - P3 Planetary Carrier
Remove the P3 planetary carrier.
Remove the thrust bearing from the P3 planetary carrier.

Courtesy of CHRYSLER GROUP, LLC

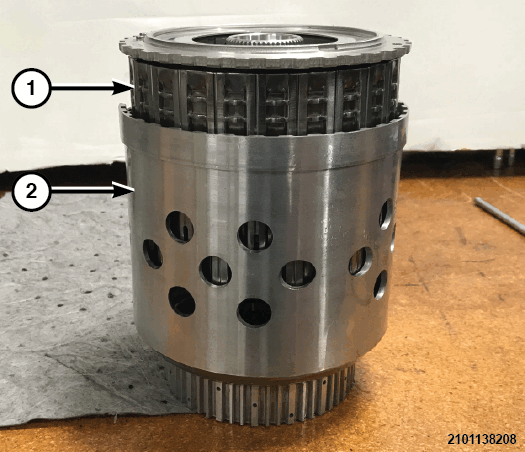

1 - P4 Sun Gear/Clutch C/E Retainer

2 - Clutch D Drum
Remove the P4 sun gear/Clutch C/E retainer from the Clutch D drum.

Courtesy of CHRYSLER GROUP, LLC

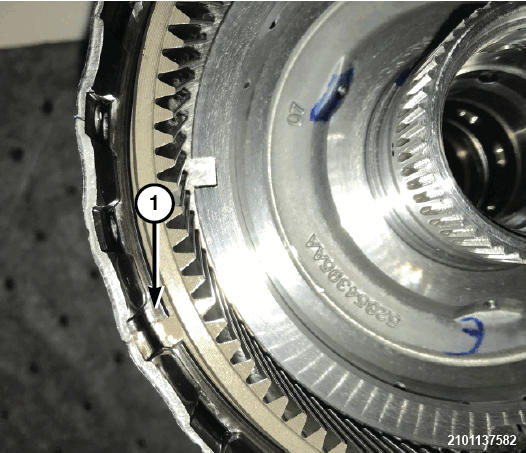

1 - Snap Ring
Remove the snap ring from the P4 sun gear/Clutch C/E retainer and remove the annulus ring.

Courtesy of CHRYSLER GROUP, LLC

1 - Snap Ring

2 - Clutch E
Remove the snap ring (1) from the P4 sun gear/Clutch C/E retainer.
Remove Clutch E (2) from the P4 sun gear/Clutch C/E retainer.
Remove the thrust bearing from Clutch E (2).
NOTE:
Thrust bearing may stick to sun gear upon removal.

Courtesy of CHRYSLER GROUP, LLC

1 - Clutch C

NOTE:
Clutch E and Clutch C are similar. The Clutch C hub is removable and has six friction plates.
Remove Clutch C from the P4 sun gear/Clutch C/E retainer.
Remove the bearings from the top and bottom of Clutch C.

Courtesy of CHRYSLER GROUP, LLC

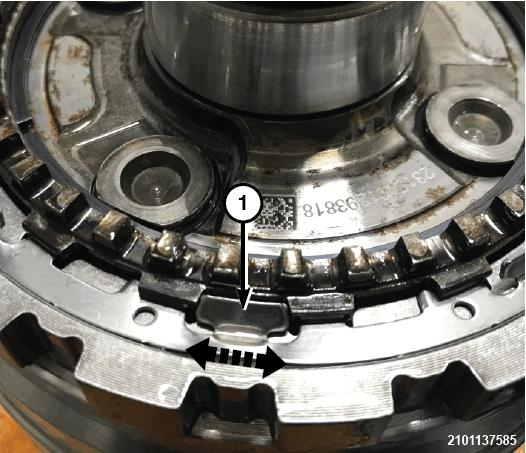

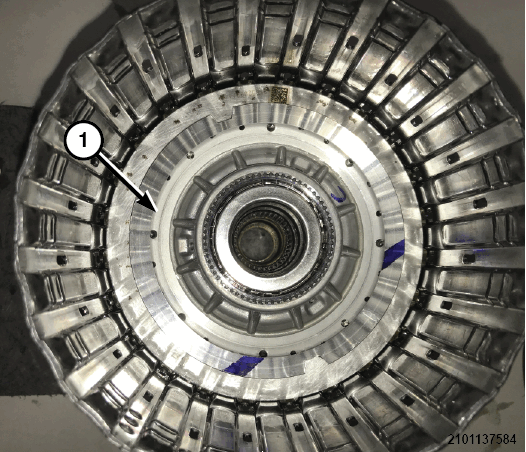

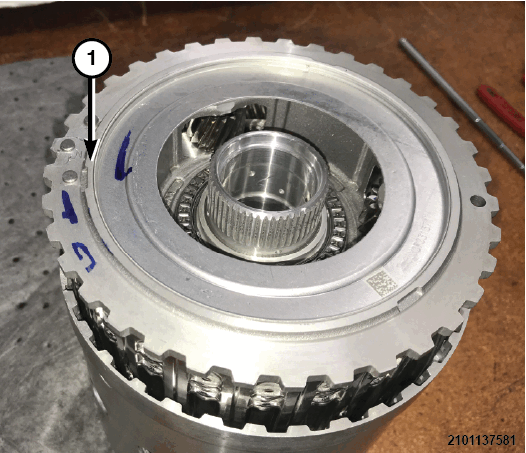

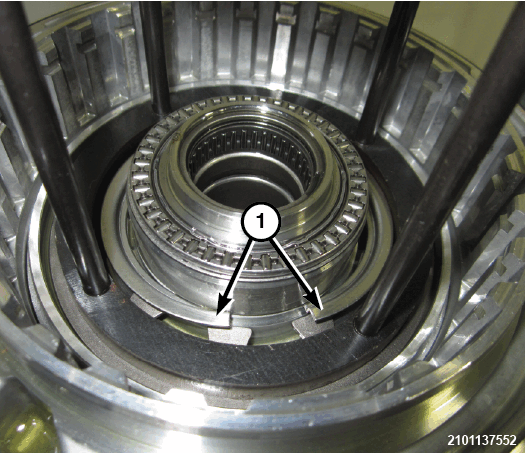

1 - P4 Planetary Carrier/Output Shaft Lock Ring
Remove the P4 planetary carrier/output shaft lock ring from the P4 annulus drum by gently prying the locking tabs open and turning the lock ring to center the locating tabs in the output shaft tab openings. DISCARD the lock ring and install a NEW lock ring during assembly.

Courtesy of CHRYSLER GROUP, LLC

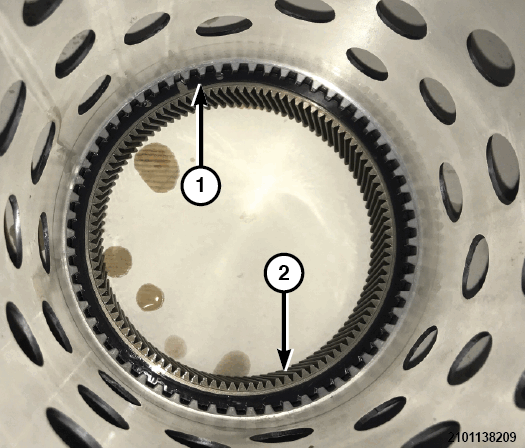

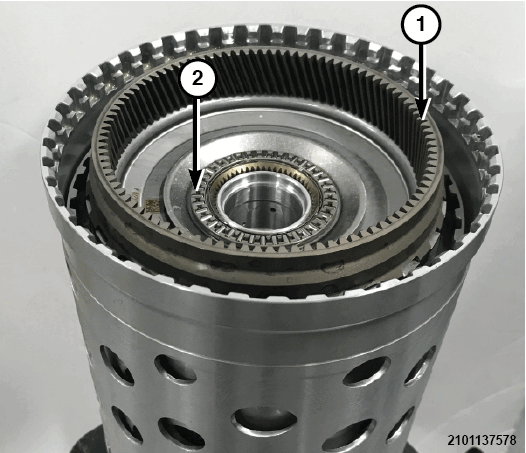

1 - Snap Ring

2 - P4 Annulus
Remove the snap ring from the P4 annulus drum.
Remove the P4 annulus from the P4 annulus drum.

CAUTION:

A unique transmission fluid has been developed for this transmission. This fluid is NOT compatible with ATF+4 or any other current FCA US LLC transmission fluid. For specifics about this unique fluid see CAPACITIES AND RECOMMENDED FLUIDS .

CAUTION:

NOTE:
